Cable

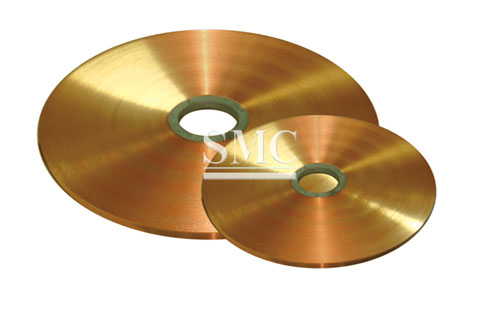

Copolymer Coated Copper Tape for Cable

    Inner diameter: 52mm/58mm/76mm



    Outer diameter: 200mm - 400mm



    Width: ≥10mm

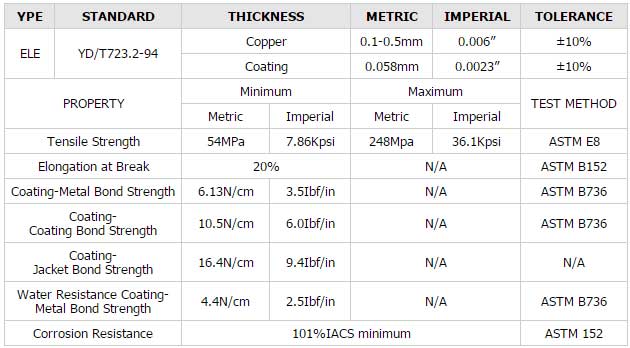

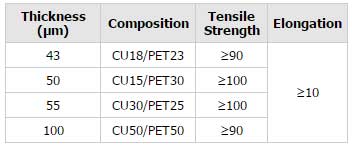

Specifications of Copolymer Coated Copper Tape for Cable:
1) Inner diameter: 52mm/58mm/76mm
2) Outer diameter: 200mm - 400mm
3) Thickness:0.1mm - 0.5mm
4) Width: ≥10 mm
5) Types: Double sided, Single sided
6) Material: Copper foil, PET

7) Color: Natural (copper)




Features of Copolymer Coated Copper Tape:
1) Chemical/moisture barrier
2) Corrosion protection
3) Enhanced short circuit capability
4) Superior bend performance with increased resistance to buckling and kinking
5) Enhanced side wall pressure,crush and impact resistance



Manufacturing of Copolymer Coated Copper Tape

Packaging of Copolymer Coated Copper Tape

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Applications of Copolymer Coated Copper Tape:

1) Shielding

2) Transformers

3) Mobile phones

4) Computers, PDA, PDP

5) LCD monitors

6) Notebook computers

7) Electromagnetic shielding and antistatic


Main equipment for Copper Strip(Copper Tape):

1) Melting Furnace

2) Hot Rolling Mill

3) Milling Line

4) 4 High /6 High Reversing Cold Rolling Mill

5) 12 High /20 High Finish Rolling Mill

6) Pickling Line

7) Degreasing Line

8) Annealing Facility

9) Tension Leveler Line

10) Roll Grinding Machine
