Transformer Components

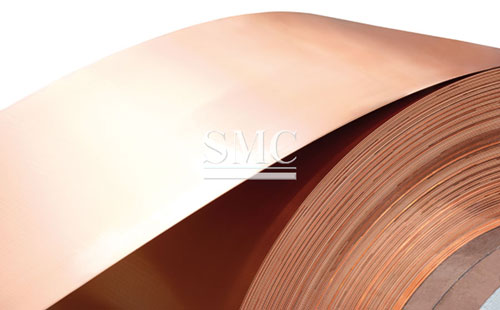

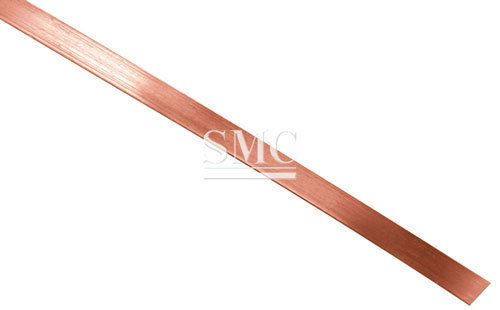

Copper Strip/Tape (Thickness: 0.15mm-3.0mm, C1100, C1220, C1020) for Transformer Components

    Thickness: 0.15mm - 3.0mm



    Normal Size: 3mm*25mm*50m / 3mm*25mm*15m / 6mm*50mm*50m



    Width: 610mm max.

Specifications of Copper Strip (Copper Tape) for Transformer Components:

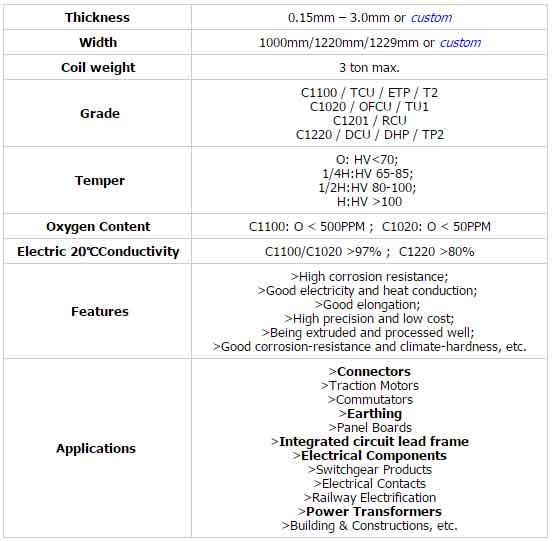

Parameters of Copper Strip (Copper Tape):

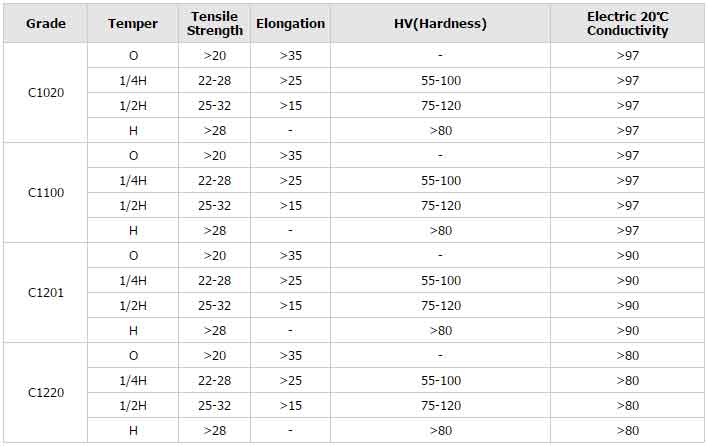

Mechanical Properties:



Manufacturing of Copper Strip (Copper Tape)

Packaging of Copper Strip (Copper Tape)

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Main Equipment for Copper Strip (Copper Tape):

1) Melting furnace

2) Hot rolling mill

3) Milling line

4) 4 High /6 High reversing cold rolling mill

5) 12 High /20 High finish rolling mill

6) Pickling line

7) Degreasing line

8) Annealing facility

9) Tension leveler line

10) Roll grinding machine
