High Carbon, Special Steel

CORTEN Steel, Weathering Steel, Corrosion Resistance Steel

    Thickness: 0.5~200mm


    Width: 50~4800mm


    Length: According to customer's request.

CORTEN Steel, also known as Weathering Steel, Corrosion Resistance Steel or anti-corrosion steel. Weathering steel is made of ordinary carbon steel and a small amount of corrosion-resistant elements such as copper and nickel. It has the toughness and plasticity of high-quality steel. Characteristics such as extension, molding, welding, abrasion, high temperature and fatigue resistance; weather resistance is 2~8 times that of ordinary carbon steel, and coating performance is 1.5 to 10 times that of ordinary carbon steel. At the same time, it has the characteristics of rust resistance, anti-corrosion and life extension, thinning and reducing consumption,saving labor and energy. Features by its mix of standard steel and alloys that offer natural corrosion resistance, including metals like copper, nickel and chromium which helps to protect the steel from corrosion.

Shanghai Metal Corporation is a professional manufacturer and supplier of corten steel with high quality & reasonable price. If you want to know more about corten steel products or corten steel price please feel free to contact us, we will reply you within 24 hours.



  •  Thickness: 0.5mm - 200mm

     Width: 1000mm - 4800mm

     Length: as per client request




  • Common grade : corten A, corten B

    ASTM A588 : Gr.A / Gr.B / Gr.K

    BS EN10025-5 : S235J0W, S235J2W, S355J0WP, S355J2WP, S355J0W, S355J2W, S355K2W

    JIS G3114 : SMA400AW/AP, SMA400BW/BP, SMA400CW/CP, SMA490AW/AP, SMA490CW/CP, SMA570W/P

    TBT 1979 :  09CuPCrNi-A, 09CuPCrNi-B, 09CuPTiRE-A, 05CuPCrNI

    GBT 4171:  Q295GNH, Q355GNH, Q235NH, Q415NH, Q460NH, Q500NH, Q550NH

  • - Railway train, dining car, reefer car, etc
    - Air preheater of heat exchanger
    - Container
    - Stamping piece and decoration piece
    - Transportation manufacturing
    - Architectural structure,Sculpture

Chemical component

Grade

chemical composition

%C

%Si

%Mn

%P

%S

%Cr

%Cu

%V

%Ni

A588 Gr.A

0.19max

0.3-0.65

0.8-1.25

0.03max

0.03max

0.4-0.65

0.25-0.4

0.02-0.1

0.4max

A588 Gr.B

0.2max

0.15-0.5

0.75-1.35

0.03max

0.03max

0.4-0.7

0.2-0.4

0.01-0.1

0.5max

CORTEN A

0.12max

0.25-0.75

0.2-0.5

0.07-0.15

0.05max

0.5-1.25

0.25-0.55

-

0.65max

CORTEN B

0.16max

0.3-0.5

0.8-1.25

0.03max

0.03max

0.4-0.65

0.25-0.4

0.02-0.1

0.4max

S355JOWP

0.12max

0.75max

1max

0.06-0.15

0.035max

0.3-1.25

0.25-0.55

N.0.09

0.4max





Mechanical property

Grade

Mechanical property

Yield strength/min

Tensile strength

Elongation. %min

A588 Gr.A

345MPA

485MPA min

20

A588 Gr.B

345MPA

485MPA min

20

CORTEN A

355MPA

470-630MPA

20

CORTEN B

355MPA

470-630MPA

20

S355JOWP

355MPA

510-680MPA

IMPACT0/27J

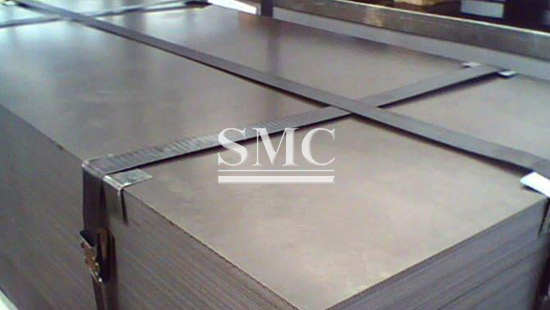

Packaging of CORTEN Steel:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Applications of CORTEN Steel(Weathering Steel,Corrosion Resistance Steel):

- Railway train, dining car, reefer car, etc

- Stamping piece and decoration piece

- Transportation manufacturing

- Tanks

- Architectural roof

- Landscape

- Sculpture

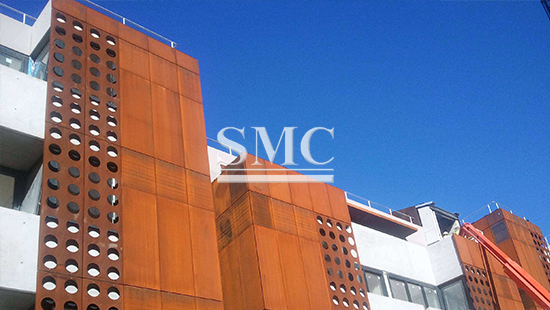

- Facades, wall cladding

- Architectural structure, like bridge, tower, oil derrick, harbor structure, chimneys, tubular bridges
