Stainless Steel Fitting

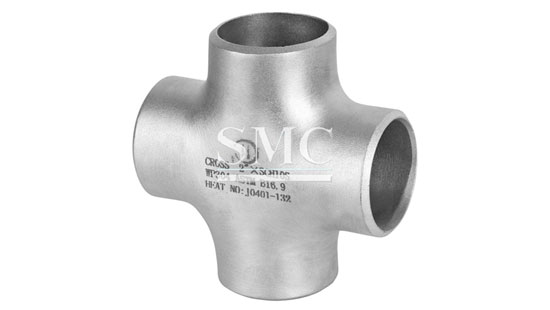

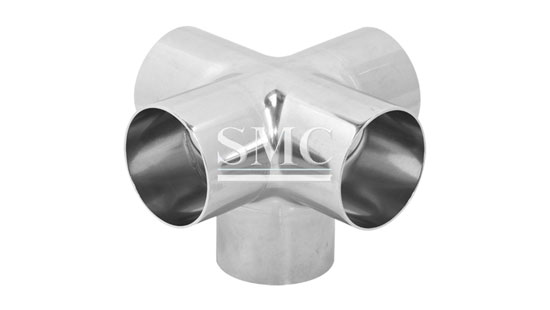

Stainless Steel Butt Welded Cross

    Material: ASTM 304, 304L, 316, 316L, 321, etc.


    Standard: ANSI B16.9, MSS SP 43, DIN 2615, etc

Specification of Straight Cross:


1. Item: Butt Welded Straight Cross
2. Specification: NPS1/2 inch-NPS48 inch
3. OD (D): 21.3 - 1219
4. Center to End (C): 25 -889
5. Center to End (M): 25 - 838
6. Material: ASTM 304, 304L, 316, 316L, 321, etc.
7. Standard: ANSI B16.9, MSS SP 43, DIN 2615, etc.

Specification of Reducing Cross:


1. Item: Butt Welded Reducing Cross
2. Specification: NPS1/2 inch-NPS48 inch
3. OD (D): 26.7 - 1219
4. OD(D1): 21.3 - 1168
5. Center to End (C): 29 - 889
6. Center to End (M): 29 - 838
7. Material: ASTM 304, 304L, 316, 316L, 321, etc.

8. Standard: ANSI B16.9, MSS SP 43, DIN 2615, etc.

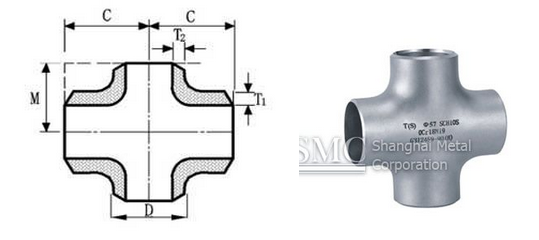

Straight Cross

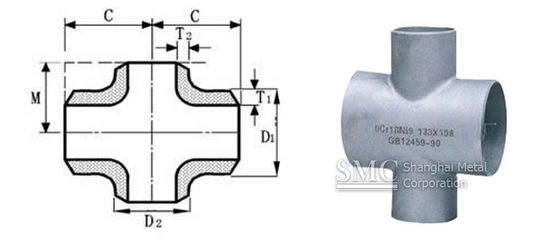

Reducing Cross

Package of Stainless Steel Pipe Fitting:


The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.

Application of Stainless Steel Butt Welded Tee:


Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, Metallurgy
