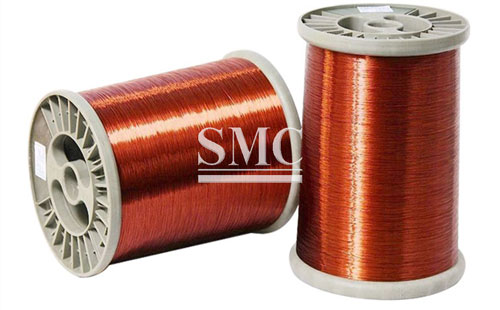

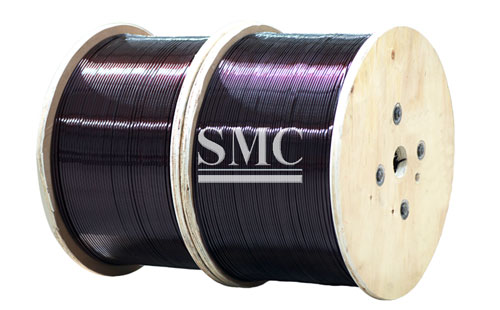

Ultra Fine Rectangular Enameled Copper Wire for Automobile Parts

    Size: 0.050mm - 0.800mm



    Type: 1) Alcohol soluble enamelled flat copper wire

            2) Alcohol soluble enameled copper-clad-aluminum round and flat wire

Specifications of Ultral Fine Rectangular Enameled Copper Wire:
1) Type:
    a) Alcohol soluble enamelled flat copper wire
    b) Alcohol soluble Enameled copper-clad-aluminum round and flat wire
2) Base material: copper, copper clad aluminum
3) Space factor:
   a) Appro*78% Array winding
   b) Appro*91% Array winding
   c) Appro*96% Edgewise winding
4) Structure: Insulating film bonding film, Copper wire
5) Size: 0.050mm - 0.800mm
6) Standard: GB6109.8-89

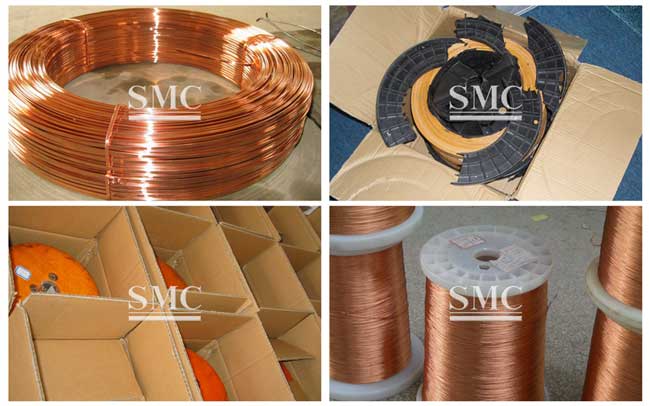

Packaging of Ultral Fine Rectangular Enameled Copper Wire

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Applications of Ultral Fine Rectangular Enameled Copper Wire:

1) Alcohol soluble enamelled flat copper wire

   a) Moving coils

   b) Printer coils

   c) Small Motor

   d) High-class speaker

   e) Special voice coil, etc.

2) Alcohol soluble enameled copper-clad-aluminum round and flat wire

   1) Voice coils

   2) Moving coils

   3) Hollow coils for motors
