Wheel Loader

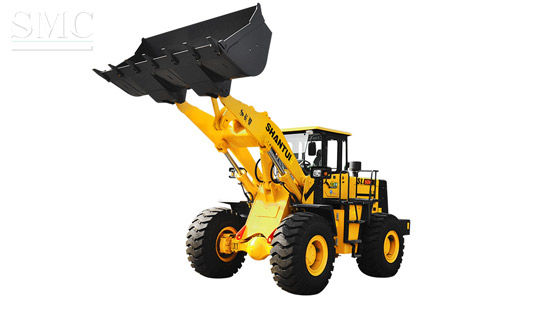

5.0ton Wheel Loader SL50W(N)/SL50W(N)-2



    Model Name: SL50W(N)/SL50W(N)-2



    Model Number: SHANTUI



    Dimension: 8025×3026×3410mm



    Place of Origin: Jiangsu, China (Mainland)

● Weichai new generation Blue Engine II energy-saving engine conformed to China-II emission regulation and reduces the malfunction rate by 30% and saves the

fuel by >10%.

● Shantui’s original twin-turbine torque converter, planetary transmission, and drive axle feature good power matching, high drive efficiency, strong overload capacity,

high quality, and long life.

● It guarantees outstanding site adaptability and flexibility and strong operation stability and can handle common heavy-load operations with ease.

● By minimizing the torque difference between front and rear drive shafts at turns, it prevents the slip difference between front and rear wheels and ensures the

coincided wheel paths between front and rear wheels to improve the service life of tires and trafficability of machine and reduce the energy loss. The articulated plates

for front and rear frames are in thickness of 46mm, with the center distance at 947mm, which is the largest value among like products, featuring high resistance against

shear and distortion and higher stability of the machine.

● The optimized 3,178mm loading and unloading height, which is the highest in the industry, features extensive operation scope of the machine. The high strength boom

in plate thickness of 46mm, which is beyond the industry design, guarantees outstanding loading performance and the carrying capacity against high torsional torque.

The bucket is capable of automatic leveling function to achieve high loading and unloading efficiency and low labor strength.

● The design optimized Z-shaped single rocker tilting mechanism features powerful operations and high efficiency, with the breakout force up to 18,500kg.

● With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine

feature high resistance against load and distortion, high firmness and compactness, and good stability.

● With the 12º vertical swing design for swing frame, the loader can ensure more effective ground touch while driving on rugged roads, featuring higher adhesion and

better stability and trafficability.

● The articulated structure of tapered roller bearings is adopted for front and rear frames, featuring reliable operations and easy maintenances.
● Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your choice.

Length × width × height (mm)

8025×3026×3410

Engine model

Weichai WD10G220E23

Rated power/speed(kW/rpm)

162/2000

Operating weight(kg)

16800

Wheelbase (mm)

3250

Operating weight (t)

5

Standard bucket capacity (m3 )

3

Dumping reach (mm)

Standard boom::1155   Extended boom:1230   Long boom:1175

Dumping height (mm)

Standard boom::3195   Extended boom:3200   Long boom:3700



Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment



Delivery Detail:

7~15 days
