BullDozer

24.54ton Bulldozer B230



    Brand Name: LIUGONG



    Model Number: B230



    Dimension: 5500*2560*3438mm



    Place of Origin: Jiangsu, China (Mainland)


Operating weight:24540 kg

Net power:169 kW

Blade capacity:7.8 m³

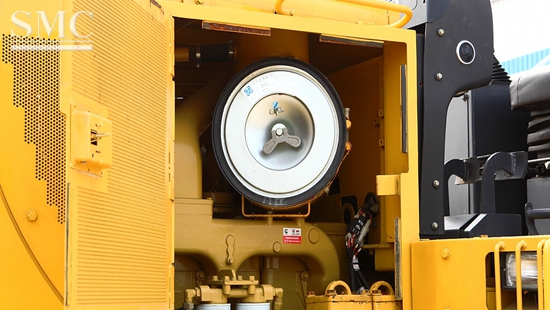

B230C bull dozer is powered by Cummins engine with a rated net power of 169 kW. Large volume fuel tank (480 L) keeps the machine working for longer. A larger more efficient cooling fan and a newly designed radiator increase cooing efficiency.

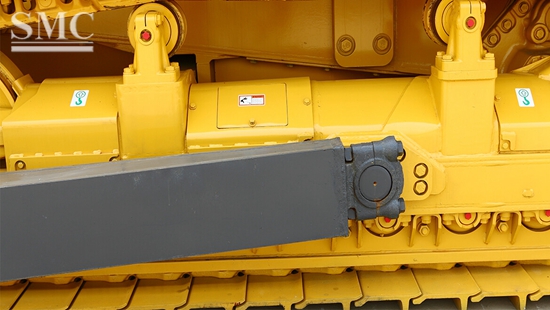

The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood.

The ultra-large rear space makes the care and maintenance of steering and brake systems easy.Mainteiance speed and access is further improved with automatic greasing system and auto track tensioning fitted as option.


Technical Information of 24.54ton Bulldozer B230:

Operating weight

24540 kg

Engine power

179 kW (240 hp) @ 2000 rpm

Max travel speed, fwd

12 km/h

Max travel speed, rev

14 km/h

No. of speeds, fwd

3

No. of speeds, rev

3

Referenced Shoe width

560mm

Ground pressure

76 kPa

Blade type

Straight

Blade capacity

8

Depth below ground

540 mm

Lift above ground

1210 mm

Blade angle

8 °

Blade tilt

735mm

Transport length

5500 mm

Transport width

3725 mm

Transport height

3438 mm

Model

Cummins

Emission

Stage I / Stage III

Ripper options

Single-shank;Triple-shank

Blade options

Straight;Angle;Semi-U;Full-U;Landfill U-Blade;Coal blade

Packaging & Delivery of 24.54ton Bulldozer B230:



Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment



Delivery Detail:7~15 days

Main Features of 24.54ton Bulldozer B230:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
