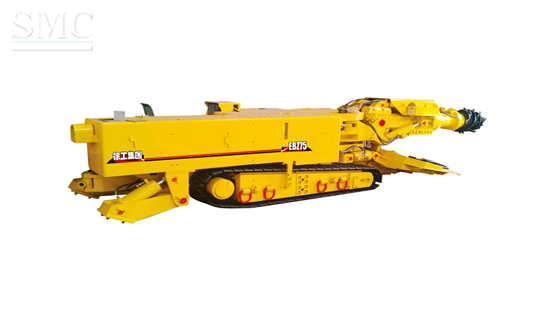

23ton Roadheader EBZ75
Brand Name:XCMG
Model Number:EBZ75
Dimension:8040*2500*1720mm
Place of Origin:Jiangsu, China (Mainland)
The arrangement of picks on cutting head is reasonable.It makes the machine has high cutting efficiency.
The small size components are convenient to transport and install underground.
The adoption of straight structure on the first conveyor makes it smooth to connect with ramp board and unobstructed to convey.
Hydraulic components are well-known inland,which are easy to maintain.
Technical Information of 23ton Roadheader EBZ75:
|
Project |
Unit |
Parameter |
|
Total weight |
(kg) |
23000 |
|
Overall dimension |
||
|
Total length without additional conveyor |
(mm) |
8040 |
|
Total width Ramp plate |
(mm) |
2000/2500 |
|
Total width Main frame |
(mm) |
1700 |
|
Total height The highest point of cutting head for laying |
(mm) |
1720 |
|
Total height Main frame |
(mm) |
1470 |
|
Undercut max telescoping/non-telescoping |
(mm) |
175 |
|
Ground clearance of machine |
(mm) |
170 |
|
Height Cutting cross section |
(mm) |
3500 |
|
WidthCutting cross section |
(mm) |
5200 |
|
Area Cutting cross section |
(m²) |
17 |
|
Gantry height |
(mm) |
300 |
|
Max./Economic compressure strength for cutting coal |
(MPa) |
≤50/30 |
|
Upgrade ability |
(°) |
±16 |
|
Travel speed |
(m/min) |
7 |
|
Minimum curve radius |
- |
0.133 |
|
Average floor pressure |
(MPa) |
145 |
|
Total installed power |
(kW) |
75 |
|
Installed power of cutting motor |
(kW) |
55 |
|
Installed power of pump motor |
(kW) |
AC660/1140 |
|
Supply voltage |
(V) |
50 |
|
Line frequency |
(Hz) |
50 |
|
Rotation speed of cutting head |
(r/min) |
50 |
|
Loading capacity |
(m³/min) |
Crab claw type/1 |
|
Crawler width |
(mm) |
400 |
|
Out width of crawlers |
(mm) |
1700 |
|
Tensioning style |
- |
Cylinder tensioning and snap-gauge locking |
|
Pressure of water spraying |
(MPa) |
External spraying≥1.5；Internal spraying≥3 |
|
Max.non-removable parts size |
(mm) |
2065×960×615 |
|
Max.non-removable parts mass |
(kg) |
42 |
Packaging & Delivery of 23ton Roadheader EBZ75:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 23ton Roadheader EBZ75:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
