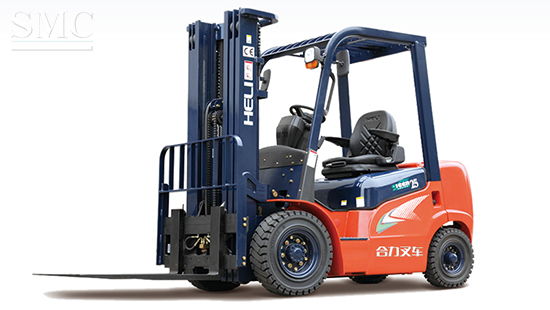

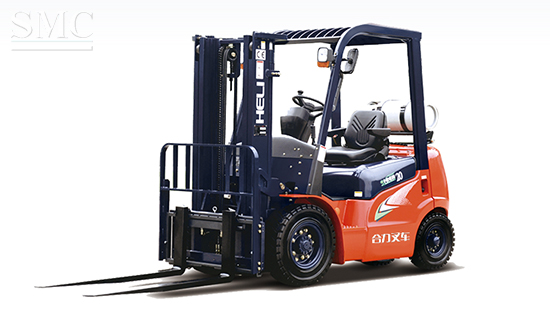

Heli G Series 2-3.5 Tons Diesel/Gasoline/Liquefied Gas Counterbalanced Forklift


    Standard gantry lifting height:3000mm


    Load center distance:500mm

Performance improvement:

The combination of self-made soft-connected gearbox makes the transmission smooth and cooperates with the V-type support of the engine to greatly reduce the vibration of the whole vehicle and improve the operation comfort. The transmission has two power output ports (PTO) to provide power output interface for other functions of the whole vehicle. The gearbox can be disassembled separately, greatly improving maintenance efficiency.

The fork mechanism is arranged. When the upper surface of the fork is separated from the ground by a certain distance, the speed limit valve is opened to start working, the speed of the drop is effectively controlled, the cargo drop is more stable, and the safety of the gantry operation is improved;

Fully hydraulic power steering mechanism for flexible steering;

The sunken gantry structure improves the stability of the gantry and reduces the tension and pressure of the tilting cylinder, thereby reducing the failure rate of the hydraulic system;

The steering oil pipe and the instrument harness are arranged separately, the steering oil pipe and the instrument harness are arranged separately, the arrangement is clear, the maintenance is convenient, and the safety of the electrical system is improved;

The ratchet type parking brake device is practical, reliable and comfortable, and the braking handle force on the ramp and the ground is controllable;

Assemble the neutral safety device to improve the safety of operation;

High-mounted rear-end combination lamp, high-level signal light, high visibility, longer working life of LED indicator light, reliable work, easier to read during daytime operation;

The use of a stronger gantry structure increases the rigidity of the gantry and further enhances the durability of the gantry;

The use of oil-filled lifting cylinders helps to improve durability;

The cast steering axle is used to improve the waterproof and dustproof capacity of the knuckle and other components, increase the life and reliability of the rotating joints, and greatly reduce the maintenance cost;

The plate-fin type high-performance water tank is used to increase the hot air return isolation device, optimize the heat dissipation air passage, and increase the heat dissipation vent, greatly improve the heat dissipation performance of the whole vehicle and improve the reliability of heavy load operation;

Using advanced design theories and tools, forward design, optimize layout, avoid resonance, enhance the strength of the frame, overhead frame, instrument frame, gantry, etc., so that the strength of the vehicle is greatly improved.


The tilting cylinder is placed under the bottom plate, the foot space of the bottom plate is increased by 45%, and the more comfortable bottom plate angle improves the operation comfort and reduces the leg fatigue during operation;

The new steering wheel adjustment mechanism is adopted, and the double-threaded thread is bilaterally locked, and the locking is more reliable;

The multi-functional suspension seat increases support for the driver, reduces vibration and further enhances driving comfort;

The small-diameter steering wheel and the sedan double-handle electro-hydraulic reversing device greatly improve driving comfort.

If you want to know more about our G Series 2-3.5 Tons Diesel/Gasoline/Liquefied Gas Counterbalanced Forklift price please feel free to contact us, we will reply you within 24 hours.

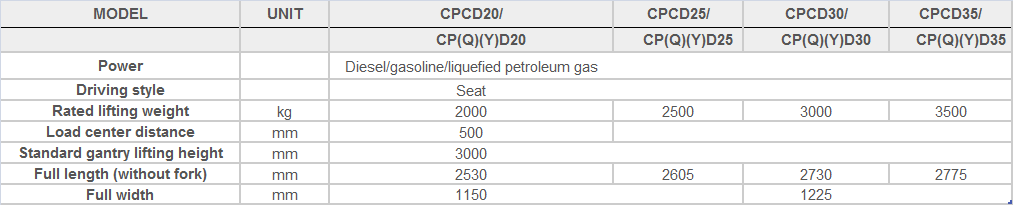

Technical Information of G Series 2-3.5 Tons Diesel/Gasoline/Liquefied Gas Counterbalanced Forklift
