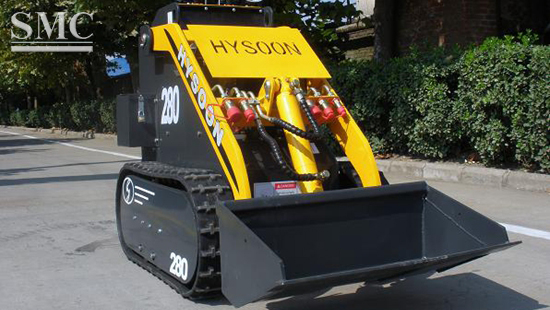

Hysoon 0.855ton Skid Steer Loader HY280
Brand Name: Hysoon
Model Number: HY280
Dimension: 2210*800*1209mm
Place of Origin: Jiangsu, China (Mainland)
1. Engine: American Briggs& Stratton gasoline (petrol) Engine, 23HP, 3 years international warranty
2. Pump: Gear pump. Italy joystick (servo) pump, handle control for optional.
3. Valve: Italy Multi-way Valve
4. Size(L* W* H)(mm): 2210* 800* 1309
5. Quick hitch system makes fastening attachments quick and easy.
6. Width: 800mm. The design can let the loader into small space for working, even your indoor.
7. Track type can fit for muddy,soft and normal environment.
8. With folded back pedal plate, walk behind operating.
9. Hydraulic operating handles. Control walking, running, working arm, bucket. Operate comfortable. Also joystick handle can be chosen.
10. There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower,
stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job
you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
|
Dimension |
Unit |
HY280 |
|
Overall length |
mm |
2210 |
|
Overall width with bucket |
mm |
800 |
|
Overall height |
mm |
1309 |
|
Weight |
||
|
Operating weight |
kg |
855 |
|
Operating load |
kg |
165 |
|
Power |
||
|
Engine model |
Petrol |
|
|
Engine rated power |
HP/(r/min) |
23/3600 |
|
Travel |
||
|
Travel speed |
km/h |
5.5 |
|
Main performance |
||
|
Max. working height |
mm |
2065 |
|
Max. pin height |
mm |
1803 |
|
Max. dumping height |
mm |
1386 |
|
Max. dumping distance |
mm |
471 |
|
Wheel base |
mm |
690 |
|
Ground clearance |
mm |
123 |
|
Bucket width |
mm |
820 |
|
Turn Radius Forward Turning |
mm |
1237 |
|
Bucket capacity |
m3 |
0.15 |
|
Working time |
||
|
Raise |
s |
4.27 |
|
Dump |
s |
1.34 |
|
Lower |
s |
3.31 |
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Main Features:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
