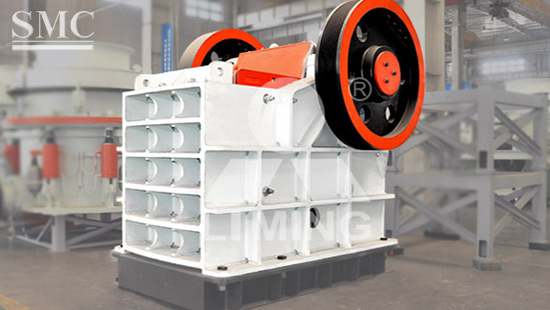

6ton Jaw Crusher PEW 200*1300
Brand Name:LIMING
Model Number:PEW 200*1300
Dimension:1320*2150*1175mm
Place of Origin:Henan, China (Mainland)
Working Principle
The crushing method of European type jaw crusher is dynamic squeeze. The working principle is: the electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Technical Information of 6ton Jaw Crusher PEW 200*1300:
|
Model |
Feed opening (mm) |
Maximum feed size(mm) |
CSS min-max (mm) |
Capacity (tph) |
Power KW(HP) |
Dimension (L×W×H) (mm) |
Weight (t) |
|
PEW200×1300 |
200X1300 |
150 |
10-30 |
12-35 |
30(40) |
1320X2150X1176 |
6 |
Packaging & Delivery of 6ton Jaw Crusher PEW 200*1300:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 6ton Jaw Crusher PEW 200*1300:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
