Forklift

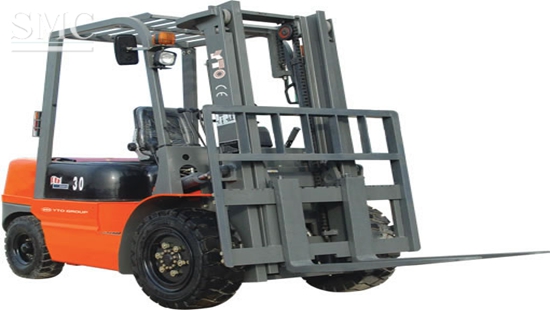

Sinomach 3ton Forklift CPCD30



    Brand Name:SINOMACH



    Model Number:CPCD30



    Dimension:2770*1225*2160mm



    Place of Origin:Henan, China (Mainland)

General Features:

1. Reliable engine

Our hydraulic internal combustion forklift truck uses high quality diesel engine, which can offer strong power.

2. Intelligent driving control system

It is equipped with digital intelligent driving control system, so the operation data of forklift can be obtained and the whole process control can be achieved.

3. Full hydraulic flexible steering system

Its full hydraulic steering system can help ease the fatigue of operator. The steering system is designed with crank sliding piece steering mechanism, so the reliable steering can be guaranteed.

4. Classical space frame structure

Our hydraulic internal combustion forklift truck uses classical ASF YTO space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.

5. Good scope of eyesight

The construction equipment adopts optimized gantry rail section design and the enlarged internal width enables the driver to enjoy a wide scope of eyesight.

Distinctive Features of 3ton Forklift CPCD30:

1. The load center distance is 500mm.

2. When these hydraulic internal combustion forklift trucks are loaded, their travel speed is 18km/h. When they are unloaded, their travel speed is 19km/h.

3. Their fork length is 1070mm.

For more parameters about these hydraulic internal combustion forklift trucks, please refer to the parameter table.



Distinctive Features of 3ton Forklift CPCD30:

1. Big arc design on top of the ballast improves the visibility of rear view and guarantees the optimum visibility when the truck is driven reversely within fixed distance.

2. The load center distance is 600mm.

3. When these hydraulic internal combustion forklift trucks are loaded, their travel speed is 20km/h. When they are unloaded, their travel speed is 21km/h.

4. Their fork length is 1220m.

For more parameters about these hydraulic internal combustion forklift trucks, please refer to the parameter table.



Technical Information of 3ton Forklift CPCD30:

Model

Unit

CPCD30

Power type

Diesel

Rated capacity

kg

3000

Load center

mm

500

Lift height

mm

3000

Free lift height

mm

165

Mast tilt angle(Forward/Backward)

°

6°/12°

Travel speed(with/without load)

Km/h

18/19

Max.gradeability(with load)

%

20

Min.turning radius

mm

2410

Fork

Length

mm

1070

Width

mm

125

Thickness

mm

45

Overall dimensions(without forks)

mm

2770*1225*2160

Tyre

Front

-

28*9-15-14PR

Rear

-

6.50-10-10PR

Weight

kg

4250

Engine

Model

-

YTR3105G1F

Manufacturer

-

YTO

Rated output

kW/r/min

40.5/2400

Rated torque

N.m/r/min

186/1800

Displacement

L

3.117

Packaging & Delivery of 3ton Forklift CPCD30:



Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment



Delivery Detail:10 days

Main Features of 3ton Forklift CPCD30:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
