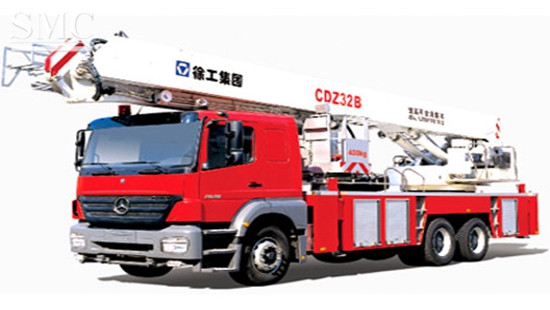

XCMG 32m Fire Truck CDZ32
Brand Name: XCMG
Model Number: CDZ32
Dimension: 12000*2500*3980mm
Place of Origin:Shaanxi, China (Mainland)
Technical Information of 32m Fire Truck CDZ32：
|
Main technical data in travel configuration |
||||
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
11380 |
|
|
Overall height |
mm |
3900 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel base |
Axles 1 and 2 |
mm |
4500 |
|
|
Axles 2 and 3 |
mm |
1350 |
||
|
Tread |
Front axle |
mm |
2053 |
|
|
Rear axle |
mm |
1802 |
||
|
Weight |
Weight with full load |
kg |
23950 |
|
|
Axle load |
Front axle |
kg |
6450 |
|
|
Dual rear axles |
kg |
17500 |
||
|
Travel performance |
Max. travel speed |
km/h |
85 |
|
|
Min. turning diameter |
m |
≤24 |
||
|
Approach angle |
- |
16 |
||
|
Departure angle |
- |
10 |
||
|
Braking distance(at 30km/h) |
m |
≤10 |
||
|
Min. ground clearance |
mm |
204 |
||
|
Max. gradeability |
% |
≥25 |
||
|
Main technical data for operation |
||||
|
Main performance |
Rated working height |
m |
32 |
|
|
Rated load |
kg |
400 |
||
|
Max. working radius （Full extending/semi-extending） |
m |
19/15 |
||
|
Outrigger span(longitudinal×lateral) |
m |
6650×5800 |
||
|
Elevating range |
- |
-3~80 |
||
|
Working speed |
Boom deploying time |
s |
≤130 |
|
|
Outrigger extending time |
s |
≤40 |
||
|
Slewing speed |
r/min |
0~1.5 |
||
|
Fire-fighting performance |
Water monitor rated flow |
L/s |
50 |
|
|
Water monitor rated pressure |
MPa |
≤1.0 |
||
|
Water monitor rated reach |
m |
≥65 |
||
|
Fire pump rated flow |
L/s |
50 |
||
|
Fire pump rated outlet pressure |
MPa |
1.8 |
||
Packaging & Delivery of 32m Fire Truck CDZ32：
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 32m Fire Truck CDZ32:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
