Motor Grader

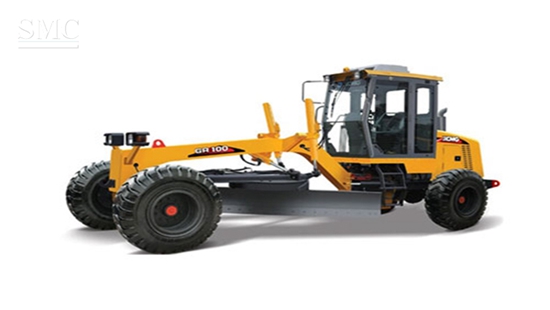

XCMG 7.0ton Motor Grader GR100



    Brand Name: XCMG



    Model Number: GR100



    Dimension: 6880*2375*3150mm



    Place of Origin:Jiangsu, China (Mainland)

Technical Information of 7.0ton Motor Grader GR100:

Basic specification

Engine model

4BT3.9

Rated power/speed

75/2400kw/rpm

Dimension(LxWxH)

6880×2375×3150mm

Operating weight(Standard)

7000kg

Performance specification



Travelling speed ,forward

5102039km/h

Travelling speed ,reverse

825km/h

Tractive force(f=0.75)

41.6KN

Max. gradeability

20%

Tire inflation pressure

350KPa

Working hydraulic pressure

16MPa

Transmission pressure

1.31.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box



Frame articulation angle

±27°

Min. turning radius using articulation

5.9m

Blade

Maximum lift above ground

300mm

Maximum depth of cutting

350mm

Maximum blade position angle

45°

Blade cutting angle

28°—70°

Circle reversing rotation

120°

Moldboard width X height

3048×500mm

Packaging & Delivery of 7.0ton Motor Grader GR100:



Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment



Delivery Detail:7~15 days

Main Features of 7.0ton Motor Grader GR100:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
