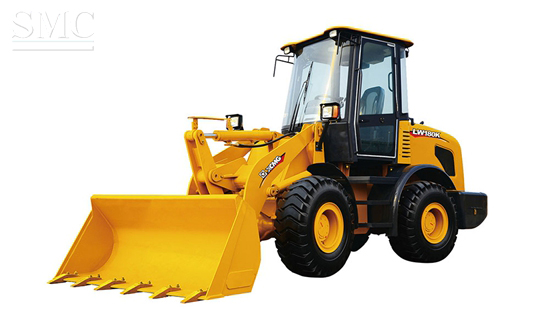

XCMG Wheel Loader LW180K(CE)
Model Name: LW180K
Model Number: XCMG
Dimension: 5980×2060×2950mm
Place of Origin: Jiangsu, China (Mainland)
|
Overall dimensions |
||||
|
Overall 1ength (bucket on the ground) |
5980 mm |
|||
|
Bucket width |
2060 mm |
|||
|
Overall height |
3200 mm |
|||
|
Wheel base |
2300 mm |
|||
|
Tread |
1550 mm |
|||
|
Min. ground clearance |
298 mm |
|||
|
Specification |
||||
|
Rated capacity |
1800 kg |
|||
|
Bucket volume |
0.9～1.1 m3 |
|||
|
Operating weight |
6.2 t |
|||
|
Traveling speeds () |
||||
|
Ⅰ |
9 km/h |
|||
|
Ⅱ |
26 km/h |
|||
|
Reverse Ⅰ |
9 km/h |
|||
|
Reverse Ⅱ |
26 km/h |
|||
|
Max. tractive force |
45 KN |
|||
|
Max. climbing gradient |
28 º |
|||
|
Max. dumping angle |
45 º |
|||
|
Max. dumping height |
2680 mm |
|||
|
Dumping reach |
900 mm |
|||
|
Overturn angle of bucket |
||||
|
The lowest position |
45 º |
|||
|
The highest position |
48.5º |
|||
|
Bucket automatic leveling function |
yes |
|||
|
Max. Breakout force |
55 KN |
|||
|
Total cycling time |
≦8.5S |
|||
|
Min. Turning radius |
5180mm |
|||
|
Center of tyre |
4470mm |
|||
|
Turning angle of the frames |
35±1 º |
|||
|
Oscillating angle of the rear axle |
±10 º |
|||
|
Engine |
Rated Power Rated Speed Maximum Torque |
|||
|
YC4D80-T3A1 |
58 2300 305/1400~1600 |
|||
|
Transmission system |
||||
|
Torque converter |
||||
|
Model |
YJ280-4D |
|||
|
Type |
1 stage, 3-elements |
|||
|
Cyclic diameter |
280 mm |
|||
|
Conversion coefficient |
K=3.19 |
|||
|
Cooling method |
Oil cooling-pressure circulating type |
|||
|
Oil inlet pressure |
0.6～0.65Mpa |
|||
|
Oil outlet pressure |
1.3～1.5Mpa |
|||
|
(2).Transmission |
||||
|
Model |
2B280 |
|||
|
Type |
Electro-hydraulic shift fixed axis type |
|||
|
Gear number |
2 forward and 2 reverse |
|||
|
Ⅰ |
2.091 |
2.186 |
||
|
Ⅱ |
0.686 |
0.7177 |
||
|
Transmission working oil pressure |
1.2-1.4MPa |
|||
|
Displacement of transmission oil pump |
20 ml/r |
|||
|
Front and rear axle |
||||
|
Speed ratio |
6.667 |
|||
|
Hub reducer |
||||
|
Type |
One stage-planetary deceleration |
|||
|
Speed ratio |
3.478 |
|||
|
Tyres |
||||
|
Tyre specification |
16/70-20 |
|||
|
Inflating pressure |
Fore tyre: 0.30～0.32 MPa |
|||
|
Rear tyre: 0.28～0.30 MPa |
||||
|
Braking system |
||||
|
Foot brake |
Oil disc braking on 4 wheels |
|||
|
Braking air pressure |
784-833 KPa |
|||
|
Hand brake |
Clamp disc brake |
|||
|
Steering system |
||||
|
System pressure |
14 MPa |
|||
|
Max turning angle |
±35º |
|||
|
Hydraulic system of the working device |
||||
|
System pressure |
16 MPa |
|||
|
Oil liquid volume |
||||
|
Fuel (diesel) |
120 L |
|||
|
Lubricating oil of engine |
11 L |
|||
|
T/M & T/C oil |
22 L |
|||
|
Hydraulic reservoir |
110 L |
|||
|
Axle |
10 L |
|||
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
