Cold Milling Machine

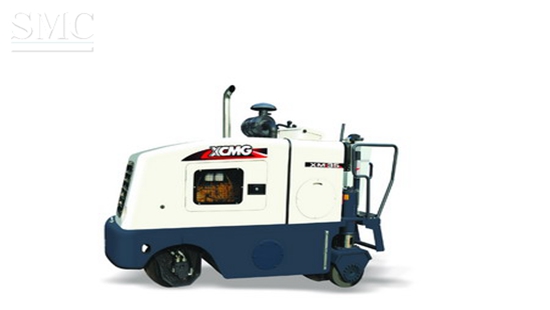

XCMG 4.35ton Cold Milling Machine XM35

    Brand Name: XCMG

    Model Number: XM35

    Dimension: 2820*1225*2050mm

    Place of Origin:Jiangsu, China (Mainland)

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.


Performance and characteristic

• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.

• Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.

• The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.

• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.

• The imported hydraulic elements have high working reliability.

• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.

• Hydraulic handheld breakers and rumble strip equipment can be selected.

Technical Information of 4.35ton Cold Milling Machine XM35:

Model

XM35

Max. milling with

mm

350

Max. milling depth

mm

60

Milling wheel

Number of tools



38

Drum diameter with tools

mm

460

Engine

Model



YC4D80-T11

Rated power

kW

56

Rated speed

rpm

2200

Specifications

Operating speed

m/min

0~25

Travel speed

km/h

06

Ground clearance

%

20

Ground clearance

mm

≤80

Operating weight

kg

4350

Volume

Fuel tank

L

90

Hydraulic oil tank

L

70

Water tank

L

220

Conveyor

Width

mm



Measurement

Overall machinery LxWxH

mm

2820×1225×2050

Conveyor LxWxH

mm



Travel mode





Tire

Packaging & Delivery of 4.35ton Cold Milling Machine XM35:



Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment



Delivery Detail:10 days

Main Features of 4.35ton Cold Milling Machine XM35:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
