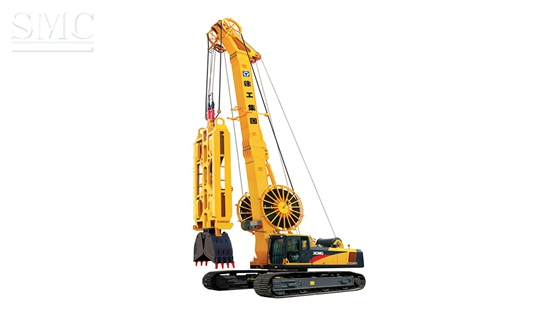

61ton Diaphragm Wall Grab XG360
Brand Name:XCMG
Model Number:XG360
Dimension: 10370*4400*17205mm
Place of Origin:Jiangsu, China (Mainland)
1.The specific extra-wide chassis manufactured with XCMG’s mature technologies, having large swiveling supports and great torsion
resistance, provides a stable base for the host machine.
2. It is adopted with box-type mast structure, which provides stable support for the grab construction and has very high stability.3. Equipped with Cummins QSL9-C325 electronic control engine (Tier3), high efficiency, low noise, and low emission.
4.Equipped with advanced inclinometer, which can provide the grab adjustment and fall down protection function,
it can record and memory the locus grab, and draw the wall curve. This can effectively guarantee the wall precision
5.With the load-sensing control, the hydraulic system can effectively increase the utilization rate of system resources and also the construction efficiency.6. Smart control system realizes the automatic hosereelautomaticreel on and off the electrical cable winch synchronization
automatic pressure inspection and alarm，the fault rate is reduced and accordingly the time consumed for fault detection is shortened.
Technical Information of 61ton Diaphragm Wall Grab XG360:
|
Project |
Unit |
Parameter |
|
|
Working parameter |
|||
|
Wall thickness |
(mm) |
300-1200 |
|
|
Wall depth |
(mm) |
60 |
|
|
Main data |
|||
|
Max. hoisting force |
(kN) |
360 |
|
|
Grab closing force |
(kN) |
1000 |
|
|
Max. pull/push speed |
(m/min) |
40 |
|
|
Grab opening time |
(s) |
6 |
|
|
Grab closing time |
(s) |
7 |
|
|
Power parameter |
|||
|
Engine model |
- |
CUMMINS QSL9 |
|
|
Engine rated power |
(kW/r/min) |
242/2100 |
|
|
Undercarrige |
|||
|
Max. travelling speed |
(km/h) |
1.5 |
|
|
Max. grade ability |
(%) |
35 |
|
|
Max. clearance |
(mm) |
468 |
|
|
Track shoe width |
(mm) |
800 |
|
|
Distance between tracks |
(mm) |
3500-4400 |
|
|
Working condition |
|||
|
Total lengh |
(mm) |
10370 |
|
|
Total width |
(mm) |
4400 |
|
|
Total height |
(mm) |
17205 |
|
|
Working radius |
(mm) |
4360-5160 |
|
|
Transportation condition |
|||
|
Total lengh |
(mm) |
12850 |
|
|
Total width |
(mm) |
3500 |
|
|
Total height |
(mm) |
3395 |
|
|
System parameter |
|||
|
Max.system pressure |
(MPa) |
30 |
|
|
Max. system flow |
(L/min) |
560 |
|
|
Weight parameter |
|||
|
Bare weight |
(t) |
61 |
|
|
Grab weight |
(t) |
14-24 |
|
Packaging & Delivery of 61ton Diaphragm Wall Grab XG360:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 61ton Diaphragm Wall Grab XG360:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
