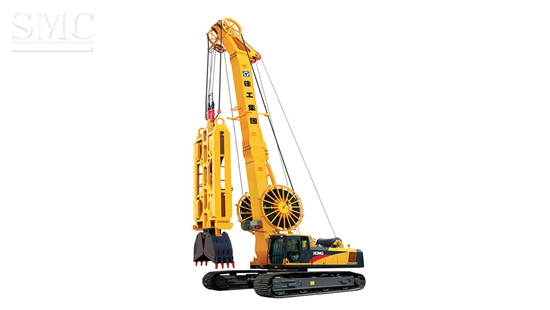

84ton Diaphragm Wall Grab XG450D
Brand Name:XCMG
Model Number:XG450D
Dimension: 10305*4800*17265mm
Place of Origin:Jiangsu, China (Mainland)
1.The specific extra-wide chassis manufactured with XCMG's mature technologies ,having large swiveling bearing,
provides super stability.
2.Double winch and single row rope construction extend the life-span of the steel rope,reduce the construction cost .3. The control system equipped with an encoder ensures the accurate synchronization of double winches reduces the
frequency of synchronized adjustment and increases the construction efficiency.
4.Equipped with advanced inclinometer, which can provide the grab adjustment and fall down protection function,
it can record and memory the locus grab, and draw the wall curve. This can effectively guarantee the wall precision.
5. With the load-sensing control, the hydraulic system can effectively increase the utilization rate of system resources
and also the construction efficiency.
6. PLC control system realizes the automatic hosereelautomaticreel on and off the electrical cable winch synchronization
automatic pressure inspection and alarm，the fault rate is reduced and accordingly the time consumed for fault detection
is shortened.
Technical Information of 84ton Diaphragm Wall Grab XG450D:
|
Project |
Unit |
Parameter |
|
|
Working parameter |
|||
|
Wall thickness |
(mm) |
300-1200 |
|
|
Wall depth |
(mm) |
75 |
|
|
Main data |
|||
|
Max. hoisting force |
(kN) |
2*225 |
|
|
Grab closing force |
(kN) |
1200 |
|
|
Max. pull/push speed |
(m/min) |
40 |
|
|
Grab opening time |
(s) |
5.4 |
|
|
Grab closing time |
(s) |
5.7 |
|
|
Power parameter |
|||
|
Engine model |
- |
CUMMINS QSL9 |
|
|
Engine rated power |
(kW/r/min) |
242/2100 |
|
|
Undercarrige |
|||
|
Max. travelling speed |
(km/h) |
1.5 |
|
|
Max. grade ability |
(%) |
35 |
|
|
Max. clearance |
(mm) |
445 |
|
|
Track shoe width |
(mm) |
800 |
|
|
Distance between tracks |
(mm) |
3500-4800 |
|
|
Working condition |
|||
|
Total lengh |
(mm) |
10305 |
|
|
Total width |
(mm) |
4800 |
|
|
Total height |
(mm) |
17265 |
|
|
Working radius |
(mm) |
4650-5350 |
|
|
Transportation condition |
|||
|
Total lengh |
(mm) |
12945 |
|
|
Total width |
(mm) |
3500 |
|
|
Total height |
(mm) |
3488 |
|
|
System parameter |
|||
|
Max.system pressure |
(MPa) |
32 |
|
|
Max. system flow |
(L/min) |
560 |
|
|
Weight parameter |
|||
|
Bare weight |
(t) |
64 |
|
|
Grab weight |
(t) |
14-26 |
|
Packaging & Delivery of 84ton Diaphragm Wall Grab XG450D:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 84ton Diaphragm Wall Grab XG450D:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
