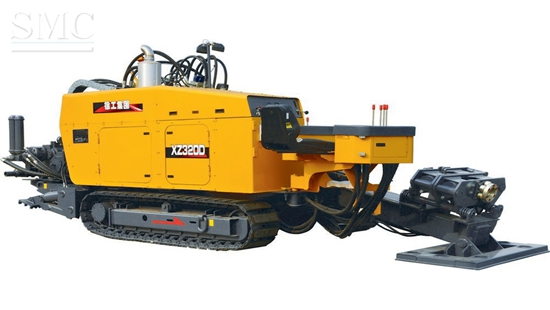

320kN Horizontal Direction Drill XZ320D
Brand Name: XCMG
Model Number: XZ320D
Dimension: 7100*2300*2450mm
Place of Origin:Xuzhou, China (Mainland)
1.High-power engine system, strong power. It is adopted turbine engine which power is 153kW. The powerful engine is enough and insures there is enough power for drill in different working conditions.
2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational.
3.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
4.High-speed sliding and rotation systems, variable motor to achieve high and low power head sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
5. Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.
Technical Information of 320kN Horizontal Direction Drill XZ320D:
|
Project |
Unit |
Parameter |
|
Engine |
||
|
Type |
- |
Cummins 6BTAA5.9-C205 |
|
Rated power |
(kW/r/min) |
153/2200 |
|
Thrust-Pull |
||
|
Max thrust-pull force |
(kN) |
320 |
|
Thrust-pull speed |
(m/min) |
15 |
|
Rotation |
||
|
Torque |
(N·m) |
12000 |
|
Max spindle speed |
(r/min) |
140 |
|
Mud pump |
||
|
Max Flow rate |
(L/min) |
320 |
|
Max pressure |
(MPa) |
8 |
|
Pipe |
(mm×m) |
Φ73×3 |
|
Loader Crane |
||
|
Lifting weight |
(t) |
- |
|
Loading capacity |
(t•m) |
- |
|
Max inclination angle |
(°) |
20 |
|
Max backreamer diameter |
(mm) |
Φ800 |
|
Weight |
(t) |
10 |
|
Dimension |
(mm) |
6500×2250×2450 |
|
Remark |
- |
Optional：Cab;Air-condition; Full-automatic pipe loader.Semi-automatic pipe loader;Single automatic anchor;Dual automatic anchor;Mud antifreeze;Mud Cleaning;Automatic thread oil daub. |
Packaging & Delivery of 320kN Horizontal Direction Drill XZ320D:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:30 days
Main Features of 320kN Horizontal Direction Drill XZ320D:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
