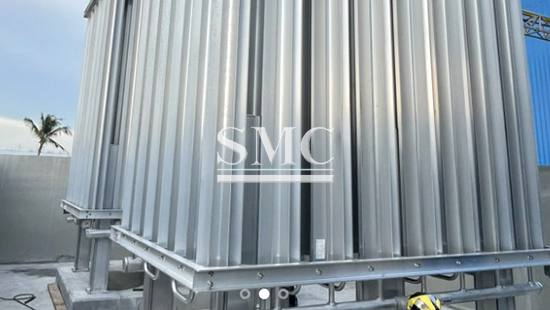

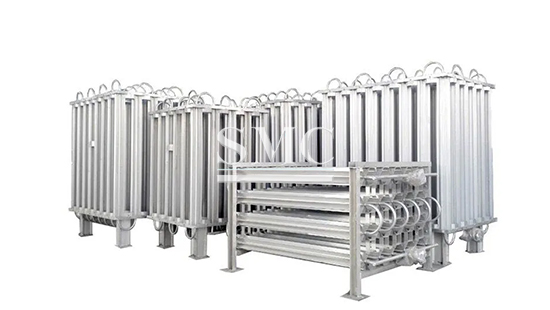

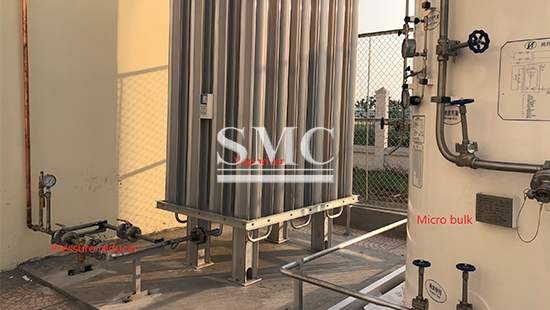

Air Ambient Vaporizer

Work pressure: 0.2~25 Mpa

Ambient temperature: -20~50 ℃

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation Professionally manufactures Air Ambient Vaporizer and insists on the principle of quality first and customer first. Fully considering the security of users and strive to improve the efficiency for customers.

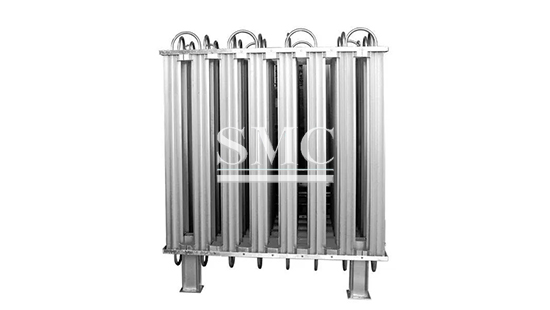

As a heat exchanger, the air ambient vaporizer is used to heat low-temperature liquid or liquefied gas to vaporize it to a temperature not lower than the design temperature. Shanghai Metal Corporation vaporizer uses a star-shaped aluminum finned tube with high heat exchange rate as the main body of heat exchange to realize the transfer of heat energy between air and working medium. The star-shaped aluminum fin tubes are connected by a central connecting piece, and the structure is stable. In the process of work, no external energy is needed, energy-saving and environmental protection.

If you want to know more about Air Ambient Vaporizer price please feel free to contact us, we will reply you within 24 hours

Ambient air vaporizers are relatively uncomplicated heat exchangers which vaporize liquified gas by using heat absorbed from ambient air. Due to this simple principle of operation these vaporizers do not require external power. Liquid gas passes through a number of interconnected tubes in various series and parallel paths. Ambient air vaporizers are used in a wide range of application throughout the industry.

Available ambient air vaporizers:

Product vaporizer

Pressure building vaporizer

For product vaporizers, Cryonorm offers low- and high- pressure range.

Vaporizers are sized to match customer flow requirement based on type of gas (O2, N2, AR, CO2, CO, CH4, C2H4, etc.), required duty time, ambient conditions and required gas temperature downstream the vaporizer(s).

Natural gas storage, laser cutting, aquaculture, hospital oxygen supply, metal welding, foodstuff quick freezing and other fields

Although cryogenic liquid-to-gas vaporizers might be seen as a rather mundane component of the industrial gas use process, they are nevertheless a critical and mandatory sub-system. The variety of vaporizer options available suggests careful evaluation when selecting the appropriate type and model, whether for a cylinder fill plant or end-user application. Selection involves the consideration of flow rate, outlet gas temperature required, duty cycle (hours per day), space available for installation, power available at site, ambient climate, and material compatibility for the liquid/gas intended.

Technical Information of Air Ambient Vaporizer:

Configuration	Type
	LNG Vaporizer	LPG Vaporizer	Low pressure liquefied Gas vaporizer	Medium pressure liquefied Gas vaporizer	High pressure liquefied Gas vaporizer
	QQ- (2~ 10000)A-01/03	QQ- (50~ 1000)A-02	QQ-(20~ 10000)A-1	QQ- (20~ 5000)A-2	QQ- (50~ 4000)A-3
Design Pressure(MPa)	≤1.76～30	≤1.76	2.5	≤10	≤17.6～30
Working Pressue (MPa)	0.2～25	0.05～0.2	≤2.45	2.5～9.8	16.5～25
Design Tempreture C	-196～50	-196~50	-196～50	-196~50	-196~50
Ambient temperature C	-20～50	-10～50	-20～50	-20～50	-20～50
Single rated vaporization	20～10000m³h	50～1000kg/h	20～10000m²h	20～5000m⁹h	50~4000m/h
Structure	Bridge Type	/	Bridge Type	Bridge Type	Bridge Type
Medium	LNG	LPG (dinethynethare=70%)	LOLN、LAr、LCO,Etc
*the design pressure of the Vaporizer shall not be less than 1.15 times of the maximum working pressure
Execuive standard: Q/HN 2-2018 air temperature finned tube vaporizer
