Metal for Household Appliance

Aluminum Circles / Aluminum Disc For Cookware

    Grade: 1050, 1060, 3003, 3105, 5052



    Thickness: 0.8mm - 5.0mm



    Diameter range: 180mm - 1000mm

Aluminum circles are widely used in kitchen supplies and lighting industry, such as cooking wares, pan covers, non-stick pan, pressure cooker, water heaters, etc., and hardware supplies such as lamp shade, lighting Shell.

Cold Rolling/ Hot RollinngAluminum Circles are widely used in furnitures like tables. But most aluminum circles clients

requested are Deep Drawing Quality Aluminum Circle. These aluminum circle are widely


Alloy: 1xxx series, 3xxx series, 5xxx series, 6xxx series and 8xxx series;
Temper: O- H112;
Thickness: 0.6mm - 6.0mm (+/-0.0.2mm), Diameter: 80mm - 1200mm;
Surface treatment: mill finished, flat clean surface without scratches, wholes, oil dirty,
oxidation, cutting edge.

Features of Aluminum Circle:
1) Wide range of selection on circles' size including customized shape and size
2) Excellent deep drawing and spinning quality
3) RoHS and REACH compliance


Specifications of Aluminum Circles / Aluminum Discs:
1) Grade:1050, 1060, 3003, 3105, 5052
2) Thickness: 0.8mm - 5.0mm
3) Diameter Range: 180mm - 1000mm
4) Temper: O, H14, H16, etc.
5) Production process: CC or DC
6) Package: seaworthy wooden pallet or wooden case
7) Appearance: flat clean surface without scratches, wholes, oil dirty, oxidation, cutting edge no burrs

Features of our Aluminium Circles Product:
1) Standard and stable Technology for producing Best Aluminium Circle
2) ISO 9001:2008 SGS Certified
3) Reliable QC and Premium quality with competitive price
4) Excellent surface quality for deep processing
5) Excellent elongation and tensile strength for drawing and spinning

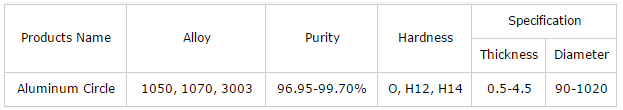

Aluminum Circle Specifications:

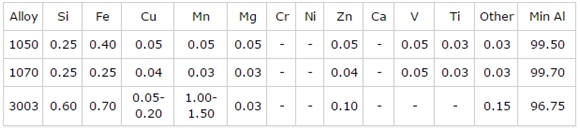

Chemical Composition (%) for Aluminum Circle:

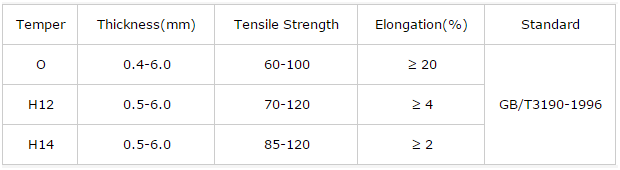

Mechanical Properties of Aluminum Circle:

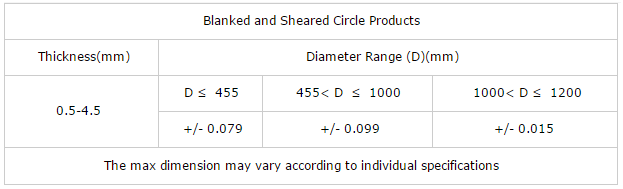

Specification Tolerances:

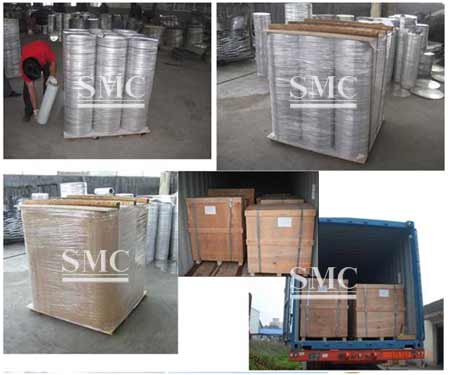

Packaging of Aluminum Circles / Aluminum Discs

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Standard seaworthy export packing, wooden pallets with plastics protection for the sheet

Transport:

1) landway transportation

2) container-shipping


Applications of Aluminum Circles / Aluminum Discs:

1) Cookingware bottom plates

2) Pan cover

3) Pressure cooker

4) Electric cooker

5) Lamp shade

6) Fry pans

7) Tea kettles

8) Rice cookers

9) Stock pats

10) Bread Makers

11) Bake-ware

12) Restaurant cookware, etc.
