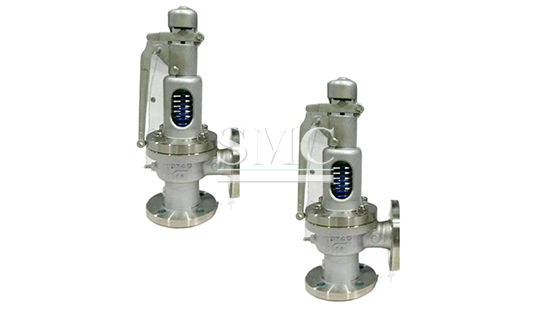

Material: Carbon steel, Stainless steel
Size: DN20-DN150
Working temperature: ≤ 350 ℃
Suitable medium: Air, petroleum gas, liquid and other media
Shanghai Metal Corporation is a professional manufacturer and supplier of Closed Spring Loaded Full Bore Type Safety Valve with high quality and reasonable price.
A spring-loaded safety valve refers to a valve that relies on the elastic pressure of a spring to lock its valve or plunger seals. Once the pressure in the pressure vessel is abnormal, the high pressure generated will overcome the spring pressure of the safety valve. Therefore, the locking device is pushed open, forming a pressure relief channel to release the high pressure. According to the different opening heights of the valve disc, it can be divided into two types: full lift and micro lift. Full lift type has a large discharge capacity and good rebound force, suitable for liquid and gas media, while micro lift type is only suitable for liquid media.
Spring type safety valves are suitable for equipment and pipelines with steam water and other media working at temperatures ≤ 350 ℃. As an over pressure protection device.
If you want to know more about Closed Spring Loaded Full Bore Type Safety Valve price please feel free to contact us, we will reply you within 24 hours

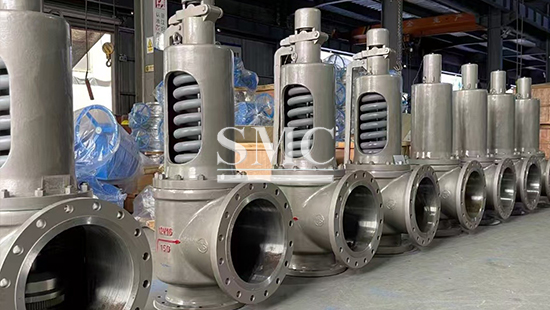

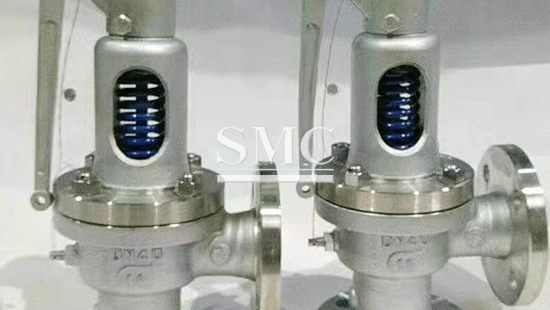

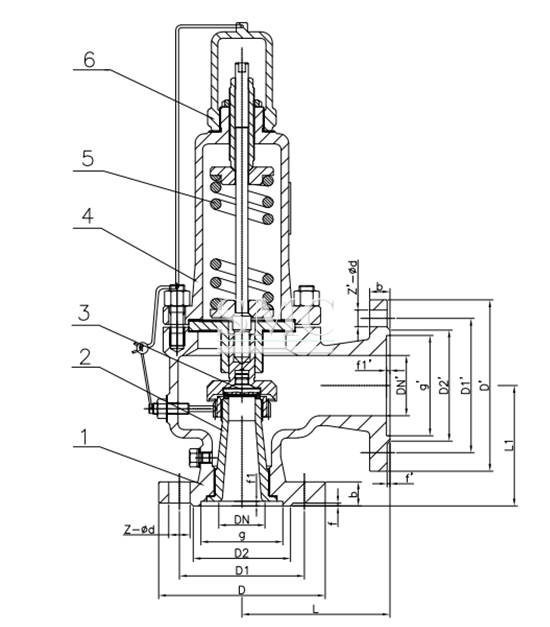

Technical Information of Closed Spring Loaded Full Bore Type Safety Valve:
Type |
Nominal diameter |
D |
D1 |
g |
D2 |
b |
f |
f1 |
Z-φd |
Nominal diameter |
D' |
D1' |
g' |
D2' |
b' |
f' |
f'1 |
Z'-φd |
L1 |
L |
A42Y-40 |
20 |
105 |
75 |
51 |
55 |
16 |
2 |
4 |
4-14 |
25 |
115 |
85 |
|
65 |
16 |
2 |
|
4-14 |
110 |
95 |
25 |
115 |
85 |
58 |
65 |
16 |
2 |
4 |
4-14 |
32 |
140 |
100 |
|
78 |
18 |
2 |
|
4-18 |
110 |
95 |
|
32 |
140 |
100 |
66 |
78 |
18 |
2 |
4 |
4-18 |
40 |
150 |
110 |
|
85 |
18 |
3 |
|
4-18 |
115 |
100 |
|
40 |
150 |
110 |
76 |
85 |
18 |
3 |
4 |
4-18 |
50 |
165 |
125 |
|
100 |
20 |
3 |
|
4-18 |
120 |
110 |
|
50 |
165 |
125 |
88 |
100 |
20 |
3 |
4 |
4-18 |
65 |
185 |
145 |
|
120 |
20 |
3 |
|
4-18 |
135 |
120 |
|
65 |
185 |
145 |
110 |
120 |
22 |
3 |
4 |
8-18 |
80 |
200 |
160 |
|
135 |
20 |
3 |
|
8-18 |
160 |
140 |
|
80 |
200 |
160 |
121 |
135 |
22 |
3 |
4 |
8-18 |
100 |
220 |
180 |
|
155 |
22 |
3 |
|
8-18 |
170 |
135 |
|
100 |
235 |
190 |
150 |
160 |
24 |
3 |
4.5 |
8-23 |
125 |
250 |
210 |
|
185 |
22 |
3 |
|
8-18 |
195 |
175 |
|
125 |
270 |
220 |
176 |
188 |
28 |
3 |
4.5 |
8-26 |
150 |
285 |
240 |
|
210 |
24 |
3 |
|
8-23 |
210 |
190 |
|
150 |
300 |
250 |
204 |
218 |
30 |
3 |
4.5 |
8-26 |
175 |
310 |
270 |
|
240 |
26 |
3 |
|
8-23 |
255 |
230 |
|
200 |
375 |
320 |
260 |
282 |
38 |
3 |
4.5 |
12-30 |
250 |
405 |
355 |
|
320 |
30 |
3 |
|
12-26 |
300 |
260 |
|
250 |
450 |
385 |
313 |
345 |
42 |
3 |
4.5 |
12-34 |
300 |
460 |
410 |
|
375 |
30 |
4 |
|
12-26 |
350 |
320 |
|
A42Y-64 |
20 |
125 |
90 |
51 |
68 |
22 |
2 |
4 |
4-18 |
25 |
115 |
85 |
58 |
65 |
16 |
2 |
4 |
4-14 |
96 |
85 |
25 |
140 |
100 |
58 |
78 |
22 |
2 |
4 |
4-18 |
32 |
140 |
100 |
66 |
78 |
18 |
2 |
4 |
4-18 |
110 |
100 |
|
32 |
155 |
110 |
66 |
82 |
24 |
2 |
4 |
4-23 |
40 |
150 |
110 |
76 |
85 |
18 |
3 |
4 |
4-18 |
130 |
110 |
|
40 |
170 |
125 |
76 |
95 |
24 |
3 |
4 |
4-23 |
50 |
165 |
125 |
88 |
100 |
20 |
3 |
4 |
4-18 |
130 |
120 |
|
50 |
180 |
135 |
88 |
105 |
26 |
3 |
4 |
4-23 |
65 |
185 |
145 |
110 |
120 |
22 |
3 |
4 |
8-18 |
135 |
130 |
|
65 |
205 |
160 |
110 |
130 |
28 |
3 |
4 |
8-23 |
80 |
200 |
160 |
121 |
135 |
22 |
3 |
4 |
8-18 |
175 |
160 |
|
80 |
215 |
170 |
121 |
140 |
30 |
3 |
4 |
8-23 |
100 |
235 |
190 |
150 |
160 |
24 |
3 |
4.5 |
8-23 |
175 |
160 |
|
100 |
250 |
200 |
150 |
168 |
32 |
3 |
4.5 |
8-26 |
125 |
270 |
220 |
176 |
188 |
28 |
3 |
4.5 |
8-25 |
195 |
195 |
|
150 |
345 |
280 |
204 |
240 |
38 |
3 |
4.5 |
8-34 |
200 |
375 |
320 |
260 |
282 |
38 |
3 |
4.5 |
12-30 |
280 |
265 |
|
A42Y-100 |
20 |
125 |
90 |
51 |
68 |
22 |
2 |
4 |
4-18 |
25 |
115 |
85 |
58 |
65 |
16 |
2 |
4 |
4-14 |
96 |
85 |
25 |
140 |
100 |
58 |
78 |
24 |
2 |
4 |
4-18 |
32 |
140 |
100 |
66 |
78 |
18 |
2 |
4 |
4-18 |
110 |
100 |
|
32 |
155 |
110 |
66 |
82 |
24 |
2 |
4 |
4-23 |
40 |
150 |
110 |
76 |
85 |
18 |
3 |
4 |
4-18 |
130 |
110 |
|
40 |
170 |
125 |
76 |
95 |
26 |
3 |
4 |
4-23 |
50 |
165 |
125 |
88 |
100 |
20 |
3 |
4 |
4-18 |
130 |
120 |
|
50 |
195 |
145 |
88 |
112 |
28 |
3 |
4 |
4-26 |
65 |
185 |
145 |
110 |
120 |
22 |
3 |
4 |
8-18 |
135 |
130 |
|
65 |
220 |
170 |
110 |
138 |
32 |
3 |
4 |
8-26 |
80 |
200 |
160 |
121 |
135 |
22 |
3 |
4 |
8-18 |
175 |
160 |
|
80 |
230 |
180 |
121 |
148 |
34 |
3 |
4 |
8-26 |
100 |
235 |
190 |
150 |
160 |
24 |
3 |
4.5 |
8-23 |
175 |
160 |
|
100 |
265 |
210 |
150 |
172 |
38 |
3 |
4.5 |
8-30 |
125 |
270 |
220 |
176 |
188 |
28 |
3 |
4.5 |
8-25 |
195 |
195 |
|
150 |
355 |
290 |
204 |
250 |
46 |
3 |
4.5 |
12-34 |
200 |
375 |
320 |
260 |
282 |
38 |
3 |
4.5 |
12-30 |
280 |
265 |
Packaging of Closed Spring Loaded Full Bore Type Safety Valve:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
NOTICE:
a. All types of safety valves should be installed vertically.
b. The outlet of the safety valve should be unobstructed to avoid pressure.
c. The safety valve should be specially tested and its sealing checked before installation.
d. Regular inspections should be conducted on safety valves in use.
