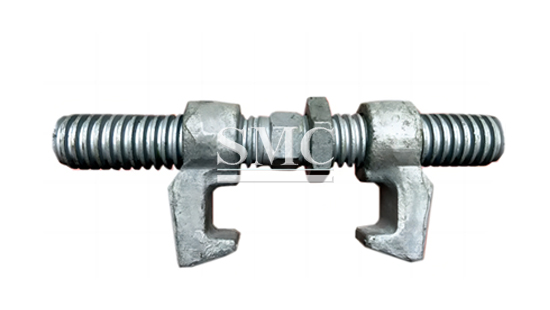

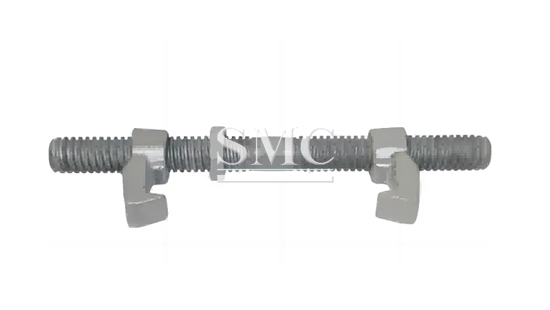

Container Bridge Fitting Clamp

Material: Steel

Finish: Hot dipped galvanized

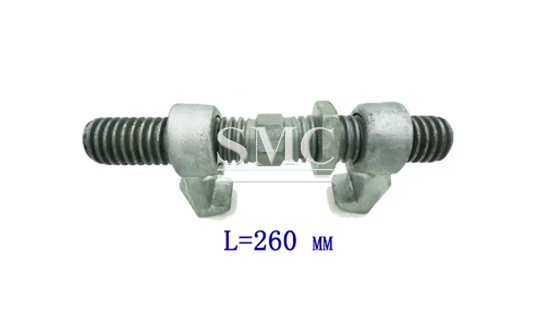

Length: 260mm, 280mm, 380mm or customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Container bridge fitting clamp with high quality and reasonable price.

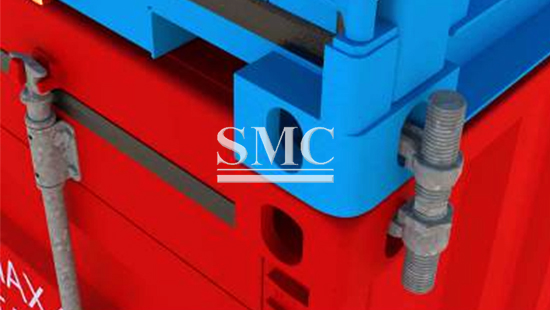

Container fitting is used for the horizontal or vertical connecting of upper adjacent container to spread the load of main lashing equipment. The use method of bridge fitting is simple. You only need to insert the two end of bridge fitting into the hole of container corner fittings, then turn the adjusting nut to tense the connecting of container.

If you want to know more about our medical products or container bridge fitting clamp price please feel free to contact us, we will reply you within 24 hours.

1.Fastening containers

2.Twist lock

1. Open bridge clamp by twisting shaft until a minimum distance between grips of approx 200mm is achieved.

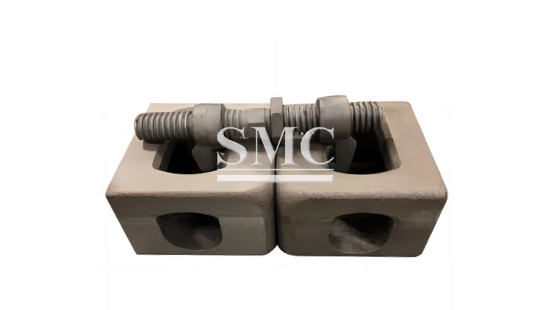

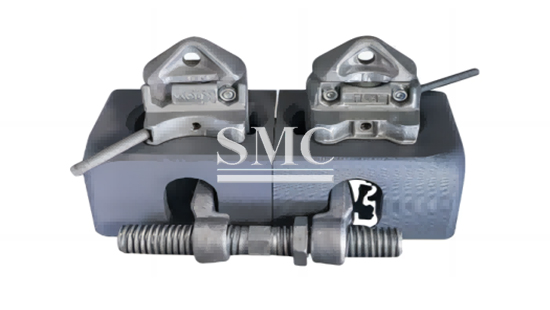

2. Insert bridge clamp across adjacent corner castings as shown, ensuring grip hooks are inside corner casting.

3. Rotate shaft to tighten grips using central spanner point.

4. Tighten lock nut up to adjacent grip to ensure clamp it not easy to loosen.

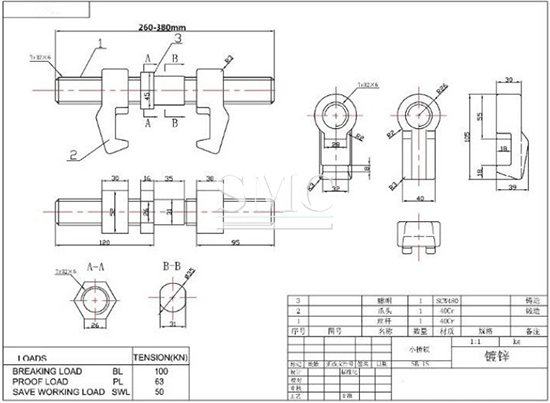

Technical Information of Container bridge fitting clamp:

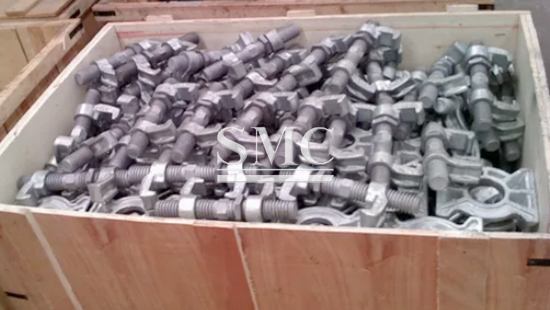

Packaging of Container bridge fitting clamp:

Container bridge fitting: 100-300pcs per wooden box
