Machinery and Equipment Spare Parts & Accessories

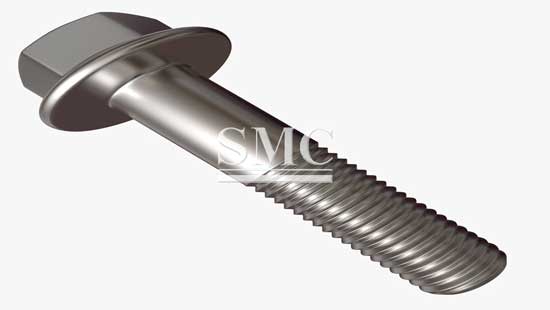

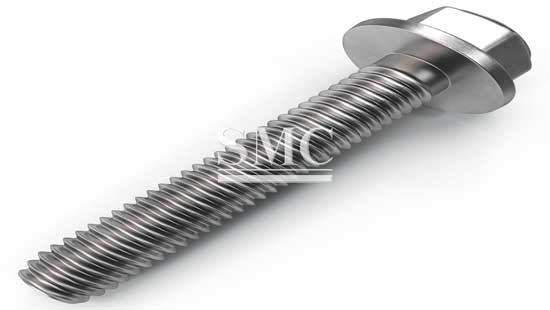

Flange Bolt For Machinery And Equipment Spare Parts

    Grades: 4.8, 8.8, 2, 5



    Sizes: M5 - M20



    Minimum Order Quantity: 50,000 pieces



    FOB Price: USD 25-55 per thousand pieces

Specifications of Flange Bolt:



Materials of Flange Bolts we can produce:

Stainless, Aluminum, Carbon Steel, Brass, Alloy Steel, Nylon,Silicon, Bronze, etc.


Surface Treatments of Bolts we can provide:

Yellow zinc plated, White zinc plated, Hot dip galvanized, Nickel plated, Polished, etc.

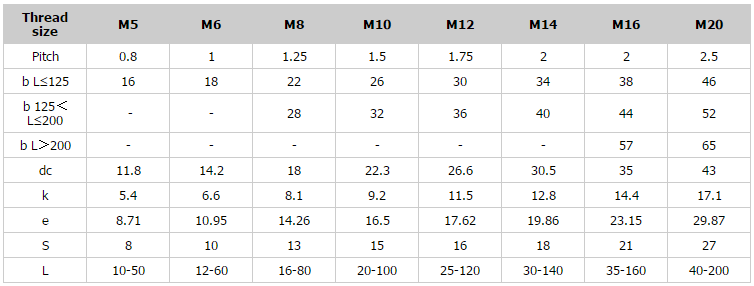

Here is an example of DIN6921 Flange Bolt Dimension:

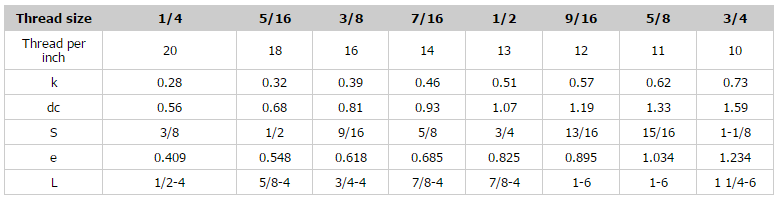

Here is an example of IFI C-28 Flange Bolt Dimension:

Packaging of Flange Bolt

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Flange Bolt:



1) Automotive Application:The flange bolt is widely used for automotive applications. The improved strength of a unified fastener, as compared with a separate bolt and washer, works well for the demands of automotive junctions.

2) Hard-to-Reach Application: Whenever you'll be working in a dark, cramped or difficult-to-access location, save frustration and time by minimizing the number of materials and tools.
