Bearing

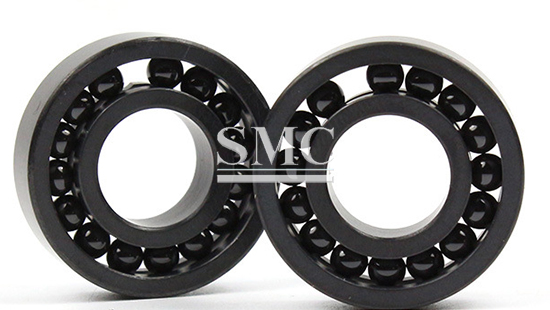

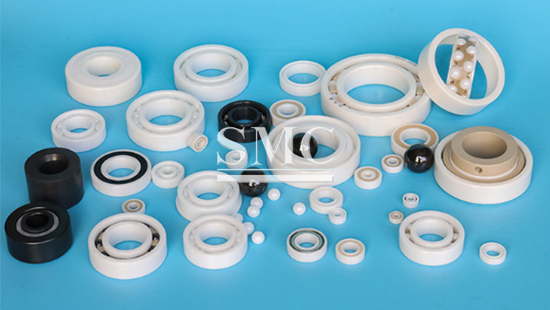

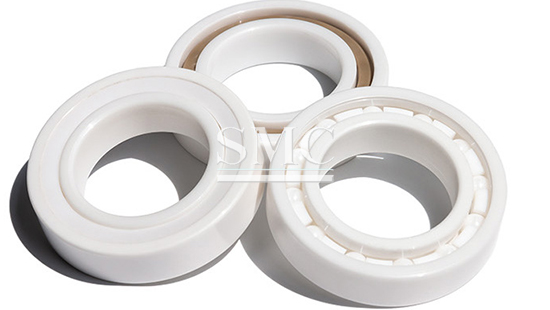

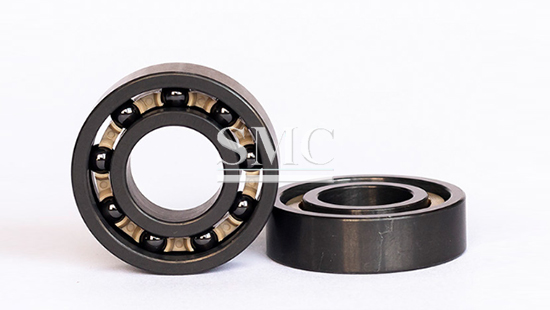

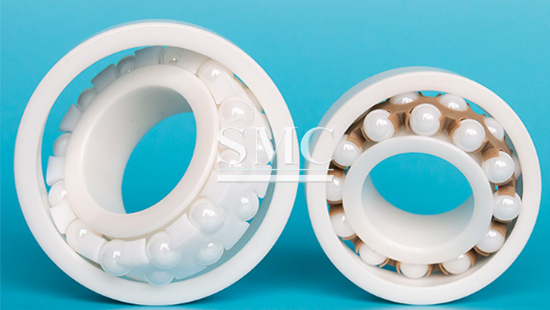

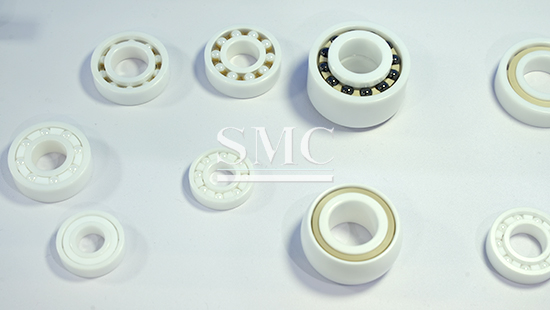

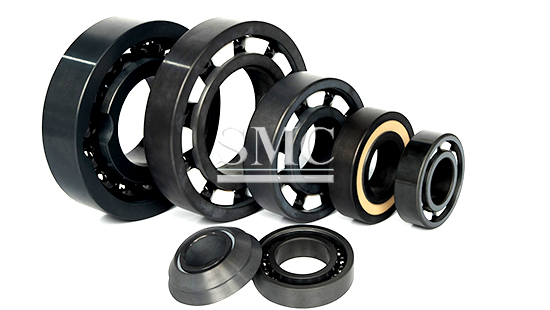

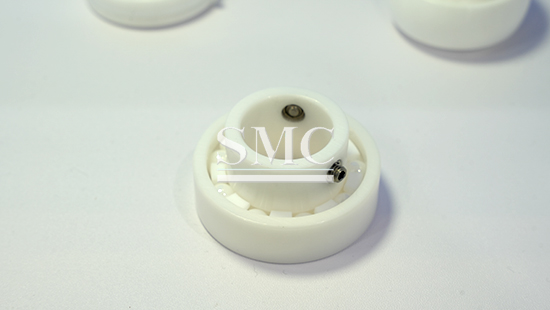

Full Ceramic Bearing/ Pure Ceramic Bearing

Material: ZrO2, Si3N4, SiC, Al2O3

Rolling Element Arrangement: Single Row, Double Row, Multi-Row

Inner and Outer Ring Structure: Monolithic Structure, Single-Piece Structure

Load Capacity: Light Load, Medium Load, Heavy Load.

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a leading Full Ceramic Bearing manufacturer and supplier.

Full ceramic bearings are entirely constructed from ceramic‑based components including inner rings, outer rings and rolling elements. These bearings operate without steel parts and maintain stable performance under special working conditions. They are widely deployed in chemical corrosion environments, high‑speed rotating equipment, high‑temperature facilities and low‑magnetic requirement machinery. This product solves common failure risks for metal bearings such as corrosion rust, magnetic interference, thermal deformation and short service life under extreme temperature‑chemical combined conditions. It supports continuous stable rotation where ordinary steel bearings cannot function reliably.

If you want to know more about our Mechanical Products or Full Ceramic Bearing price please feel free to contact us, we will reply you within 24 hours.

Full ceramic bearings include inner rings, outer rings and rolling elements, with cages made of PTFE, PEEK, UPE, PVDF, PA66 or stainless steel.The cage evenly separates rolling elements to avoid collision. Various cage materials guarantee reliable performance from -200℃ to 1200℃.Tunable internal clearance counteracts thermal deformation from sharp temperature changes. Tight‑clearance types run stably long‑term, while increased‑clearance ones fit frequent thermal cycling.These bearings work well in high‑temperature, corrosive, non‑magnetic, insulating and vacuum conditions. Optimized surface contact reduces fatigue damage with limited lubrication.

1. Excellent Corrosion Resistance Resists acid, alkali and salt corrosion, reducing failures and maintenance work.

2. Low Magnetic Property No magnetic interference or particle adsorption, stable for precision non‑magnetic equipment.

3. High‑Low Temperature Adaptability Stable over wide temperatures, avoids jamming from thermal expansion for high‑temp & cryogenic applications.

4. Low Density & Low Inertia Ceramic parts feature lighter weight, reduces centrifugal force during high‑speed rotation and enables higher allowable rotating speed.

5. High Wear Resistance Hard ceramic material slows surface abrasion under continuous operation, extends bearing service cycle and cuts replacement cost.

1. Chemical Processing Equipment Suitable for pumps, agitators handling acid, alkali and seawater media. Ceramic body resists chemical erosion. PTFE / PVDF retainer is recommended.

2. High‑Speed Precision Machinery Suitable for high‑speed spindles and test‑bench rotating parts. Low‑density ceramic balls reduce centrifugal force. PEEK retainer is preferred.

3. Non‑Magnetic & Medical Analytical Instruments Suitable for magnetic‑sensitive testing equipment and medical analytical devices. Zero‑magnetic ceramic avoids signal interference. All‑ceramic retainer suggested.

4. High‑Temperature & Vacuum Industrial Facilities Suitable for furnace conveyors and ultra‑high‑vacuum operating units. Ceramic maintains stability under wide temperature range. SUS316 metal retainer for heavy‑duty high‑temperature service.

Technical Information of Full Ceramic Bearing/ Pure Ceramic Bearing:

Technical Specifications – Partial List of Material Combinations
RING	BALL	CAGE	Max working Temp.	Anti-corrosion
ZrO2	ZrO2/Si3N4	PTFE	180℃	Excellent
ZrO2	ZrO2/Si3N4	PEEK	260℃	Excellent
ZrO2	ZrO2/Si3N4	PFA	180℃	Excellent
ZrO2	ZrO2/Si3N4	PA66/UPE/PP	90℃	Good
ZrO2	ZrO2/Si3N4	PET	110℃	Good
ZrO2	ZrO2/Si3N4	FT24	180℃	Excellent
ZrO2	ZrO2/Si3N4	PI	300℃	Excellent
ZrO2	ZrO2/Si3N4	PVDF	180℃	Excellent
ZrO2	ZrO2/Si3N4	NO CAGE	300℃~400℃	Excellent

Si3N4	Si3N4	PTFE	180℃	Excellent
Si3N4	Si3N4	PEEK	260℃	Excellent
Si3N4	Si3N4	PFA	180℃	Excellent
Si3N4	Si3N4	PA66/UPE/PP	90℃	Good
Si3N4	Si3N4	PET	110℃	Good
Si3N4	Si3N4	FT24	180℃	Excellent
Si3N4	Si3N4	PI	300℃	Excellent
Si3N4	Si3N4	PVDF	180℃	Excellent
Si3N4	Si3N4	NO CAGE	1100℃	Excellent

Packaging of Full Ceramic Bearing/ Pure Ceramic Bearing:

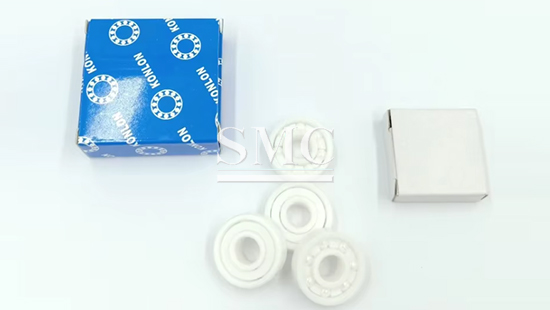

Standard Packaging:

Each full ceramic bearing is individually packed with anti‑collision foam bag to prevent chipping and scratch on ceramic surfaces. Items are placed into separate inner boxes, then loaded into reinforced export cartons. Cartons are secured on fumigated wooden pallets with strapping bands, covered with waterproof PE film for ocean transit.

Shipping:

We support FCL sea freight and LCL sea freight according to total order volume. Air freight and international courier are available for small‑batch spare‑part orders. Available trade terms include EXW, FOB, CIF. Other terms may be available upon request. Shipping costs are calculated based on cargo gross weight, volume, destination and selected transport method.

Lead Time:

Samples:20-30 working days

Standard orders: 30-35 working days

Customized orders: 40‑45 working days

Q1: What information do you need for a quotation of full ceramic bearings?

A: Please provide inner bore diameter, outer diameter, width and bearing type such as angular‑contact bearing. You also need to specify ceramic ball material grade (ZrO₂ / Si₃N₄ / SiC / Al₂O₃), retainer type, operating temperature limit, target rotating speed, radial & axial load requirements, clearance requirements, lubrication condition, order quantity, destination port and preferred trade terms. If you have special requirements on assembly tolerance, open‑type / sealed construction or custom specifications, share these details for an accurate quotation.

Q2: What is the MOQ and production lead time?

A: Standard full ceramic bearings have a low MOQ, small‑batch orders are acceptable. Custom‑made bearings generally require several hundred pieces as minimum order quantity.

Q3: What quality inspection can you provide for full ceramic bearings?

A: We carry out dimensional check, surface defect inspection and rotational smoothness test, and can offer corresponding inspection reports upon request.

Q4: How do I select suitable ceramic material grade for my working condition?

A: Si₃N₄ suits high‑speed & high‑load scenarios; ZrO₂ performs well under impact load; SiC fits strong corrosive environment; Al₂O₃ applies for cost‑sensitive light‑load applications.

Q5: What risks should be noticed during installation of full ceramic bearings?

A: Ceramic material is brittle. Heavy hammer knocking is forbidden; improper mounting force will cause edge chipping or invisible internal crack, which will lead to early failure in later operation.
