Mooring Equipment

Offshore Mooring Chain

    Material: U1, U2, U3




    Surface:galvanized & Self colored




    Certificate: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA

These requirements apply to the materials, design, manufacture and testing of chains and accessories intended to be used for applications such as: mooring of mobile offshore units and mooring of offshore loading systems. Mooring equipment covered are common stud and studless links, connecting common links, enlarged links, end links, shackles etc.



We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, SMC can offer you best quality as well as services.


Specification of Stud Link Chain
Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 98 kg to 3010 kg
U1 Stud Link Chain:
Proof Load: 46kn - 1290kn
Breaking Load: 66kn - 1840kn
U2 Stud Link Chain:
Proof Load: 66kn - 1840kn
Breaking Load: 92kn - 2580kn
U3 Stud Link Chain:
Proof Load: 92kn - 2580kn
Breaking Load: 132kn - 3690kn





We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, SMC can offer you best quality as well as services.


Specification of Open Link Chain
Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 85.41 kg to 2697.65 kg
U1 Open - Link Chain:
Proof Load: 28.75kn - 901.60kn
Breaking Load: 57.71kn - 1813.00kn
U2 Open - Link Chain:
Proof Load: 41.20kn - 1264.20kn
Breaking Load: 82.60kn - 2528.40kn
U3 Open - Link Chain:
Proof Load: 56.40kn - 1768.90kn
Breaking Load: 112.80kn - 3537.80kn

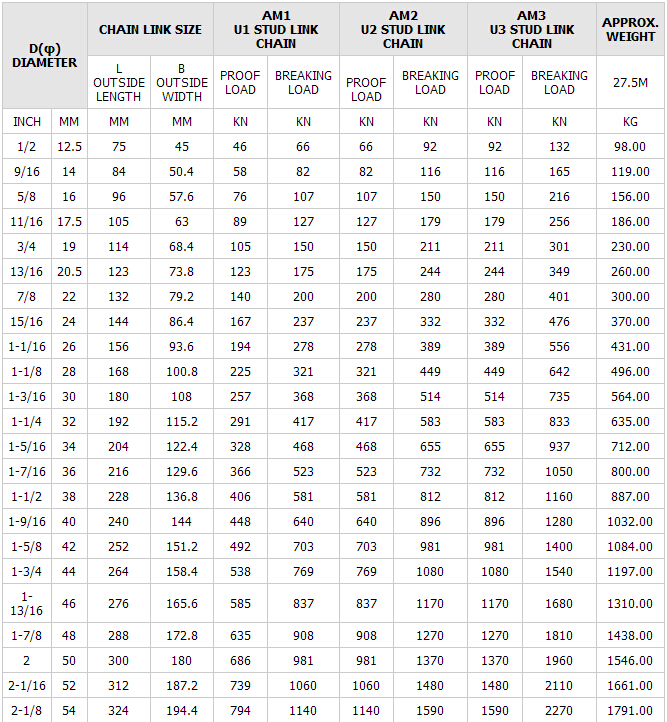

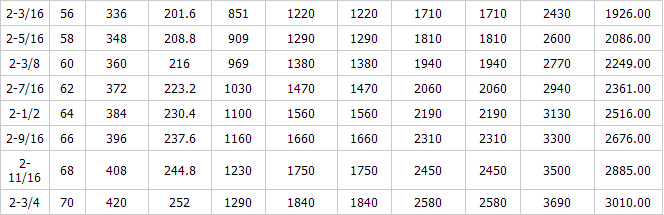

Parameter of Stud Link Chain
Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!

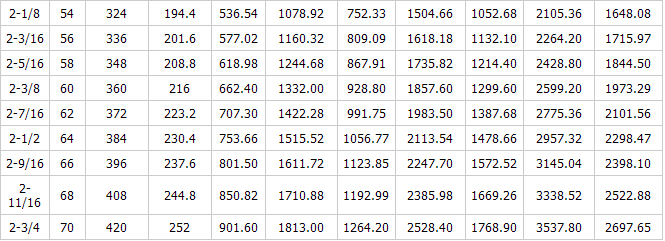

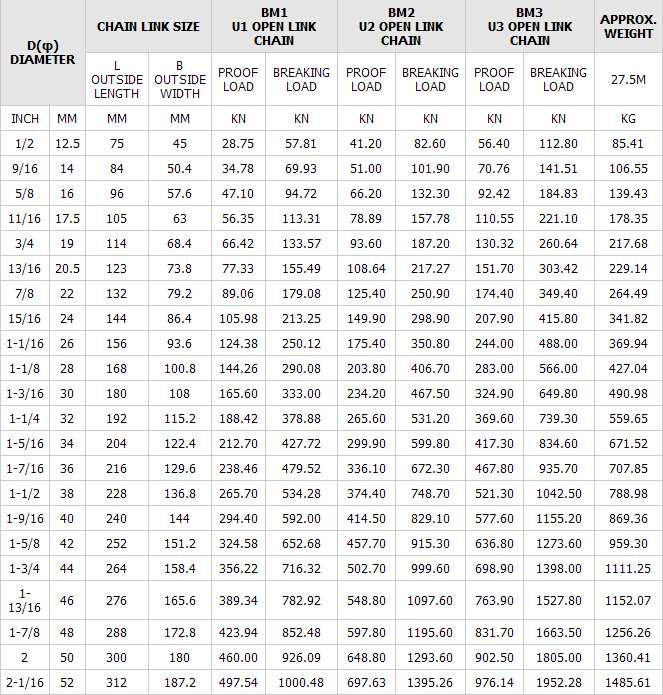

Parameter of Open Link Chain
Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!



Feature of Offshore Mooring Chain
1. Most stud link chain is used on larger vessels and is rarely available in sizes under 12.5mm diameter.
2. Stud link chain is normally supplied in shot lengths (27.5mtrs long) which can then be joined together using a Kenter shackle. Black bitumastic paint or galvanized finishes are available.

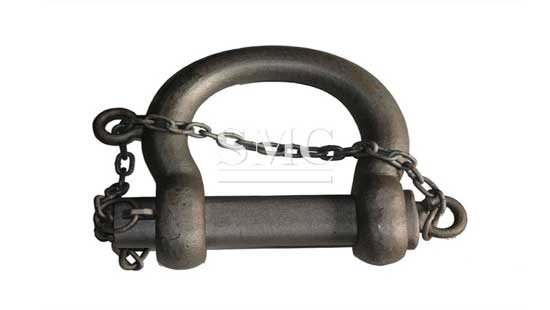

3. Continuous lengths can be made to order with optional extras with open end links, welded swivel assemblies, D type anchor shackles.

Package of mooring chain
SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Package material: wooden case and iron drum or bracket

Quality of Mooring Chain
Shanghai Metal Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Certificate of Offshore Mooring Chain
Marine chain has been recognized by 11 Classification Societies such as ABS, BV, CCS, CR, DNV, GL, KR, NK, RINA, RMRS, LR
