Open Top Container
Feature: For various loading methods
Supply: Container fittings
Acception: Special requirements
-

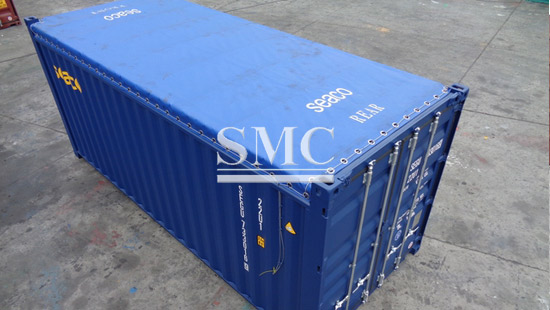

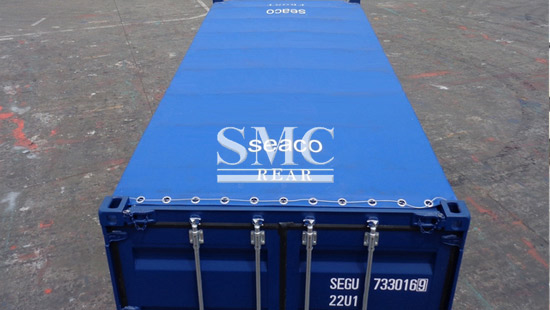

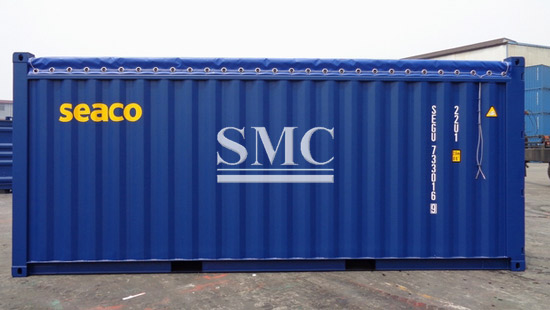

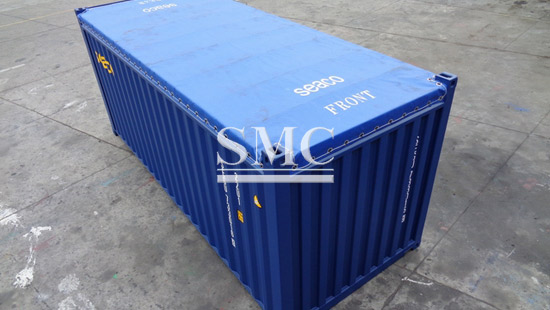

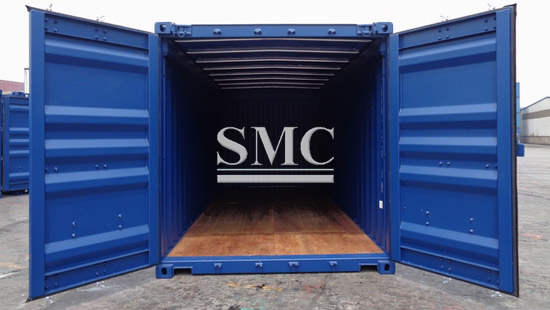

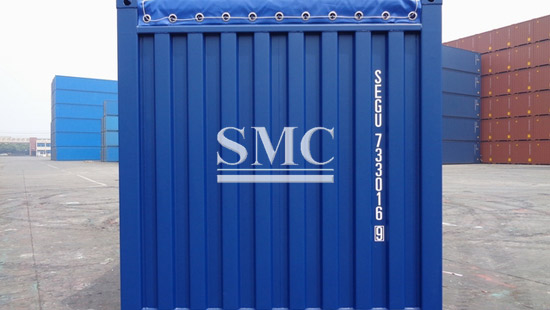

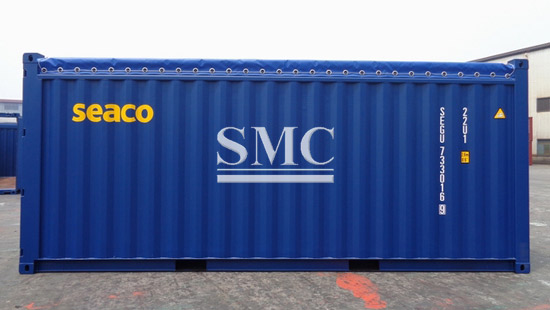

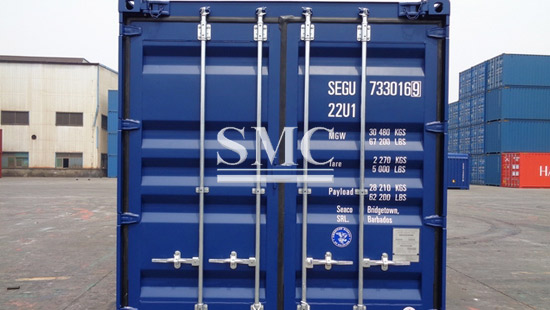

Shanghai Metal Corporation is a leading Open Top Container manufacturer and supplier. Open top containers are also called open top containers and open top cabinets. This kind of container does not have a rigid top, but there is a canopy made of foldable top beam supported by canvas, plastic cloth or plastic coated cloth. The top is covered with a tarpaulin when shipping. The watertight requirements are the same as the dry container.
-
-
-
Loading and unloading cargo is on the top of the box. It is suitable for loading large objects with large volume and heavy objects to be hoisted, such as glass plates. The open top container is used for loading heavy goods such as glass plates, steel products, machinery, etc., and can be loaded and unloaded from the top by using a crane, and the top of the open top box can be opened or has no fixed surface.
-
The frame container is a container made up of the bottom of the box and the surrounding metal frame, which is suitable for growing, overweight and light foaming goods. A canned container is a container consisting of the bottom of the tank and the tank and the surrounding frame, suitable for liquid cargo.
-
If you want to know more about our container products or Open Top Container price please feel free to contact us, we will reply you within 24 hours.
Dimensions and Capacities of 20 Feet and 40 Feet Open Top Containers:
20ft Open Top
Container
40ft Open Top
Container
Dimension
Millimeter
Feet
Millimeter
Feet
External
Length
6,058
20'
12,192
40'
Width
2,438
8'
2,438
8'
Height
2,591
8'6"
2,591
8'6"
Internal
Length
5,897
19'4 1/8"
12,030
39'5 5/8"
Width
2,350
7'8 1/2"
2,350
7'8 1/2"
Height
Middle
2,377
7'9 1/2"
2,377
7'9 1/2"
Side
2,347
7'8 3/8"
2,347
7'8 3/8"
Roof
Length
5,338
17'6 1/8"
11,573
37'11 5/8"
Width
2,230
7'3 3/4"
2,210
7'3"
Door
Width
Widest
2,338
7'8"
2,338
7'8"
Swing Header
1,902
6'2 7/8"
1,902
6'2 7/8"
Between
2,230
7'3 3/4"
2,210
7'3"
Height
Up to
2,280
7'5 3/4"
2,292
7'6 1/4"
Up to
2,231
7'1"
2,131
6'11 7/8"
Weight
Kilogram
Pound
Kilogram
Pound
Max Gross Weight
30,480
67,200
30,480
67,200
Tare Weight
2,350
5,180
3,850
8,490
Maximum Payload
28,130
62,020
26,630
58,710
Capacity
Cube Meter
Cube Feet
Cube Meter
Cube Feet
32.5
1,148
66.4
2,345
Allowable
Stacking Weight（1.8G）
192,000
423,280
216,000
476,190
Opening
Opening
point
openings
Top rails
Door Header
Top rail
General
1. Operational Environment
The container is designed and manufactured for the carriage of general cargo by marine, road, and rail. It is designed to maintain its structural and weather tight integrity within a temperature range of -30 degree C to 80 degree C.
2. ISO/TC
All to meet series 1 freight containers set forth.
ISO 830 Freight containers-Terminology.
ISO 668 Series 1 freight containers-Classification, external dimensions and ratings.
ISO 6346 Freight containers-Coding, identification and marking.
ISO 1161 Series 1 freight containers-Corner fittings-specification.
ISO 1496-1 Series 1 freight containers-Specification and testing-
3. T.I.R. Requirements and Certifications
The container shall comply with the customs convention of containers, 1972 and all subsequent revisions to date and will be identified with appropriate approval plates and markings.
4. Timber Component Treatment and Certification
All exposed timber components are treated with an Australian government approved insecticide and the container will be such identified with appropriate immunization plate.
5. CSC Requirements
The container will comply with the rules set forth in the International Convention for Safe Containers and will be so identified with a plate.
6. Classification Society
The container will be certified by Classification Society’s in design and individually during its production.
7. Transportation
The container will be constructed to be suitable for transportation in normal operating conditions by
modes of:
A. Marine - on deck or in cell guided by vertical or diagonal lashings
B. Rail - on flat or container car secured at its bottom corner fittings
C. Road - on flat or chassis secured at its bottom corner fittings
Warranty
1. Guarantee
The guarantee period will commence the day after the certification is issued by the classification society.
2. Paint Guarantee
The application of paint will be guaranteed against corrosion and paint failure for a period of three (3) years. The guarantee is for all faults affecting more than 10% of the painted surfaces and will assure partial or total re-painting of the containers. Normal wear/tear, or corrosion caused by acid, alkali or results of damages by abrasion, impact or accident are excluded.
Note: Corrosion is defined as rusting which exceeds RE3 (European scale of degree of rusting) on at least ten (10) percent of the total container surface coated with the concerned coating system.
3. Other Guarantee
This container will be guaranteed against any defects or omissions in constructions, workmanship and materials for a period of Twenty-four (24) months. In the event of defects, SMC will replace, correct or install to make the container satisfactory to this specification and its intended service at SMC's expense. Any damages caused by mis-handling, mis-securing, mis-loading, impact and any natures of accidents are excluded.
