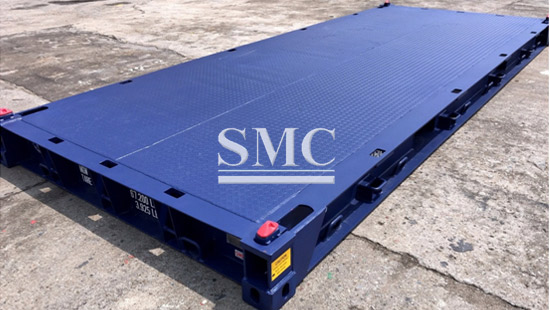

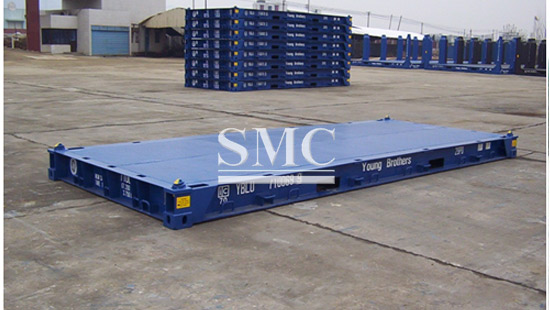

Especially for heavy loads and oversized cargo



    Strong bottom construction.



    Gooseneck tunnel on both ends of all 40’ platforms.

  • 1. Especially for heavy loads and oversized cargo

    2. Strong bottom construction.

    3. Gooseneck tunnel on both ends of all 40’ platforms.

    4. Static load up to 85 000 kg as a 40’ foundation base. On request available.

    5. Other features please see comparatively flat series.

    6. Timber treated according to Australian requirements.

    7. Numerous very strong lashing devices

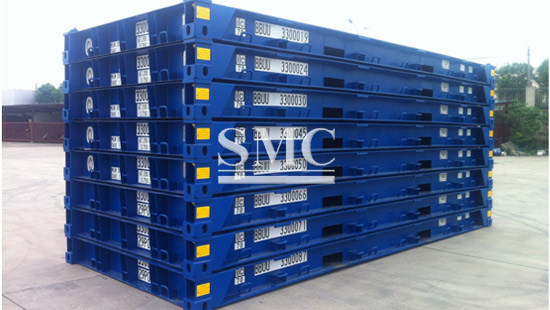

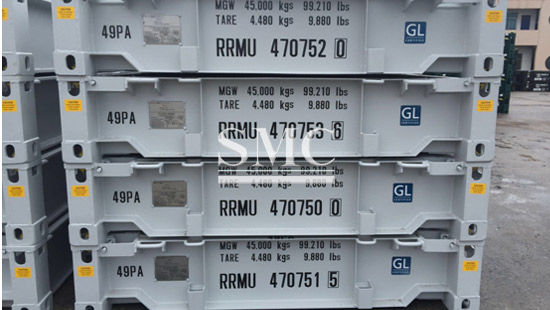

  • 8. Easy handling/transportation: 20’ interlocked pile of max. 7 units 40’ interlocked pile of max. 4 units Combined height of less than 2 591 mm 8’6”.

    9. Transport of heavy loads concentrated on a small load transfer area is possible

    10. Special requirements for big and more heavy cargoes, please contact our special cargo department.

    11. Solution plans are already worked out or will be calculated.


Technical Information of Platform:



Inside Dimensions

Weights

Construction

Length mm ft

Width mm ft

Height of bottom mm ft

Max. Gross kg lbs

Tare kg lbs

Max. Payload kg lbs

1'1-1/4'' high   20'

6 058
20'

2 438
8'

370
1'2-1/2''

30 480
67 200

2 520
5 560

27 960
61 640



6 058
20'

2 438
8'

370
1'2-1/2''

34 000
74 950

2 740
6 040

31 260
68 910



6 058
20'

2 438
8'

370
1'2-1/2''

40 000
88 180

2 940
6 480

37 060
81 700

Steel container with collapsible flushfolding
endwalls - can be converted to a platform

6 058
20'

2 438
8'

370
1'2-1/2''

32 500
71 650

4 050
8 929

28 450
62 721

2' high            40'

12 192
40'

2 245
7'4-3/8''

648
2'1-1/2''

45 000
99 210

5 700
12 570

39 300
86 640



12 192
40'

2 245
7'4-3/8''

648
2'1-1/2''

50 000
110 230

5 950
13 120

44 050
97 110

Steel container with collapsible flushfolding
endwalls - can be converted to a platform

12 192
40'

2 245
7'4-3/8''

648
2'1-1/2''

55 000
121 250

5 850
12 900

49 150
108 350
