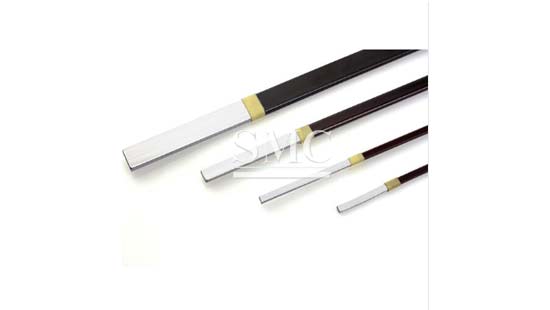

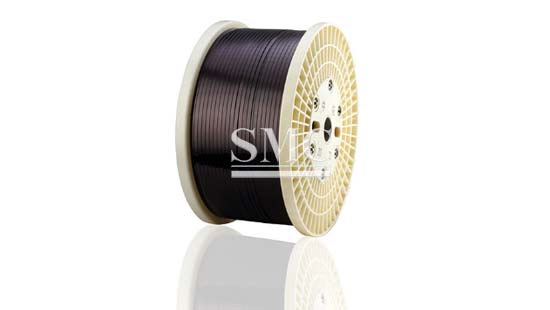

Rectangular Enameled Aluminum Wire For Generator

    Flat wire thickness: 1.0mm - 5.0mm

    Flat wire width: 3.00mm - 16.00mm

    Width/thickness ratio: 1.5<w/t<7.5

Among all of its high-tech magnet wire products, Shanghai Metal Corporation offers a complete range of
rectangular enameled wire with aluminum as the conductor.
We pride ourselves in excellent quality products with competitive pricing and prompt delivery.

Specifications of Rectangular Enameled Aluminum Wire:
1) Flat wire thickness: 1.0-5.0mm
2) Flat wire width: 3.00mm - 16.00mm
3) Width/thickness ratio: 1.5<w/t<7.5
4) Type: Rectangular
5) Standard: IEC 60317-16, 60317-16/28, MW36 60317-29 BS6811
 MW20 60317-47
6) Thermal Class:130℃ ,155℃, 180℃ ,200℃, 300℃
7) Cross section range: 2mm2 - 80mm2
8) Range of insulation thickness: IEC60317-0-2 G1, 0.06mm - 0.11mm G2, 0.12mm - 0.17mm
9) Enamel base coat:
   a) Polyester
   b) Modified Polyester
   c) Polyester-Imide
   d) Polyvinyl fomal Polyimide
10) Heat shock: 155℃ - 300℃

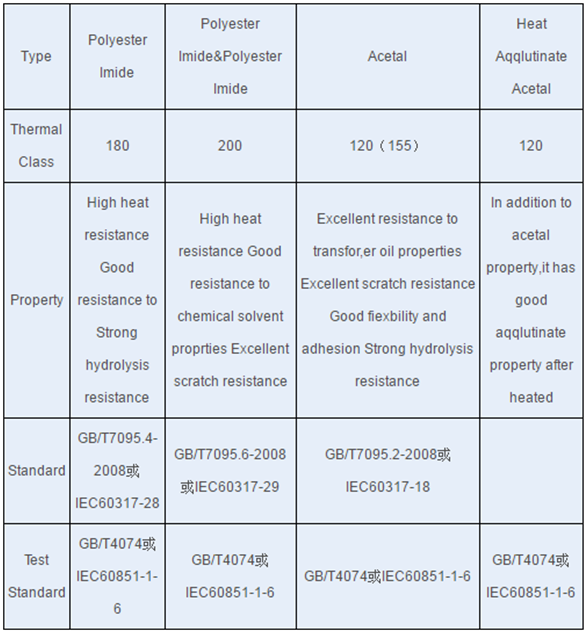

Parameters of Rectangular Enameled Aluminum Wire:

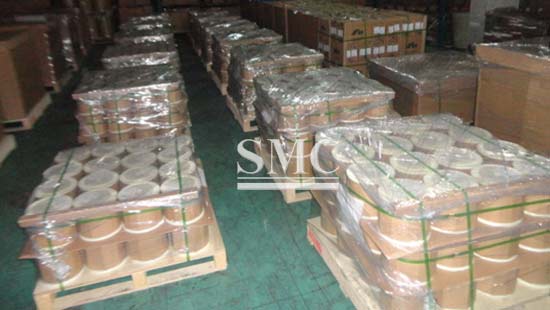

Packaging of Rectangular Enameled Aluminum Wire

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Rectangular Enameled Aluminum Wire:

1) 120 degree flat enameled wire for oil-immersed transformer

2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil

3) 200 degree flat enameled wire works constantly in high temperature

4) 240 degree flat enameled wire for magnet coils of aviation, military and marine appication



Features of Rectangular Enameled Aluminum Wire:

1) High temperature resistance

2) Chemical corrosion resistance

3) Transformer oil resistance

4) Low temperature resistance

5) Radiation resistance

6) High breakdown voltage

7) Good mechanical properties

8) Other features: Self-bonding, solderable
