Stainless Steel Fitting

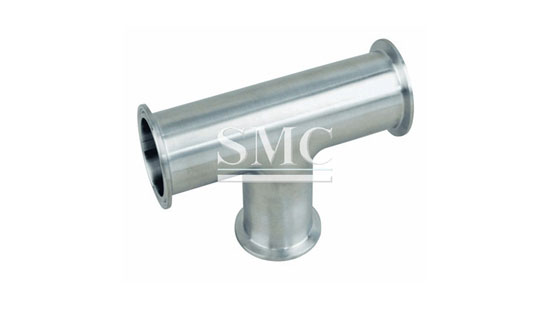

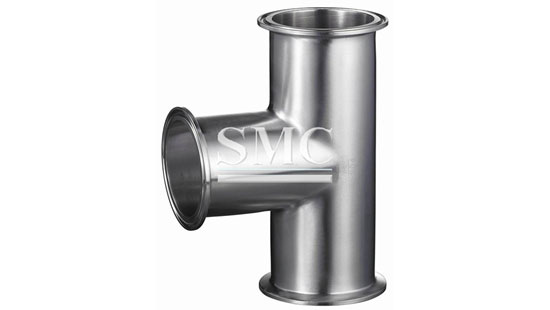

Sanitary Stainless Steel Tee

    Size: DN25-DN100, 1"- 4"


    Standards: ISO, IDF, DIN, SMS, 3A


    Material: SUS304, SUS316L

Specification of Sanitary Stainless Steel Tee:


1. Size: DN25-DN100, 1"- 4"
2. Standards: ISO, IDF, DIN, SMS, 3A
3. Material: SUS304, SUS316L
4. Filtration precision: 0.45, 0.10, 0.65, 1.0, 3.0, 5.0, 10.0 (μm)
5. Filter material: polytetrafluoroethylene (PTFE), polypropylene (PP), polyether sulphone (PES/PS),
    PVDF (PVDF), nylon (N6, N66), mixing fine (CN - CA)
6. Working temperature: < 125
7. Filter quantity: 1-14. (a)
8. Connecting forms: welding, fern, thread, flange
9. Sealing material: EPDM, FPM

Surface treatment of Sanitary Stainless Steel Tee:


Inside surface treatment: Ra≤0.8μm/1.6μm
Outer surface treatment: Ra≤0.8μm/1.6μm


Types of Sanitary Stainless Steel Tee:

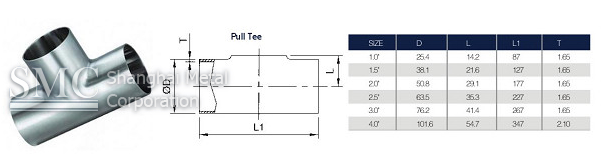

BS Pull Tee

SMS Tee

3A Tee

Clamp Tee

Package of Stainless Steel Pipe Fitting:


The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.

Application of Sanitary Stainless Steel Tee:


Ultra-pure water and filtering; Ultra pure electronic chemical solution filtering; Fermentation tank, tanks, ingredients cans, Sterile exhaust, inlet filtration; Electronic industrial high purity gases filtering.
