Steel Stair Tread- GI Grating Stair For Pedal

    Type: JT1-JT8



    Installation: Welded fixing/bolted fixing



    Material: Q235 in line with GB/T700 steel

Specifications of Steel Stair Tread:
1) Size: tread length by width, the length direction of tread refers to the width direction of ladder
2) Material: Q235 in line with GB/T700 steel, steel or stainless steel
3) Surface treatment: Hot-dip galvanizing, paint or other anti-corrosive coatings are available, of which hot-dip galvanizing is generally recommended

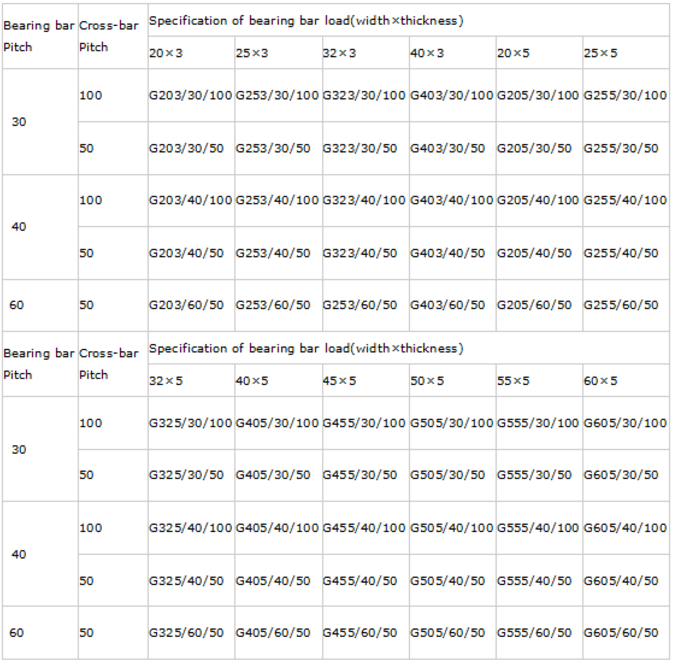

4) Standards: YB/T4001.1-2007, ANSI/NAAMM, BS4592, AS1657 5. Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mm are recommended

5)  Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended



Features of Steel Stair Tread:
1) Easy installation
2) Strong structure
3) Aesthetic appearance
4) Good water permeability
5) Quality assurance


Stair treads are divided into four models due to whether the front checkered plate and the mode of connection with ladder beam,

labeled T1, T2, T3, T4, T5, T6.

T1: Welding fixing stair tread without front plate.
T2: Bolt fastening stair tread without front.
T3: Welding fixing stair tread with front checkered  plate.
T4: Bolt fastening stair tread with front checkered plate.
T5: Welding fixing stair tread without front Anti-slip strip.
T6: Bolt fastening stair tread with front Anti-slip strip.

Description of Steel Stair Tread:

1) Bearing bar: 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

2) US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'', etc.

3) Bearing bar pitch: 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.

4) US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2, etc.

5) Cross bar: 5x5, 6x6, 8x8mm (twisted bar or round bar)

6) Cross bar pitch: 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement

7) Flat bar type: Plain, Serrated (tooth-like), I bar (I section)

8) Materials: Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A), Stainless steel, aluminum alloy, etc.

9) Galvanizing standard: CN: GB/T13912, US: ASTM (A123), UK: BS729

10) Steel grating standards:

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E. Japan: JJS

11) Surface treatment: Black, Electrogalvanized (Cold dip galvanized), Hot dipped galvanized, Painted, Powder coated, or as customers’ requirements. And hot dipped galvanizing is generally recommended.





Types of Stair Tread

8 Standard types of stair tread, with welded fixing and bolted fixing, different nosing forhead, we also accept customization according to your different requirement.



Manufacturing of Steel Stair Tread

Material  Welding  Cutting  End plate welding  Surface treatment  Final shipment

Packaging of Steel Stair Tread

Shanghai Metal Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

1) Shanghai Metal Standard

2) Customization


Shanghai Metal provides the customer with standard seaworthy pacakging, steel grating product standard packaging with wooden pallet and flat steel strip fixed.
