Steel Strand Wire - Strand Wire for ACSR, Stay Wire, Guy Wire
Grade: carbon steel
Standard: ASTM,BS183,IEC,GB,DIN,JIS
Surface: galvanized or ungalvanized
Shanghai Metal Corporation is one of a leading manufacturer in Galvanized Steel Strand Wires and Pre-stressed concrete(PC) steel strand wire since 1980s.
Galvanized steel stranded wire usually refers to cables used for messenger wires, guy wires, core wires or strength members, and can also be used as ground wires for overhead power transmission, barrier cables on both sides of highways, or structural cables in building structures.Galvanized steel strands with a structure of 1 × 7 and specifications of 5.4mm, 6.0mm, 6.6mm, and 9.0mm can be used for overhead wire pulling of postal and telecommunications poles.
Pre-stressed concrete(PC) steel strand is a twisted steel cable composed of 2, 3, 7 or 19 high-strength steel wires, which has undergone stress relief treatment (stabilization treatment) and is suitable for pre-stressed concrete and similar applications.
If you want to know more about Galvanized Steel Strand Wire or Pre-stressed concrete(PC) Steel Strand Wire price, please feel free to contact us, we will reply you within 24 hours
Details of Steel Strand Wire:
|
Construction |
Nominal dia(mm) |
Min.breaking load(kN) |
Linear density(Kg/100m) |
|
1x7 |
1.00 |
1.10 |
0.47 |
|
1.20 |
1.47 |
0.71 |
|
|
1.40 |
1.62 |
0.98 |
|
|
1.60 |
2.37 |
1.25 |
|
|
1.80 |
3.04 |
1.60 |
|
|
2.00 |
3.79 |
2.00 |
|
|
2.30 |
5.00 |
2.64 |
|
|
2.60 |
6.01 |
3.36 |
|
|
3.00 |
7.99 |
4.45 |
|
|
3.60 |
10.71 |
6.40 |
|
|
4.20 |
14.58 |
8.72 |
|
|
4.80 |
17.73 |
11.38 |
|
|
5.40 |
22.45 |
14.40 |
|
|
6.00 |
27.72 |
17.78 |
|
|
1x19 |
1.50 |
2.13 |
1.08 |
|
1.80 |
3.07 |
1.56 |
|
|
2.20 |
4.60 |
2.34 |
|
|
2.50 |
5.94 |
3.02 |
|
|
3.00 |
8.07 |
4.34 |
|
|
3.50 |
10.97 |
5.91 |
|
|
4.00 |
14.35 |
7.22 |
|
|
5.00 |
19.74 |
12.06 |
|
|
6.00 |
28.43 |
17.38 |
|
|
7.00 |
38.70 |
23.65 |
|
|
8.00 |
47.10 |
30.89 |
|
|
9.00 |
59.62 |
39.09 |
|
|
10.00 |
73.60 |
48.26 |
|
|
11.00 |
89.05 |
58.39 |

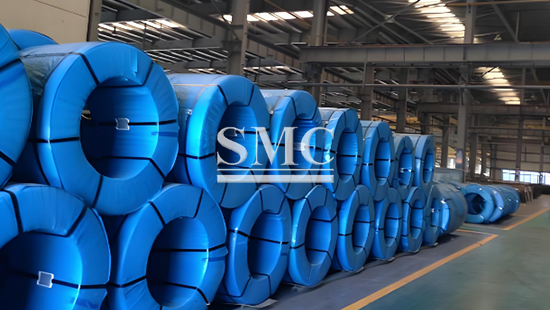

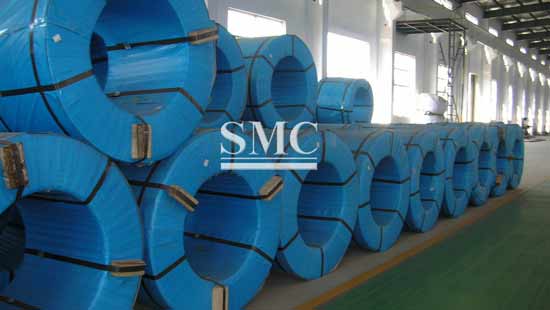

Packaging of Steel Strand Wire:
Shangahi Metal Corporation Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.
Application of Steel Strand Wire:
- ACSR
- Ground Wire
- Communication Cable
- Messager Wire
- Guying Wire
- Fishing lines
- Leaders
- Standard rigging on boats
