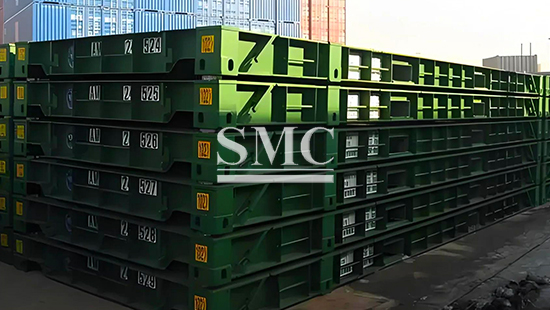

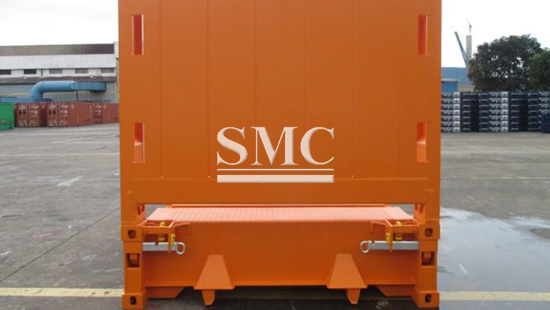

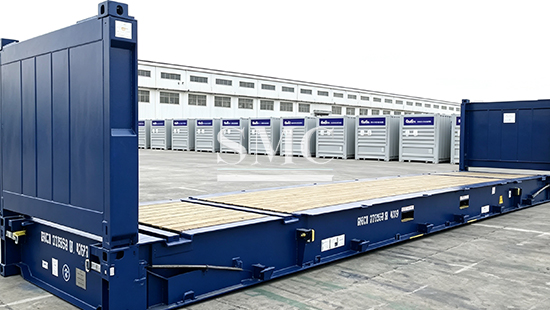

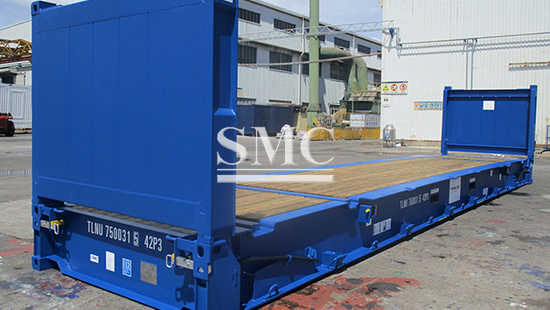

Flat Rack Container
Size: 20ft/40ft
Type: Pillar type/Fence type
Tare Weight: 2750KG/4900KG
Max Payload: 31250KG/40100KG
-
Shanghai Metal Corporation is a leading Flat Rack Containers manufacturer and supplier. Flat rack container refers to a container for loading long, overweight and light foam cargoes, such as steel, wood, machine tools, heavy machinery, steel pipes, etc., which are not suitable for dry or open containers. If you want to know more about our container products or Flat Rack Containers price please feel free to contact us, we will reply you within 24 hours.
-
-
-
Especially for lumbers and pipes.
With fixed standing legs at four top corners.
Fixed steel floor.
With forklift pocket for loading lifting.
All of our containers are new and for sales only, in case of special requirements please contact us for further detailed information. SMC also provides various container fittings, such as container hinge, door locking set, seal strip, and marine plywood.
Dimensions and Capacities of 20' and 40' Flat Rack Container:
20ft Flat Rack Container
Dimension
Millimeter
Feet
External
Length
6,058
20'
Width
2,438
8'
Height
2,591
8'-6''
Height (End frame folded)
371
1'-2 5/8
Internal
Length
5,638
1-8'-6
Width
2,194
7'-2 3/8
Height
2,233
7'-4
Weight
Kilogram
Pound
Max Gross Weight
34,000
74,960
Tare Weight
2,750
6,060
Maximum Payload
31,250
68,890
Allowable Stacking Weight（1.8G）
192,000
423,280
40ft Flat Rack Container
Dimension
Millimeter
Feet
External
Length
12,192
40'
Width
2,438
8'
Height
2,591
8'-6''
Height (End frame folded)
648
2'-1 1/2
Internal
Length
11,752
38'-6 11/16
Width
2,374
7'-9 1/2
Height
1,959
6' 5 1/8
Weight
Kilogram
Pound
Max Gross Weight
45,000
99,210
Tare Weight
4,900
10,800
Maximum Payload
40,100
88,410
Allowable Stacking Weight（1.8G）
192,000
423,280
Specification of Flat Rack Container:
Material: Corten-A steel
Floor: Steel or Wooden

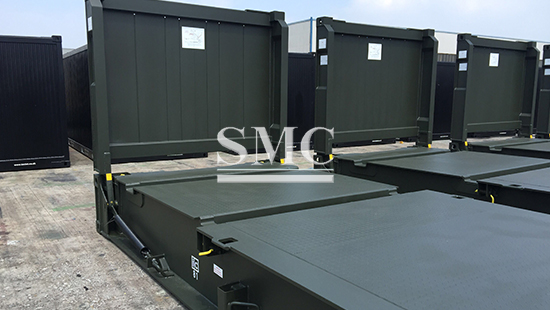

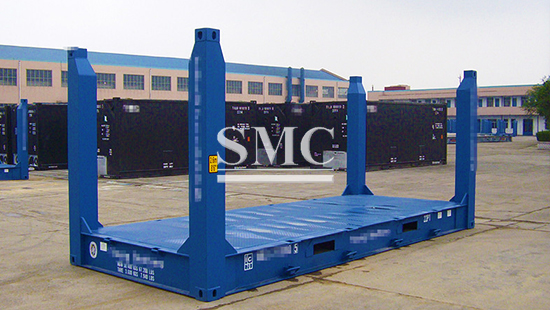

Four types: pillar type and fence type. (collapsable and uncollapsable)
Structure: no roof and side walls, and the end wall of the box can also be removed.
The bottom of the box and the four corner columns are used to bear the load. The container removed from the end wall of the box is also called a platform container or a flat container, which can be on the top or side of it.
Testing & Inspection
1 Materials and Parts Inspection
All materials and parts are inspected by the manufacturer's Quality Control department to ensure they are up to the specification called fr in the design.
2 Production Line Quality Control
All containers are manufactured under effective quality control procedures to meet the specified standards. All dimensions are checked and smoothe operation of the doors are ensured after each container's completion. A light and watertight test is conducted on all containers.
Quality control personnel independent of the production dept. will be inspecting on all phaes of the production as well as ad hoc inspections by the calssificatin soceity's surveyor and buyer's representatives to assure the quality of the container.
Warranty
1 Guarantee
The guarantee period will commence the day after the certification is issued by the calssifcation society.
2 Paint Guarantee
The application of paint will be guaranteed against corrosion and paint failure for a period of three years. The guarantee is for all faults affecting more than 10% of the painted surfaces and will assure partial or total re-painting of the contianers. Normal wear/tear, or corrosion caued by acid, alkali or results of damages by abrasion, impact or accident are excluede.
Note: Corrosion is defined as rusting which exceed RE3 (European scale of degree of rusting) on at least ten percent of the total container surface coated with the concerned coating system.
3 Other Guarantee
This container will be guaranteed againt any defect or omissions in construction, workmanship and materials for a period of 24 months. In the event of defects, FACTORY will replace. correct or install to make the container satisfactory to this specification and its intended service at FACTORY's expense. Any damages caused by mis-handling, mis-securing, mis-loading, impact and any natures of accidents are excluded.
