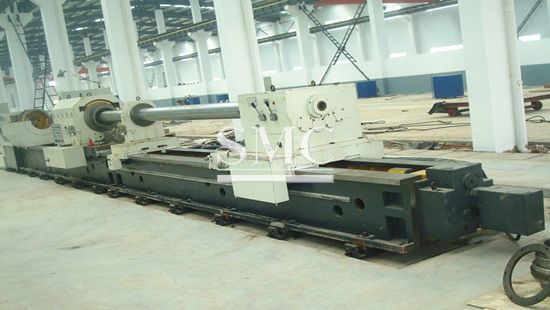

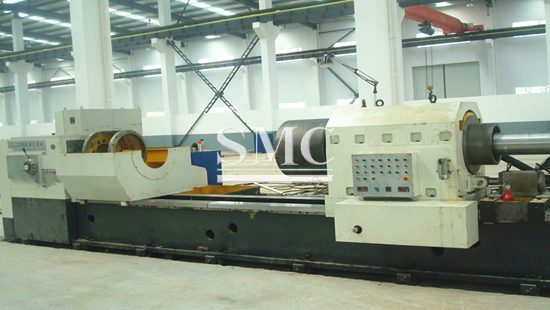

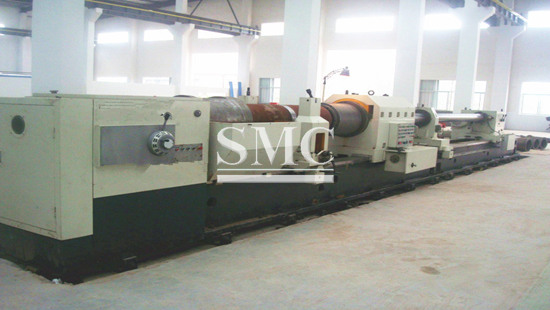

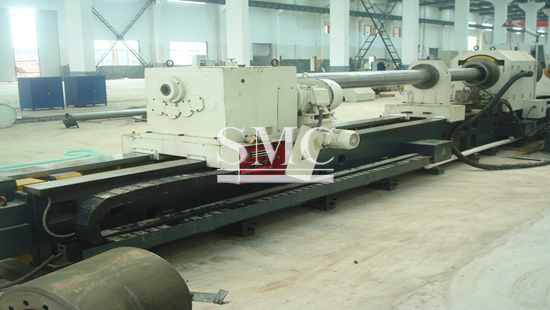

    T2150/1-10m deep hole boring machine


    with funuc CNC system,



    with triangle rail ("V"),  width of rail:800mm



    with ring center rest

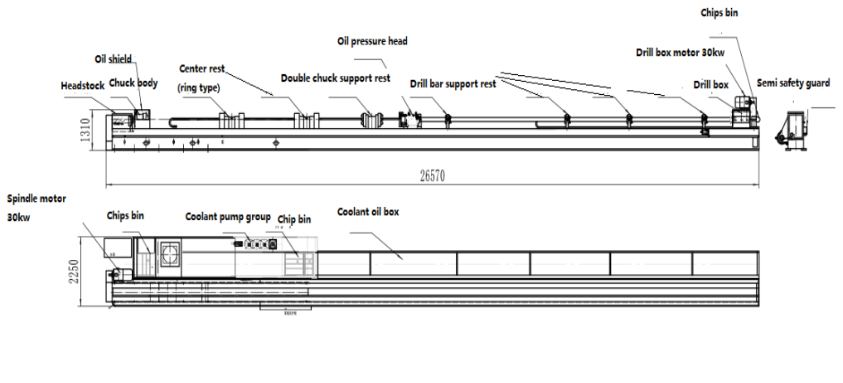

Product Detail

T2150/1-10m deep hole boring machine

with funuc CNC system,

with triangle rail ("V"),  width of rail:800mm

with ring center rest

the oil box is on the ground (can get 200L/min, 400L/min,600L/min,800L/min flow by rotate tune)

drilling hole diameter range: 50-120mm

boring hole diameter range: 50-500mm

max depth of deep hole: 10m

center height: 625mm

ring center rest diameter range: 60-300mm

roller center rest supporting range: 300-650mm

main motor: N=30kw

main shaft speed:  3.15~315r/min , grade 12

drilling box revolution speed: 60—1000r/min   grade12

drilling box motor: N=30kw

drilling box main shaft front bore-hole 140

carrier feeding speed:5~1000mm/min (stepless)

carrier moving speed:2m/min

feeding motor: N=7.5kw

carrier fast motor:N=5.5kW

cooling pump motor: N=7.5kw X4 (set)

cooling system pressure: 2.5Mpa

cooling system flow capacity: 200、400、600、800L/min

machine size: 29.5mX3800mmX1900mm

machine weight : about 35ton

max load weight: 10ton


knife accessories: by user

cutting oi and lubrication oil: by user

processing precison:

drilling : hole diameter precison:I T9-11,

surface roughness: Ra6.3-Ra12.5

streight line degree of processing hole: <0.15/1000mm

outlet deflection of processing hole center line: <2mm/10000mm

standard: GB/T 9061-2006, GB5226.1-2002,JB/T6088.7-2006, JB/T6088.1-2006

Inspection and overseas service

1 user come to factory to pre-inspect and final-inspect,

when finish, both party sign inspection munites.

2 service such as installation, debug, test and traing will provided after machine arrival to user factory.


Documents provided after contract effective
Manual book:
a)Machine mechanical manual book
Hydraulic system principle drawings
Lubrication system principle drawings
Machine foundation principle drawings
Driven system drawings
Bearing distribution drawings
Maintain all driven box and mainly parts assemble drawings.
b)Electrical usage drawings :
Electrical principle drawing
Electrical cable connection drawing
c) Outside purchase parts manual if have.
