Copper & Brass Sheet / Plate

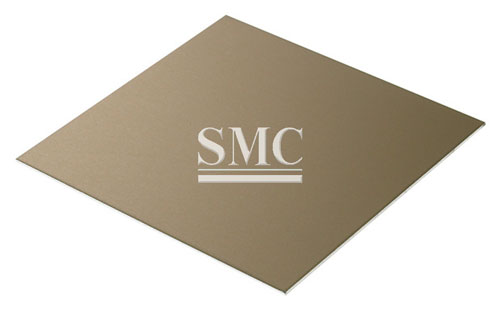

Aluminum Bronze Sheet/Plate

    Grade: C95400, C63200, C63000, C61400



    Thickness: 0.125mm - 3.75mm or custom



    Width: 36mm - 48mm or custom



    Length: 96mm - 120mm or custom

Specifications of Aluminum Bronze Sheet:
1) Grade: C95400, C63200, C63000, C61400, CuAL10Fe3, CuAL11Fe5Ni5, AB series, CAC series, CDA series, etc.
2) Thickness: from 0.125mm to 3.75mm or custom
3) Width: from 36mm to 48mm or custom
4) Length: from 96mm to 120mm or custom
5) Average Physical Properties: Tensile 85,000 psi, Yield 35,000 psi, Elongation 42%, Brinell Hardness = 153
6) Standard: GB/T13808-1992, GB/T4423-2007, GB/T1176-1987, GB/T2040-2002, ASTM B150, ASTM B30, ASTB B103, ASTM B505,

JIS H5111:1988, JIS H3250 : 1992, GOST 18175, EN 1982 : 1998, QJC, etc.

7) Chemical composition:



Features of Aluminum Bronze Sheet:
1) Excellent resistance to seawater corrosion
2) High intensity, up to 800MPa
3) High hardness, up to HB180
4) Good anti-friction
5) Well finished and polished
6) Better operational life
7) Convenient handling
8) Mechanical properties are stable in the processing at 400 ℃ ambient temperature

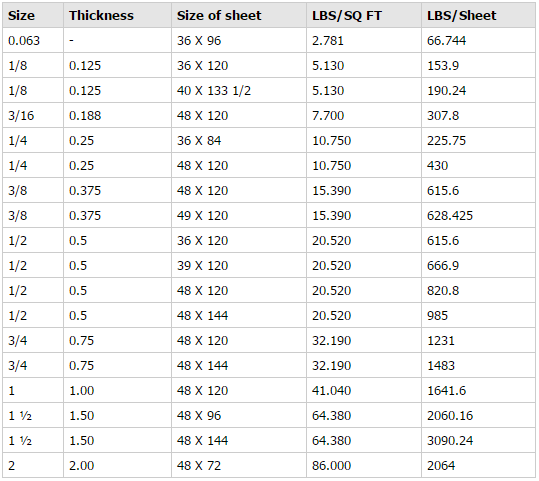

Parameters of Aluminum Bronze Sheet:

(Customized sizes are accepted)

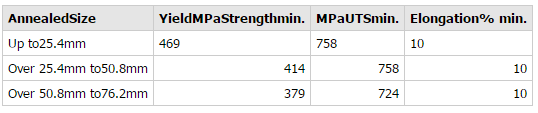

Heat Treatment:

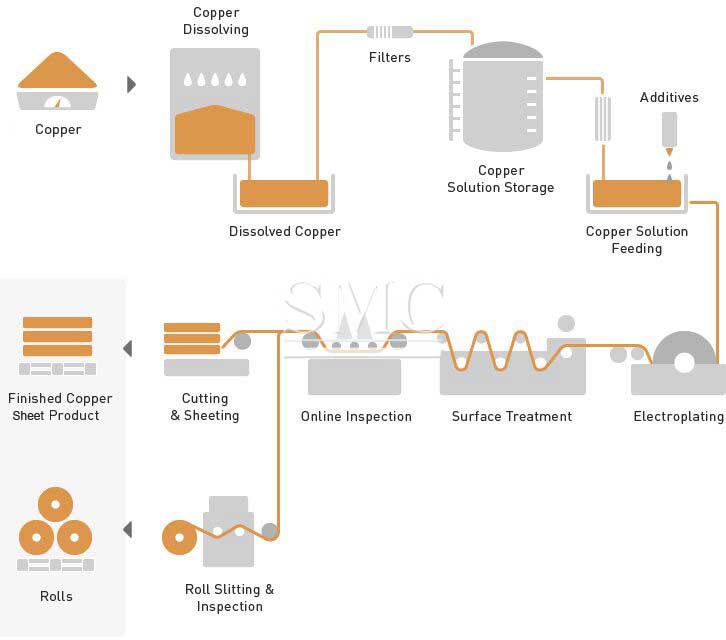

Manufacturing of Aluminum Bronze Sheet/Plate

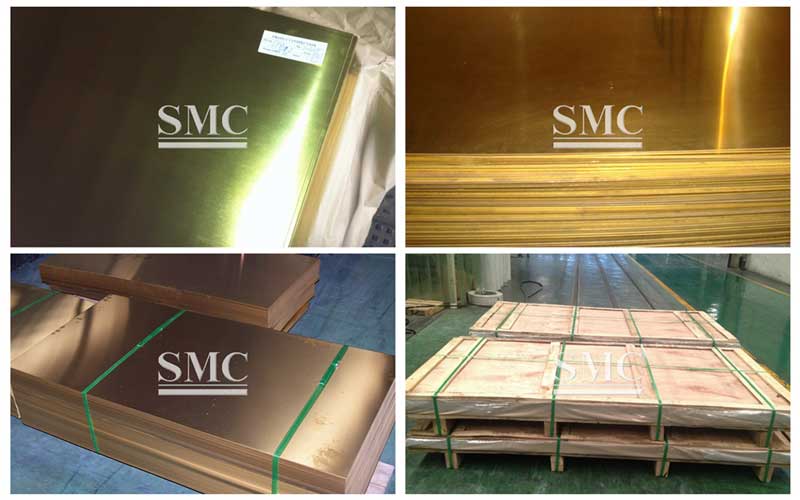

Packaging of Aluminum Bronze Sheet/Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Aluminum Bronze Sheet/Plate:

1) Bushings

2) Bearings

3) Gear parts

4) Ship-building

5) Fasteners

6) Machinery

7) Aviation

8) Manufacturing sectors

9) Wear Plates

10) Structural Units in Process Equipment

11) Vessels with High Pressure Requirements

12) Heat Exchangers

13) Cylinder Mold Tie Rods

14) Ball Socket Seats, etc.
