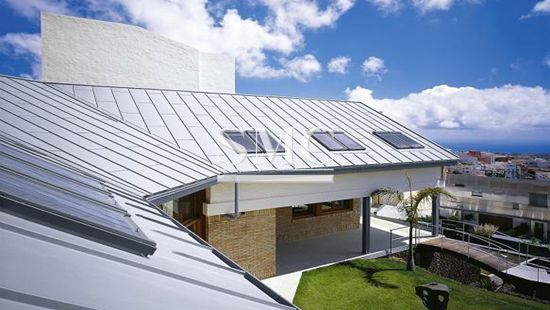

Roofing and Ceiling

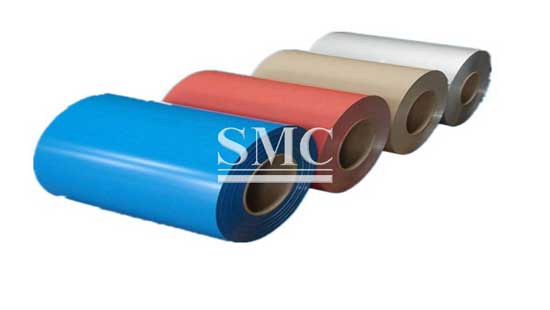

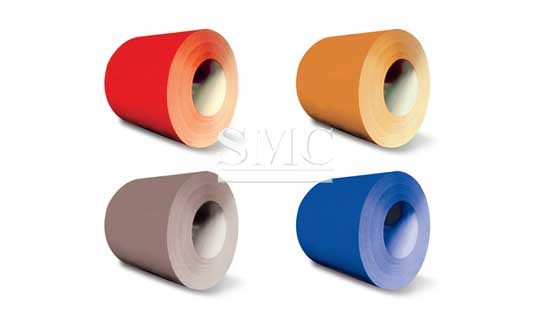

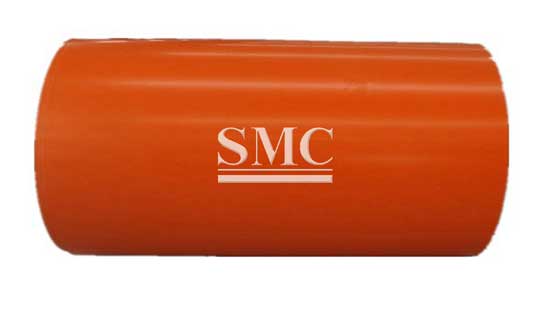

Colour Coated Aluminium Coil For Roofing

    Grade: 1000, 3000, 5000, 8000series

    Thickness: 0.05mm - 3mm

    Width: max. 2200mm

Color Coating Aluminum Sheet/ Coil is the aluminum sheet/ aluminum coil coated

with PE/PVDF paint on surface. The most popular coating aluminum material is

PVDF aluminum sheet/ coil, which are widely used in aluminum plastic panel,

aluminum ceiling, popo can and electronic products. The color coated aluminum

sheet/ aluminum coil is featured with stable chemical property, good anti-corrosion

performance, long warranty period, light weight and so on.

Specifications of Colour Coated Aluminium Coil:
1) Grade
   a) 1000 Series: 1050, 1060, 1100, 1200, etc.
   b) 3000 Series: 3003, 3004, 3005, 3104, 3105, etc.
   c) 5000 Series: 5005, 5052, 5182, 5454, 5754, etc.
   d) 6000 Series: 6061, 6063, 6082, etc.
   e) 8000 Series: 8006, 8011, 8079, etc.
2) Thickness: Roll Coating 0.05mm - 3.0mm, Plate Coating up to 10mm
3) Width: max. 2200mm
4) Temper: H1X, H2X, H3X, H4X
5) Color: Metallic, Solid, RAL or by customer requirements
6) Coating paint: PVDF, PE
7) Coating thickness: as per customer’s request
8) Protective film: PVC film, Colorless transparent or White-black

Manufacturing of Colour Coated Aluminium Coil

Decoiler → Accumulator → Tension Leveller → Acid & Alkali Cleaner → Rinse → Conversion Treatment → Priming coater → Infrared Curing Oven → Main coater → Floatation Curing Oven → Strippable Film Applicator → Exit Accumulator → Recoiler

Packaging of Colour Coated Aluminium Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Our Service

To meet the entirety of our customers business needs, Shanghai Metal Corporation offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Shanghai Metal Corporation prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.

Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

Applications of Colour Coated Aluminium Coil:
1) Energy-saving aluminum curtain wall insulation board
2) Aluminium composite panels
3) Vol colour coated aluminum
4) Coated aluminum volume
5) Roll-coated aluminum volume
6) Pre-coated aluminum sheet roll
7) Paint aluminum volume
8) Aluminium veneer
9) Aluminum honeycomb panels
