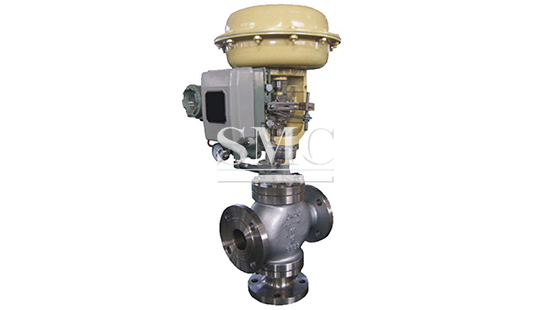

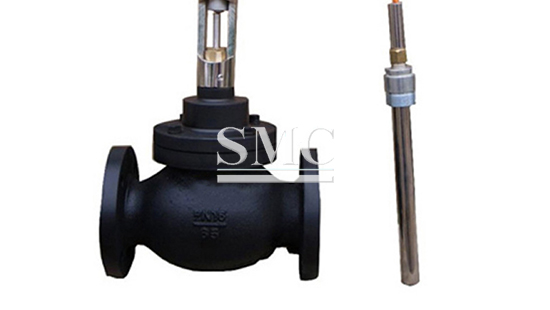

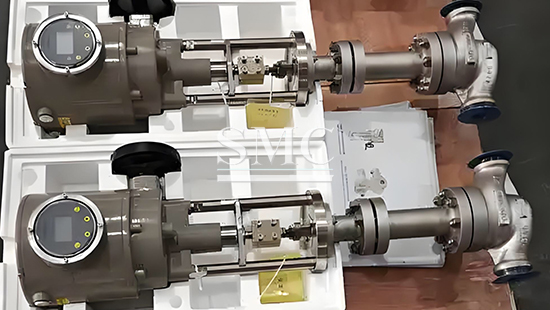

Control Valve
Material: Carbon steel, Stainless steel, Alloy steel
Size: DN20~DN300

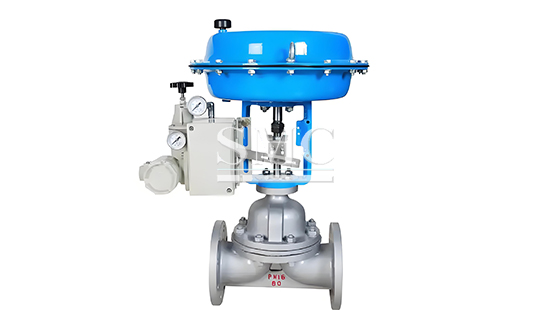

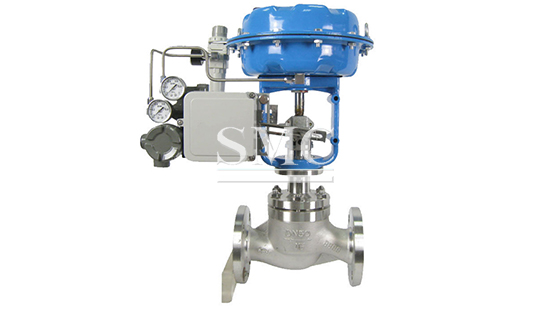

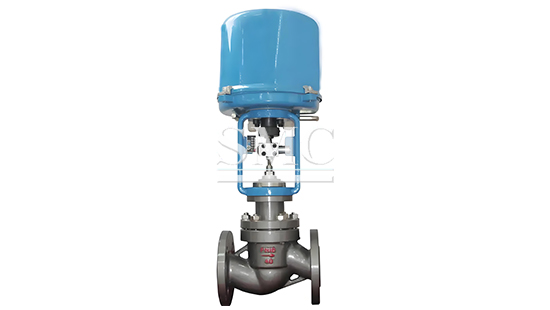

Type: Pneumatic control valve, Electric control valve, Self operated control valve
Suitable medium: Water, Oil, Acid, Alkali, etc
Shanghai Metal Corporation is experienced manufacturer of control valve in China since 1980s. Control valves refer to process parameters such as medium flow rate, pressure, temperature, and liquid level used in the field of industrial automation process control. Based on control signals in the automation system, the valve opening is automatically adjusted to achieve the regulation of medium flow rate, pressure, temperature, and liquid level.
If you want to know more about control valve price, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Control Valve:
|
Nominal diameter (DN) |
20 |
25 |
32 |
40 |
50 |
65 |
|
|
Valve seat diameter(dn) |
20 |
25 |
32 |
40 |
50 |
65 |
|
|
Rated flow coefficient(KV) |
Linearity |
10 |
11 |
17.6 |
27.5 |
44 |
69 |
|
|
Equal percentage |
6.3 |
10 |
16 |
25 |
40 |
63 |
|
Allowable pressure difference(MPa) |
6.4 |
6.4 |
5.2 |
5.2 |
4.6 |
4.6 |
|
|
Nominal pressure(MPa) |
1.6；2.5；4.0；6.4；10.0 |
||||||
|
Rated travel(mm) |
16 |
25 |
40 |
||||
|
Valve cover form |
Standard(-17~+250℃); High temperature(+250~+450℃); Low temperature(-40~-196℃); Bellows sealed(-40~+350℃) |
||||||
|
Cover form |
Bolt compression type |
||||||
|
Sealing material |
V-shaped polytetrafluoroethylene packing, V-shaped flexible graphite packing |
||||||
|
Valve core form |
Balanced valve core (sleeve guide) |
||||||
|
Traffic characteristics |
Linearity,Equal percentage |
||||||
|
Configure actuator category |
381L series electric actuators, PSL series electric actuators |
||||||
|
Actuator parameters |
Power supply voltage: 220V/50Hz, Input signal: 4-20mA or 1-5V · DC, Output signal: 4-20mA · DC |
||||||
|
|
Protection level: equivalent to IP55, explosion-proof mark: ExdⅡBT4 (ExdⅡBT6 specially customized), manual operation function: handle |
||||||
|
|
Environmental temperature: -25~+70 ℃, environmental humidity: ≤ 95% |
||||||
Packaging of Control Valve:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
