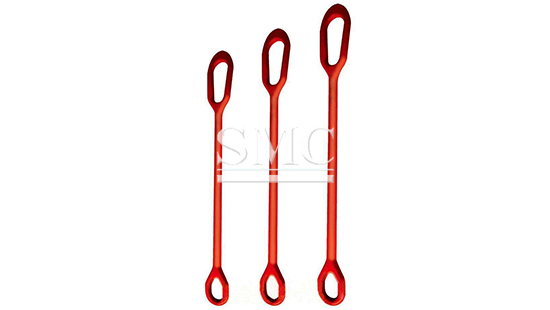

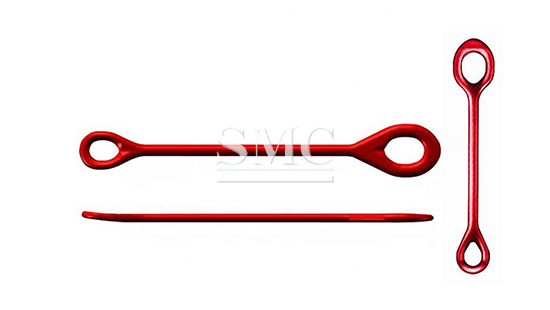

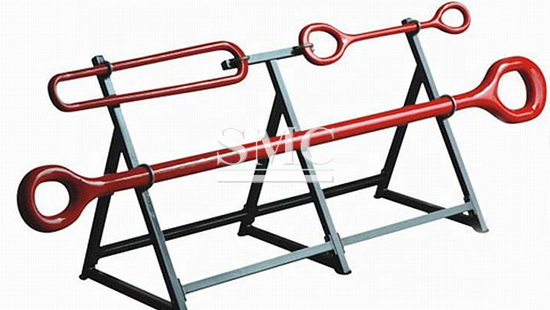

Each drilling elevator links of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8C, any elevator links are proof load tested to 1.5 times the working load.

Each drilling elevator links of one pair is marked with Serial Number for traceability.

Drilling Elevator Links are available in 150t, 200t, 250t, 350t, 500t and 750t rating loads.

Made of super high-quality alloy structural steel

Design safety factor n=2.25 ~ 3.

Rated load: 50 ~ 750 UStons.

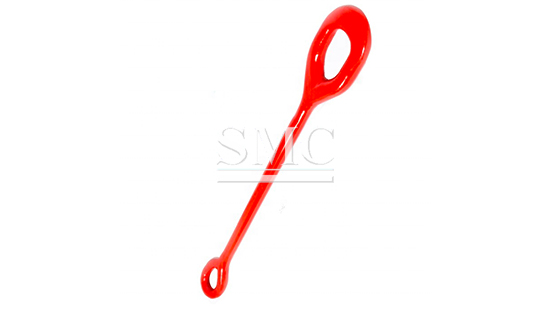

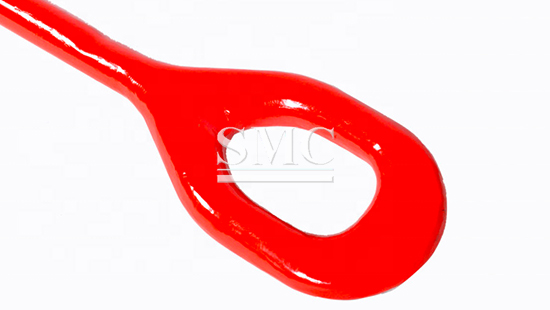

Two ends of the single-arm lifting ring are formed by die forging, and the middle rod is freely forged and long.

Forgings are specially heat treated.

100% tested for non-destructive testing.

The single-arm rings have passed the factory load test of 1.5 times the rated working load.

Single-arm rings are marked with rated load.

Finished paint is applied to the surface of the single-arm ring.

Suitable for drilling operations in deep wells and ultra-deep wells.

Single-arm rings are used in pairs.

Drilling Elevator Links are designed to hang elevators from Top Drive System, Hooks, Beckets or Link adapters. It is also suitable for drilling operations in deep wells and ultra-deep wells.
