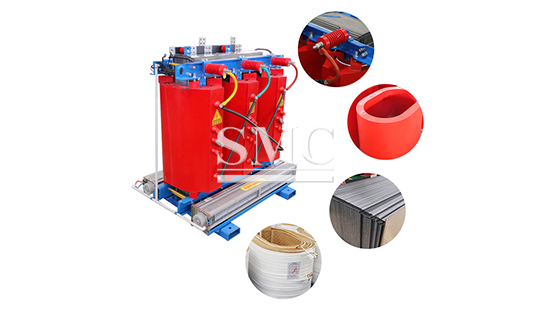

Dry Type Transformer Iron Core
Model: Dry Type Transformer
Transformer Capacity: 15kva-4000kva
Voltage: 0.38kv-35kv
Shanghai Metal Corporation is a professional manufacturer and supplier of Dry Type Transformer Iron Core with high quality and reasonable price.
High voltage coils are wrapped with Polyester enameled wires, filled with glass fiber, and then resin under vacuum condition. It becomes solid under high temperature. It equipped with high mechanical intensity, low discharge partly; Low voltage coils are wrapped with a whole piece of copper foil, with strong anti-shortcut capacity.The core is made of silicon steel. By reasonable choosing magnetic density, decrease the empty loading loss effectively.Fire protection, anti-explosion, and no pollution..Coil is free from humidity, low noise and well characteristic of heating dispersion.Low loss, energy saving, free from maintenance, small size, light, and easy for installation.
If you want to know more about Dry Type Transformer Iron Core price please feel free to contact us, we will reply you within 24 hours
Technical Information of Dry Type Transformer Iron Core:
|
|
|
|
|
Loss（KW) |
|
|
|
|
（mm） |
（mm） |
|||||
|
Rated Capacity |
Voltage Group(kV) |
Connection Method |
|
(145) |
No-load current |
Impedance |
Insulation Level |
Weight |
(L) |
(W) |
(H) |
(L) |
(W) |
(H) |
|
|
(KVA) |
HV |
LV |
No-Load |
Load |
% |
% |
|
(KG) |
Dimension |
Outline dimension with protective casing |
|||||
|
80 |
|
0.4 |
Dyn11 Yyn0 |
0.37 |
1.75 |
2.2 |
4 |
F/F |
490 |
950 |
550 |
910 |
1250 |
1000 |
1330 |
|
100 |
|
0.4 |
2.17 |
2 |
520 |
950 |
660 |
910 |
1280 |
1100 |
1330 |
||||
|
125 |
|
0.47 |
2.59 |
1.8 |
650 |
970 |
660 |
920 |
1300 |
1050 |
1350 |
||||
|
160 |
|
0.545 |
3.1 |
1.8 |
740 |
1000 |
710 |
965 |
1330 |
1050 |
1350 |
||||
|
200 |
15 |
0.625 |
3.97 |
1.6 |
850 |
1040 |
710 |
990 |
1360 |
1100 |
1400 |
||||
|
250 |
14 |
0.72 |
4.68 |
1.6 |
1005 |
1090 |
710 |
1045 |
1400 |
1150 |
1450 |
||||
|
315 |
11 |
0.88 |
5.61 |
1.4 |
1270 |
1120 |
710 |
1120 |
1500 |
1200 |
1500 |
||||
|
400 |
10 |
0.975 |
6.63 |
1.4 |
1470 |
1240 |
850 |
1185 |
1600 |
1250 |
1600 |
||||
|
500 |
1.16 |
7.95 |
1.4 |
6 |
1750 |
1290 |
850 |
1220 |
15650 |
1300 |
1650 |
||||
|
630 |
6.3 |
1.3 |
9.78 |
1.2 |
1900 |
1500 |
870 |
1370 |
1850 |
1300 |
1650 |
||||
|
800 |
6 |
1.52 |
11.56 |
1.2 |
2290 |
1550 |
870 |
1570 |
1900 |
1300 |
1800 |
||||
|
1000 |
|
1.77 |
13.35 |
1.1 |
2700 |
1600 |
870 |
1665 |
1950 |
1300 |
1950 |
||||
|
1250 |
|
2.09 |
15.64 |
1.1 |
3130 |
1680 |
1120 |
1765 |
2050 |
1350 |
2000 |
||||
|
1600 |
|
2.45 |
18.11 |
1.1 |
3740 |
1750 |
1120 |
1860 |
2100 |
1400 |
2100 |
||||
|
2000 |
|
3.32 |
21.25 |
1 |
4500 |
1870 |
1120 |
1880 |
2150 |
1500 |
2200 |
||||
|
2500 |
|
4 |
24.74 |
1 |
5340 |
2120 |
1120 |
1950 |
2400 |
1500 |
2200 |
||||
|
(Note): (Tapping range of high voltage) ±4×2.5% or ±3×2.5%, Frequency: 50Hz. |
|||||||||||||||

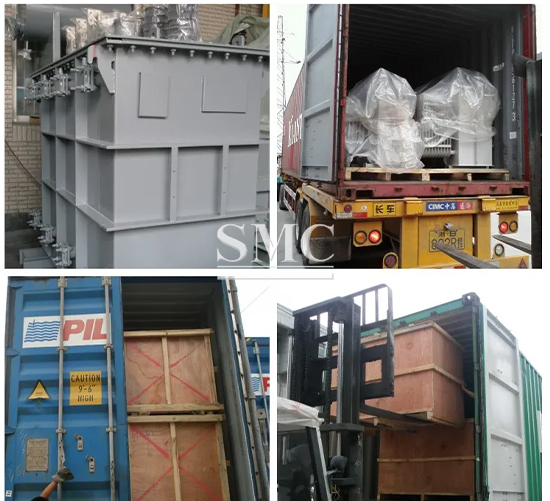

Packaging of Dry Type Transformer Iron Core:

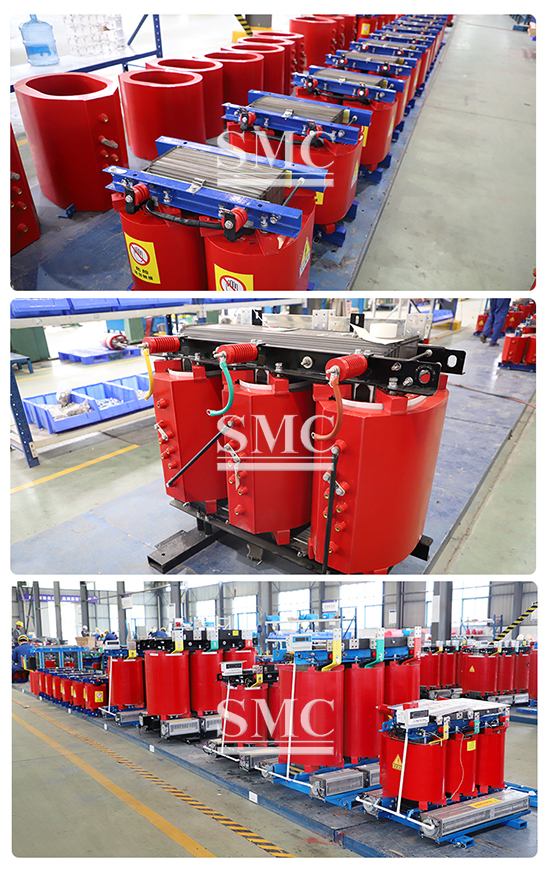

Product Display of Dry Type Transformer Iron Core:
