Fiberglass Fire Sleeve
Size: 5-200 mm
Working tempt.: 260°C. Short time peaks at 1650°C
Breakdown Voltage: 7kV -- 25kV
Color: iron oxide red, others on request.
Shanghai Metal Corporation is a professional manufacturer and supplier of Fiberglass fire sleeve with high quality and reasonable price.

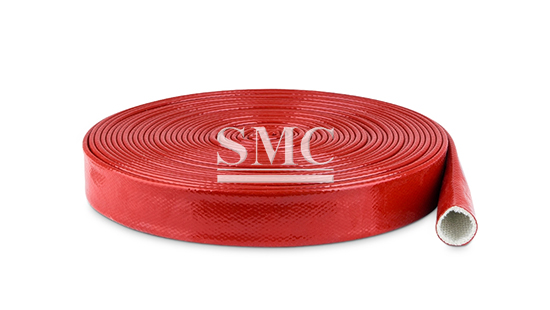

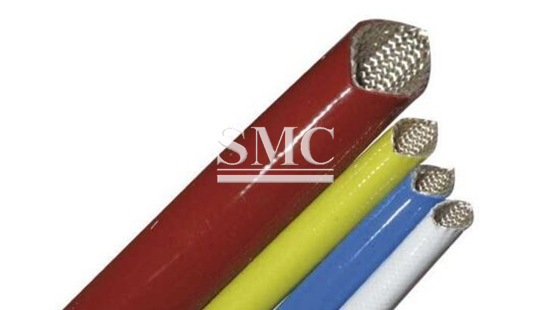

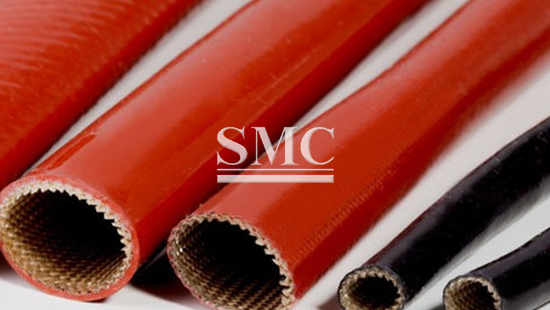

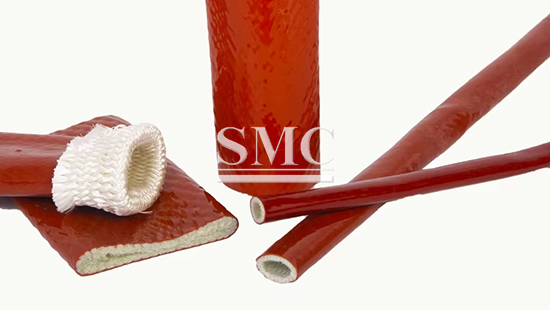

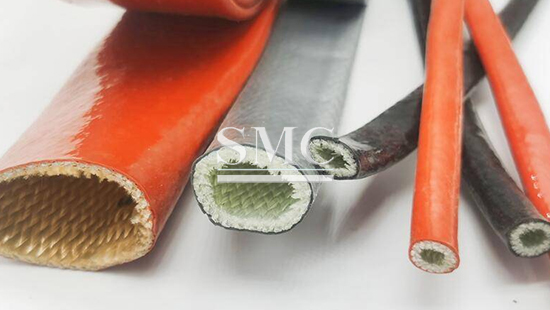

The fiberglass fire sleeve is braided with E-grade fiberglass yarn and coated with silicone rubber. This sleeve is basically a heavy-duty jacket that's designed to protect hoses, wires and cables from high heat and occasional flames. Splashes of molten metal are a common occurrence in steel plants, glass plants, foundries, cutting and welding shops.
If you want to know more about Fiberglass fire sleeve price please feel free to contact us, we will reply you within 24 hours
Technical Information of Fiberglass Fire Sleeve:
|
Specifications: |
|||
|
Inner Dia.(mm) |
Inner Dia.(inch) |
Wall Thickness (mm) |
Roll length(m) |
|
Φ6 |
1/4 |
1.5 |
20 |
|
Φ8 |
5/16 |
1.6 |
20 |
|
Φ10 |
3/8 |
1.8 |
20 |
|
Φ13 |
1/2 |
1.9 |
20 |
|
Φ15 |
5/8 |
2.1 |
20 |
|
Φ20 |
3/4 |
2.4 |
20 |
|
Φ22 |
7/8 |
2.5 |
20 |
|
Φ25 |
1 |
2.6 |
20 |
|
Φ30 |
1-1/8 |
2.9 |
20 |
|
Φ32 |
1-1/4 |
3 |
20 |
|
Φ35 |
1-3/8 |
3.1 |
20 |
|
Φ38 |
1-1/2 |
3.2 |
20 |
|
Φ40 |
1-5/8 |
3.4 |
20 |
|
Φ45 |
1-3/4 |
3.4 |
20 |
|
Φ50 |
2 |
3.6 |
20 |
|
Φ55 |
2-1/4 |
3.7 |
20 |
|
Φ60 |
2-3/8 |
3.8 |
20 |
|
Φ65 |
2-1/2 |
3.8 |
20 |
|
Φ70 |
2-3/4 |
4 |
20 |
|
Φ75 |
3 |
4.1 |
20 |
|
Φ80 |
3-1/8 |
4.3 |
15 |
|
Φ85 |
3-1/4 |
4.3 |
15 |
|
Φ90 |
3-1/2 |
4.5 |
15 |
|
Φ95 |
3-3/4 |
4.5 |
15 |
|
Φ100 |
4 |
4.6 |
15 |
|
Φ105 |
4-1/8 |
4.7 |
10 |
|
Φ110 |
4-3/8 |
4.7 |
10 |
|
Φ115 |
4-1/2 |
4.7 |
10 |
|
Φ120 |
4-3/4 |
4.8 |
10 |
|
Φ125 |
5 |
4.8 |
10 |
|
Φ130 |
5-1/8 |
5 |
10 |
|
Φ140 |
5-1/2 |
5.2 |
10 |
|
Φ150 |
6 |
5.2 |
10 |
Packaging of Fiberglass Fire Sleeve:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
