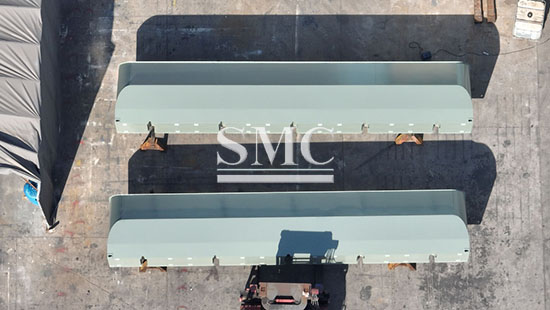

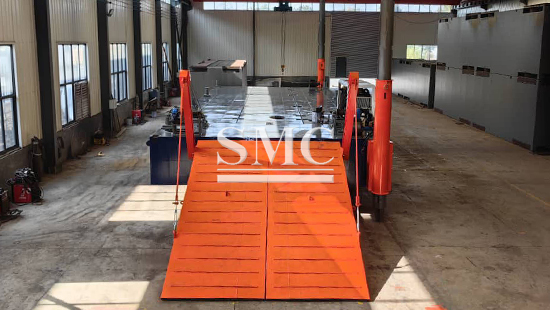

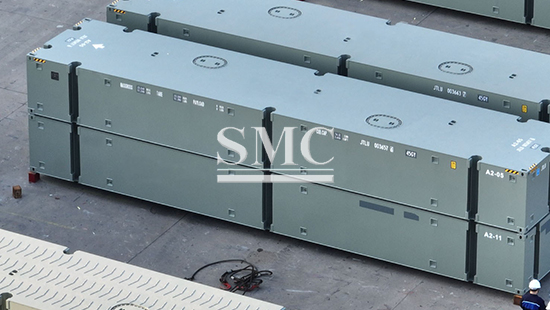

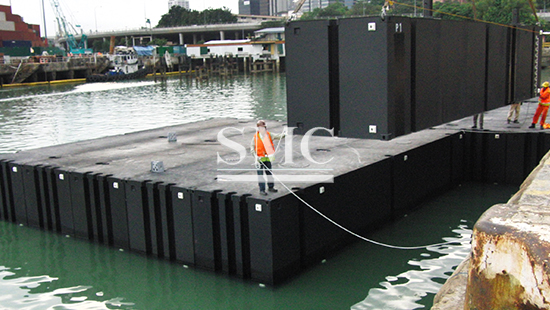

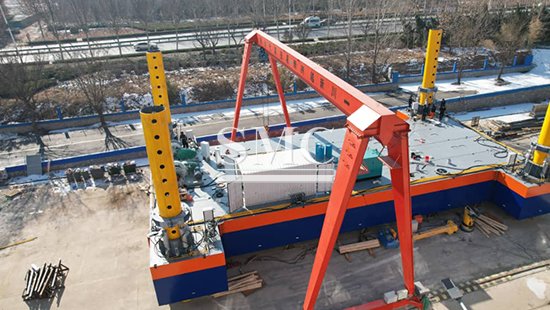

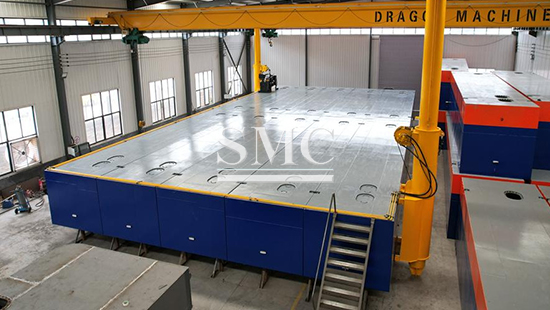

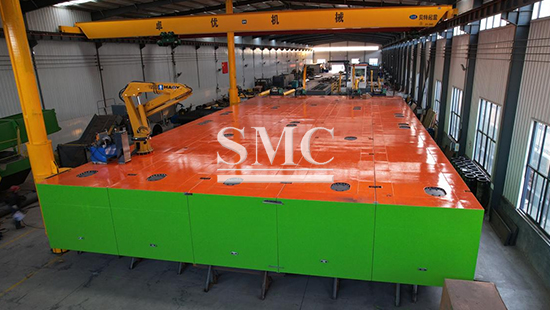

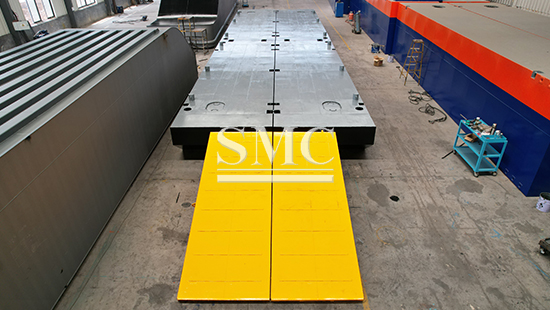

Floating Modular Container Pontoon Barge Transportation System
Length: 20/40ft
Width: 8ft
Height: 4/ 8 ft
Shanghai Metal Corporation is a leading all-kind Containerized Pontoon System and Pontoon Connector manufacturer and supplier.
These modular pontoons have been designed based on ISO freight container standards and have received DNV GL’s certification. They come with ISO corner castings and RPC units which make them easy to transport and deploy. Moreover, they cost little to store on land and their configuration can be easily customized.
If you want to know more about Containerized Pontoon System and Pontoon Connector, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Floating Modular Container Pontoon Barge Transportation System:
|
SPECIFICATIONS |
||||
|
Variants |
||||
|
Model |
408E |
4084 |
2088 |
2084 |
|
Unit Module (also available in 6ft or 10ft high) |
||||
|
Length（ft) |
40 |
40 |
20 |
20 |
|
Width (ft) |
8 |
8 |
8 |
8 |
|
Height (ft) |
8 |
4 |
8 |
4 |
|
Self weight (th) |
11.3 |
8.7 |
6.2 |
4.6 |
|
Max connectors |
10 |
10 |
6 |
6 |
|
Material |
Mild Steel |
|||
|
Pontoon Design Capacity |
||||
|
Max deck load(t/m²) |
Up to 15.0 |
|||
|
Full load displacement(t) |
60 |
23 |
30 |
11.5 |
|
Max payload capability(t) |
48.7 |
14.3 |
23.8 |
6.9 |
|
Minimum freeboard(mm) |
450 |
450 |
450 |
450 |

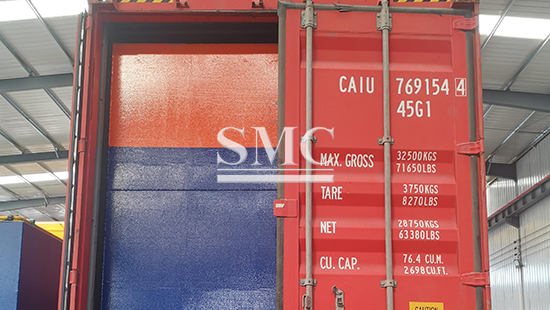

Packaging of Floating Modular Container Pontoon Barge Transportation System:
