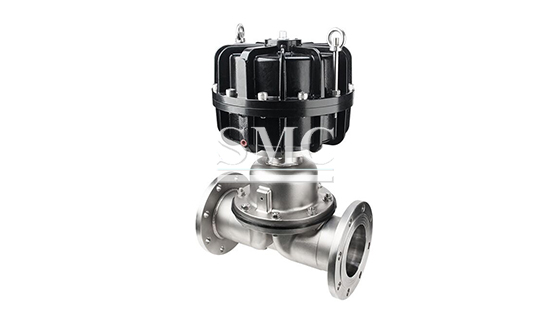

Fully Lined Fluorine Valve

Valve body material: Carbon steel (C), SS304 (P), SS316 (R)

Nominal diameter: DN15~DN200

Sealing material: PTFE (F)

Line material：FEP (F46), PFA (PFA)

Medium temperature: W2: -20~150℃, W7: -20~180℃

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is experienced manufacturer of corrosion resistant valve in China since 1980s. Fully lined fluorine valve is a special type of valve, also known as fluorine plastic lined corrosion-resistant valve. The main feature of this type of valve is that it is entirely lined with fluoroplastics, which gives the valve excellent corrosion resistance. The fully lined fluorine valve can resist various concentrations of sulfuric acid, hydrochloric acid, hydrofluoric acid, aqua regia, as well as corrosive medium such as organic acids, strong acids, and strong oxidants. Therefore, fully lined fluorine valves can be widely used in these corrosive medium pipelines.

If you want to know more about fully lined fluorine valve price, please feel free to contact us, we will reply you within 24 hours.

Valve body material: Carbon steel(C),SS304(P),SS316(R)
Size: DN15~DN200
Normal pressure: 1.0~1.6Mpa (If you need other pressure standard, please specify when placing order)
Connection mode: Flange

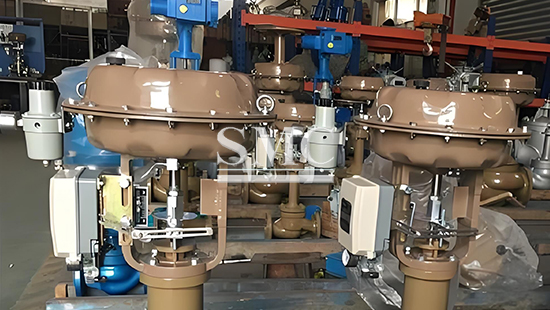

1.Fully lined interior, strong corrosion resistant, aging resistant, wear resistant,swallowtail groove structure, uniform perforation of valve components, strong adhesion, and ultra long service life.
2.Molded molding, chemically stable, not easy to peel off, with good anti fouling and anti adhesive properties.
3.Smooth inner wall, low resistance, high CV value, strong flow ability, and zero leakage.
4.Small size,light weight,safe and stable, easy to operate, and easy to install.

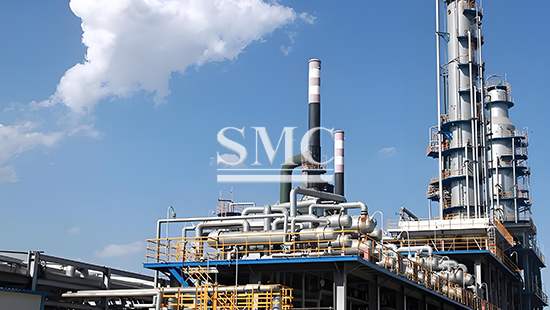

1.Light industry
2.Chemical industry
3.Electric power industry
4.Environmental protection

Technical Information of Fully Lined Fluorine Valve:

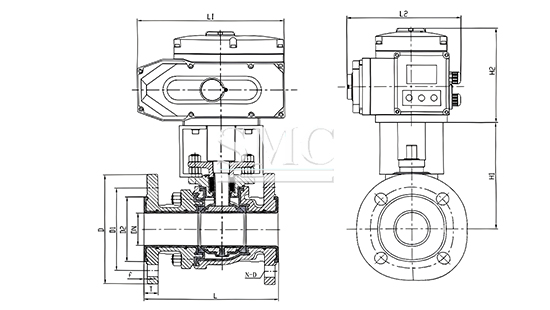

ELECTRIC OVERALL DIMENSIONS CHART-PN16(16bar)
DN	Overall Dimension					Connection Dimension
	L	L1	L2	H1	H2	D	D1	D2	T	f	n-d
15	140	165/320	150/220	88	135/270	95	65	45	16	2	4-14
20	140	165/320	150/220	93	135/270	105	75	58	16	2	4-14
25	150	165/320	150/220	100	135/270	115	85	68	18	2	4-14
32	165	165/320	150/220	120	135/270	140	100	78	18	2	4-18
40	180	190/320	170/220	126	140/270	150	110	88	18	2	4-18
50	200	190/320	170/220	135	140/270	165	125	102	18	2	4-18
65	220	270/355	220/250	170	170/275	185	145	122	18	2	8-18
80	250	270/375	220/290	185	170/315	200	160	138	20	2	8-18
100	280	270/375	220/290	215	170/315	220	180	158	20	2	8-18
125	320	270/375	220/290	225	170/315	250	210	188	22	2	8-18
150	360	270/400	220/330	230	170/360	285	240	212	22	2	8-22
200	457	400	330	260	520	340	295	268	24	2	12-22

Packaging of Fully Lined Fluorine Valve:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
