Metal for Household Appliances

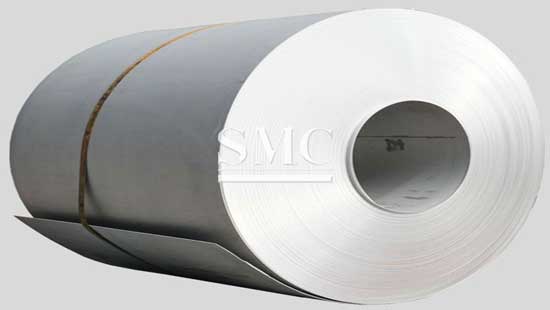

Galvalume Steel Coil for LCD Frame

    Thickness: 0.16mm - 2.5mm



    Width: 600mm - 1500mm



    Coating Weight: AZ30 to AZ185

Specifications of Galvalume Steel Coil:

1) Capacity: about 10,000 ton per month for galvalume steel

2) Standard: JIS3321/ASTM A792M

3) Thickness: 0.16mm - 2.5mm, all available

4) Width: 600mm - 1500mm, all available

5) Length: according to the customer's request

6) Coil ID: 508/610mm

7) Coil weight: according to the customer's request

8) Coating Weight: AZ30 to AZ185

9) Spangle: regular spangle, small spangle, big spangle

10) Steel Type & Grade:


11) Surface Treatment:


Features of Galvalume Steel Coil:

1) Composed of 55% aluminum, 43.5% zinc and 1.5% silicon

2) Formable, weldable and paintable

3) Superior corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial protection of the zinc and the barrier protection of the aluminum.

4) Coating out-performs galvanized coating from 2-6 times than hot dip galvanized steel

Packaging of Galvalume Steel Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Galvalume Steel Coil:

1) Construction: roofing, cladding, structural sections, composite panels, etc.

2) Electric appliance: washing machine, refrigerators, toaster, microwave, etc.

3) Others: airduct, lighting, computer casing, etc.
