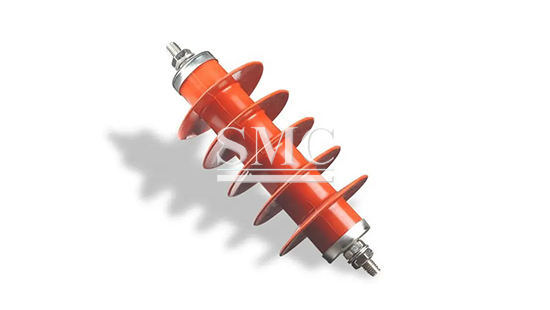

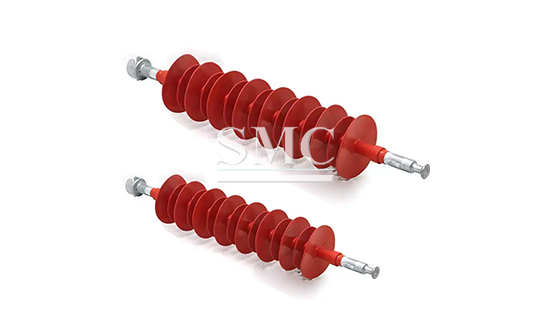

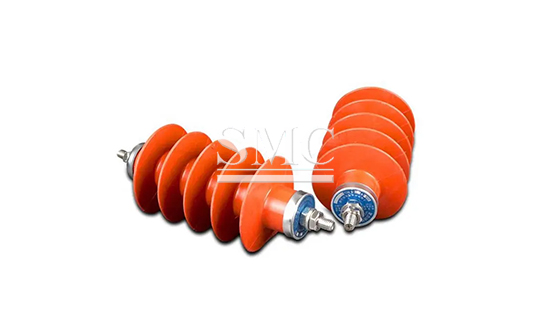

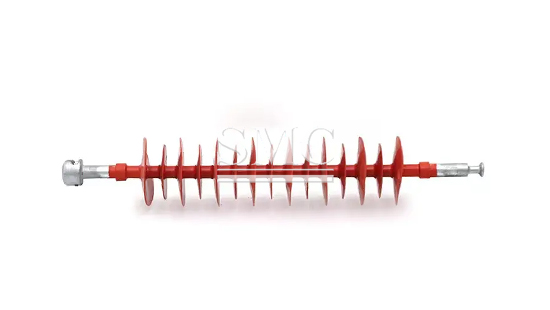

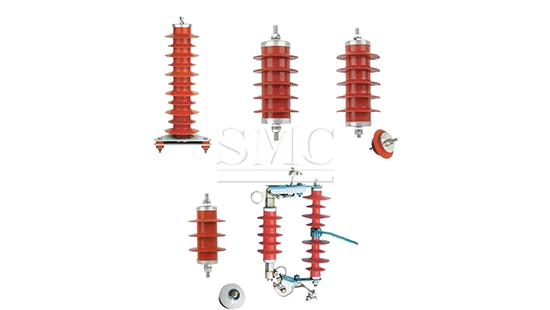

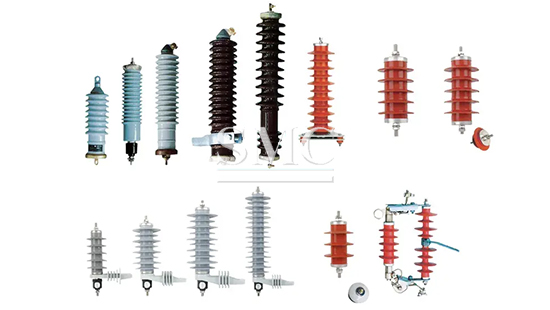

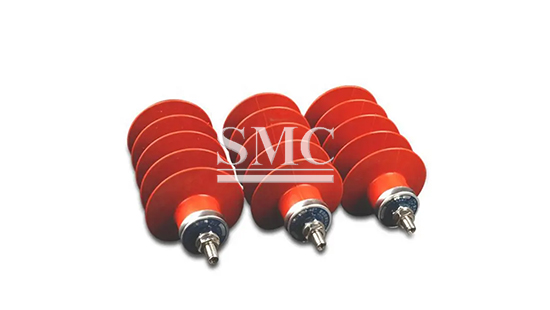

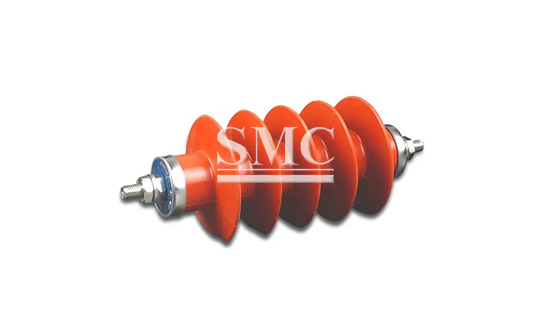

High Voltage Lightning Arrester
Voltage: Customizable
Material: Silicone Rubber
Application: Power Station
Color: Red
Shanghai Metal Corporation is a high voltage lightning arrester manufacturer and supplier.
SMC is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers.
If you want to know more about our electrical products or high voltage lightning arrester price please feel free to contact us, we will reply you within 24 hours.
Technical Information of High Voltage Lightning Arrester:
Polymer housed distribution class(DH) surge arrester
Nominal discharge current:10kA ;High current impulse of 4/10μs:100kA
Repetitive charge transfer ≥0.4 C;Partial discharge <5pC
Short Circuit Current Rating 31.5kA
Polymer housed station class(SM) surge arrester
Nominal discharge current: 10kA; High current impulse of 4/10μs:100kA, 2times
Repetitive charge transfer ≥1.8C;Partial discharge <5pC
Short Circuit Current Rating 63kA;SSL 4kNm; SLL2.5kNm
Porcelain housed station class (SH) surge arrester
Nominal discharge current: 20kA ; High current impulse of 4/10μs:100kA, 2times
Repetitive charge transfer ≥4.0C;Partial discharge <5pC
Short Circuit Current Rating 63kA; SSL 10kNm
|
Product Model |
Rated Voltage |
Continuous Operating Voltage |
Nominal Discharge Current (kA) |
Rated frequency standard (Hz) |
0.75 U1mA |
Partial discharge |
8/20μs Ligting Current Impulse (kV) |
4/10μs High Current Impulse Witstand |
2ms rectangular current impulse withstand |
|
(kV) |
(MCOV)(kV) |
Leak Current (μA) |
(pC) |
(kA) |
(A) |
||||
|
HY10W-3kV |
3 |
2.4 |
10 |
48/62 |
15 |
10 |
9 |
100 |
250 |
|
HY10W-6kV |
6 |
5.1 |
10 |
48/62 |
15 |
10 |
18 |
100 |
250 |
|
HY10W-9kV |
9 |
7.65 |
10 |
48/62 |
15 |
10 |
27 |
100 |
250 |
|
HY10W-12kV |
12 |
10.2 |
10 |
48/62 |
15 |
10 |
36 |
100 |
250 |
|
HY10W-15kV |
15 |
12.7 |
10 |
48/62 |
15 |
10 |
45 |
100 |
250 |
|
HY10W-18kV |
18 |
15.3 |
10 |
48/62 |
15 |
10 |
54 |
100 |
250 |
|
HY10W-21kV |
21 |
17 |
10 |
48/62 |
15 |
10 |
65 |
100 |
250 |
|
HY10W-24kV |
24 |
19.5 |
10 |
48/62 |
15 |
10 |
72 |
100 |
250 |
|
HY10W-27kV |
27 |
22 |
10 |
48/62 |
15 |
10 |
81 |
100 |
250 |
|
HY10W-30kV |
30 |
24.4 |
10 |
48/62 |
15 |
10 |
90 |
100 |
250 |
|
HY10W-33kV |
33 |
27 |
10 |
48/62 |
15 |
10 |
99 |
100 |
250 |
|
HY10W-36kV |
36 |
29 |
10 |
48/62 |
15 |
10 |
108 |
100 |
250 |
|
HY10W-42kV |
42 |
34 |
10 |
48/62 |
15 |
10 |
126 |
100 |
250 |
Packaging of High Voltage Lightning Arrester:
Shanghai Metal Products are packed and labeled acording to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
