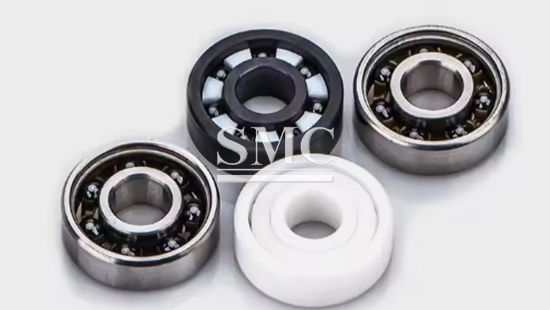

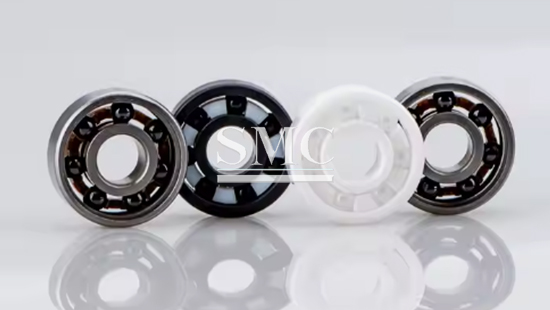

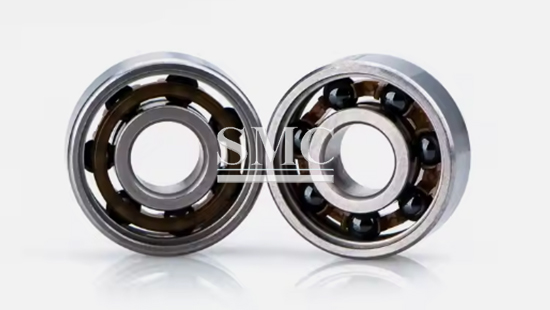

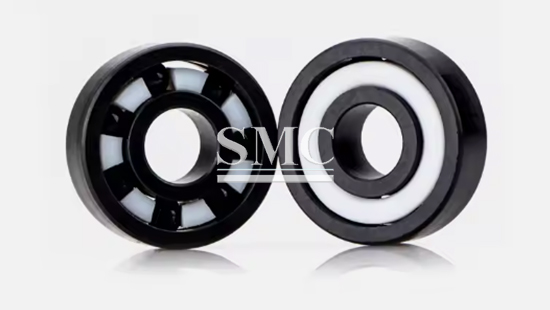

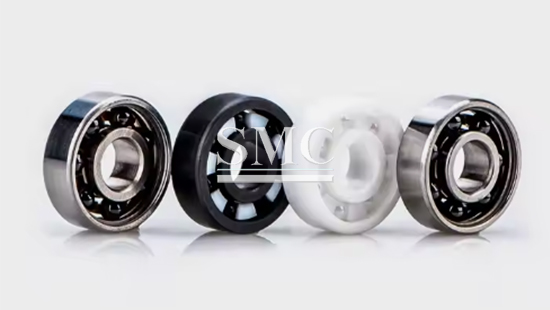

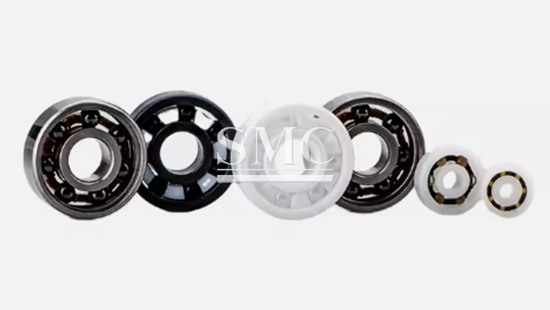

Hybrid Ceramic Bearing

Bearing Ring Material: 440C Stainless Steel, Chrome Steel, Alloy Steel.

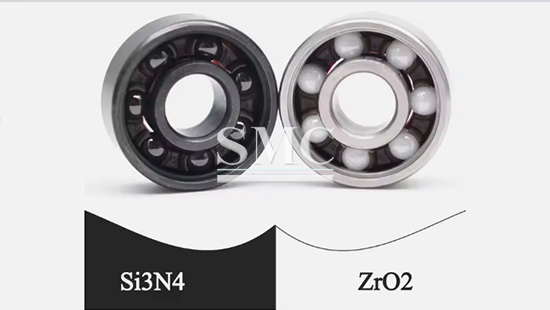

Bearing Ring Material: ZrO2, Si3N4, etc.

Load Capacity: Light Load, Medium Load, Heavy Load.

Seal Type: Open Type, Shielded Type, Sealed Type.

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading Hybrid Ceramic Bearing manufacturer and supplier.

Hybrid ceramic bearings combine ceramic balls with metal inner and outer rings, offering high-speed performance, heat resistance, low friction, corrosion resistance, and electrical insulation. The low density and high hardness of the ceramic balls make them ideal for high-speed rotation and high-temperature environments, while also reducing lubrication needs. Due to excellent electrical insulation properties, these bearings are widely used in motors, generators, aerospace, automotive industries, and other demanding fields, particularly in corrosive, high-humidity, or high-temperature conditions.

If you want to know more about our Mechanical Products or Hybrid Ceramic Bearing price please feel free to contact us, we will reply you within 24 hours.

1. Bearing Ring Material: 440C Stainless Steel, Chrome Steel, Alloy Steel.

2. Bearing Ring Material: ZrO2, Si3N4, etc.

3. Working Temperature: -50-110℃

1. High-Speed Performance

2. Heat Resistance

3. Corrosion Resistance

4. Low Friction Coefficient

5. Electrical Insulation

1. Application Fields Hybrid ceramic bearings are widely used in demanding industries such as motors, generators, aerospace, automotive industries, and precision machinery. In applications requiring high speed, precision, and durability, hybrid ceramic bearings offer a longer service life and more stable performance compared to conventional bearings.

2. Environmental Requirements: These bearings are particularly suited for high-temperature, humid, or corrosive environments, where traditional steel bearings may suffer from performance degradation due to heat or chemical exposure. The ceramic balls also provide excellent electrical insulation, preventing current from passing through the bearing and causing electrical erosion, making them especially useful in electrical equipment.

3. Service Life: Extremely long service life (compared to traditional metal bearings).

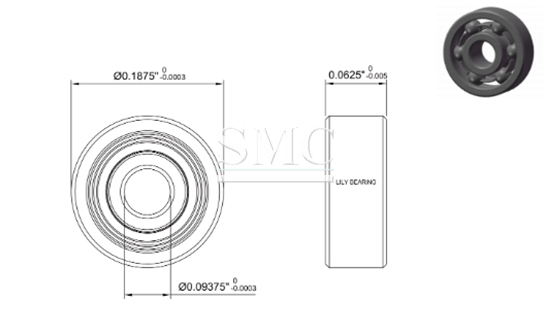

Technical Information of Hybrid Ceramic Bearing:

BALL GRADES
Grade	Diameter Tolerance		Sphericity		Maximum
	per Batch				Surface
					Roughness
	Inch		Inch		Micro Inch
5	0.00001	0.25	0.000005	0.127	0.8	0.02
10	0.00002	0.51	0.00001	0.25	1	0.025
25	0.00005	1.27	0.000025	0.63	1.5	0.038
50	0.0001	2.5	0.00005	1.27	3	0.075
100	0.0002	5	0.0001	2.5	5	0.125
200	0.0004	10	0.0002	5	8	0.2
500	0.001	25	0.0005	12.5	Not Applicable
1000	0.002	50	0.001	25	Not Applicable
2000	0.004	100	0.002	50	Not Applicable

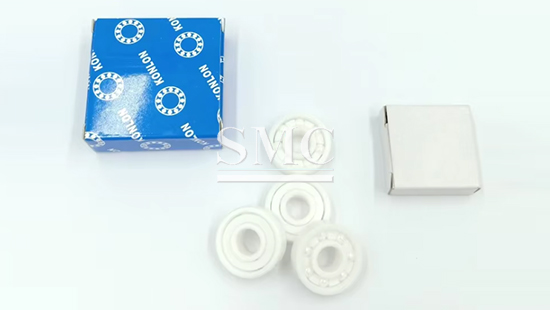

Packaging of Hybrid Ceramic Bearing:
