Inconel Series

Inconel 625

    Model Number: Inconel 625



    Application: Chemical processing, specialized seawater equipment, pulp and paper production.

Equivalent designations: Inconel 625, UNS N06625, DIN W. Nr. 2.4856, Alloy 625, NS336, NS3306, NiCr22Mo9Nb
Place of Origin: Shanghai, China (Mainland)
Application: Chemical processing, specialized seawater equipment, pulp and paper production.

Product list:

Specification:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm

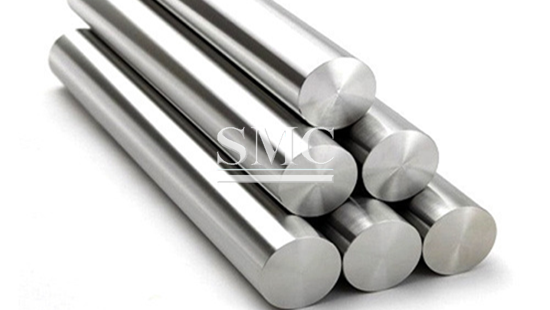

Bar: φ4-50mm;Length 2000-5000mm

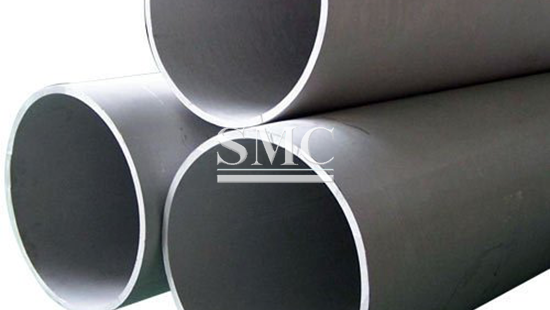

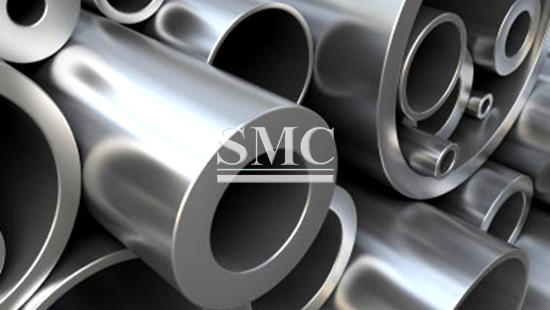

Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ0.8-36mm;Width 650-2000mm;Length 800-4500mm
Model Number: Inconel 625
Brand Name: SMC
Shape: Forging

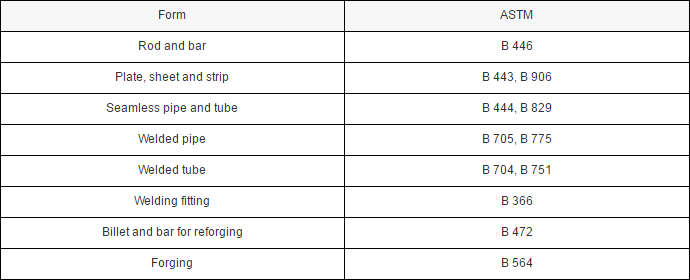

Standard: ASTM ASME
Certification: ISO 9001:2008
Color: Nickel Nature
MOQ: 500kg

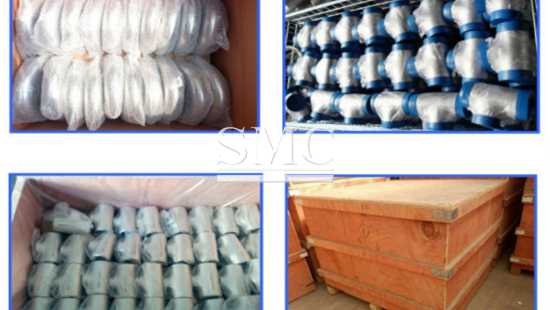

Packing: Common sea freight wooden case package/ Also can be customized
Payment: L/C,T/T
Delivery: Usually sample lead time is 7 days after payment has been confirmed.


Inconel 625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Inconel 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.



1. Produces process

Raw material→ Smelting→ Drawing→ Rolling→ Annealing→ Finished product→ Detection→ Packing→ Shipping

2. Chemical composition

3. Physical properties

1. Characters

High creep-rupture strength

Oxidation resistant to 1800°F

Seawater pitting and crevice corrosion resistant

Immune to chloride ion stress corrosion cracking

Non-magnetic

2. Application

Chemical process industry and sea water application. Inconel 625 is used in short term applications at temperatures up to 816℃. For long term service, it is best restricted to a maximum of 593℃, because long term exposure above 593℃ will result in significant embrittlement.

1. Aircraft ducting systems

2. Aerospace

3. Jet engine exhaust systems

4. Engine thrust-reverser systems

5. Specialized seawater equipment

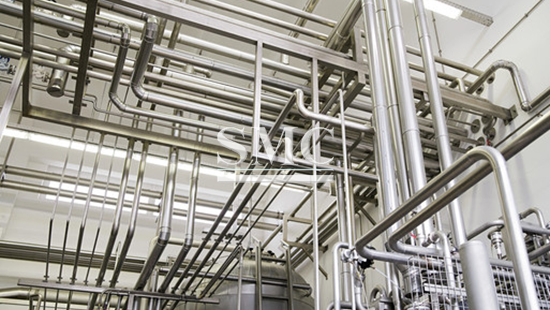

6. Chemical process equipment
