Condition: New and standard
Size: 20ft/ 40ft
Material: AISI 316 and other grades of stainless steel
Approval: UN Portable Tank (IMDG,ADR/RID,US DOT),GB150,TIR,CSC,UIC,TC,AAR 600
Shanghai Metal Corporation is a professional manufacturer and supplier of lng tanks with high quality and reasonable price.

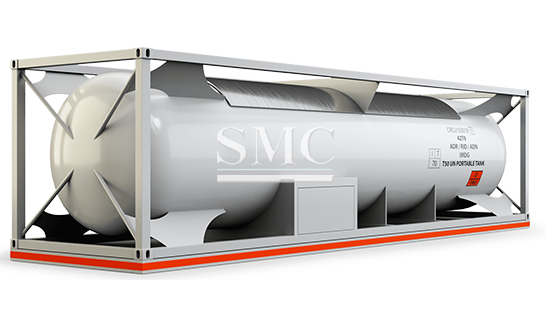

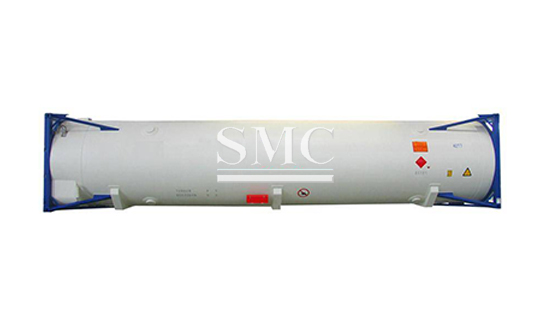

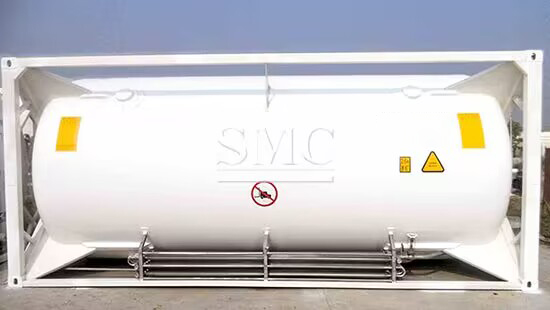

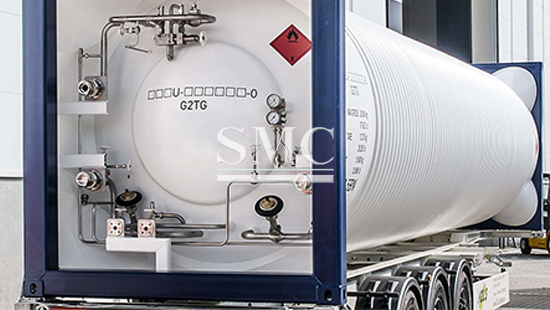

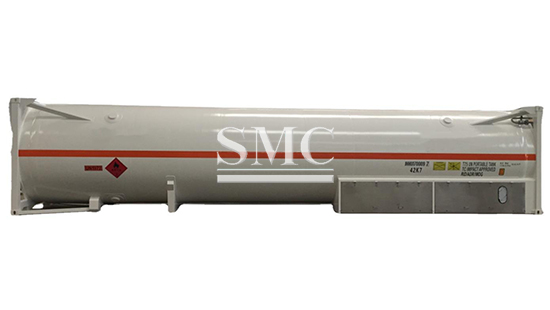

A tank container is a stainless steel pressure vessel mounted in a tight external frame. The tank interior is stainless steel with a standard 20-foot or 40-foot container frame. Suitable for road, rail and water transport. All tanks are steam heated and equipped with thermal insulation. Suitable for the transportation of lng.
If you want to know more about lng tanks price please feel free to contact us, we will reply you within 24 hours.
The lng tank has the characteristics of integrated storage and transportation, which can effectively supplement the peak shaving reserve, provide flexible solutions for the lng storage and transportation of end users, and reduce the overall operating cost of end users. The market positioning of lng tank container is very important. It is an important supplement to the incremental demand of natural gas. The target of lng tank container market is the incremental market of natural gas, not to seize the existing market share in the way of lng tank container.
It is suitable for storage and transportation, water and land, multimodal transportation, and short construction period。 Based on customer needs and advanced innovative technology for the future. As a supplement to lng tank container will find its position in small and medium-sized lng international trade, emergency gas storage and peak shaving, end user gas supply and fuel tank of lng powered ships, which will bring good development opportunities for the industry.
Technicial Information Of LNG TANK:
Volume: 45.7M3(cubic meter)
Working pressure: 0.79MPa (7.9 kg)
Operating temperature: - 162 ~ 126 ℃
Applicable materials: Liquefied natural gas
Empty tank mass: 11850kg
Rated filling rate: 0.90
Maximum allowable filling mass: 22150kg
Maximum allowable loading mass of LNG: 19330kg
Liquid carrying capacity: 41.13 m3
Rated quality: 34000kg
Land for sale: whole world
The material: S30408/Q345R
