Mooring Equipment

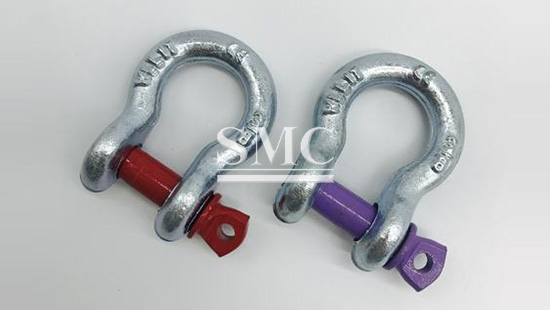

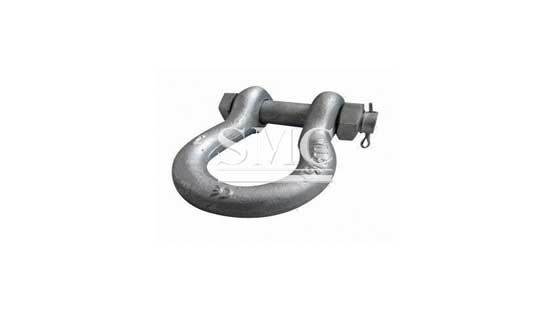

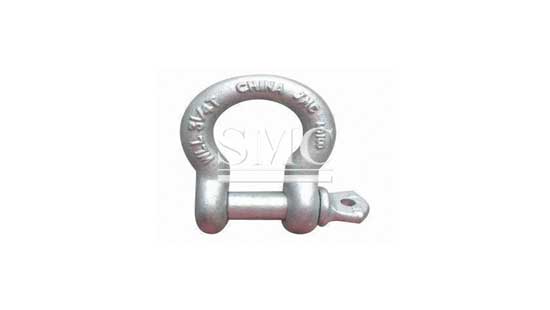

Marine Shackle

    Nominal Weight: 0.03 - 69.85 kg


    Surface Treatment: Galvanized

Product Detail

Specification of Marine Shackle:

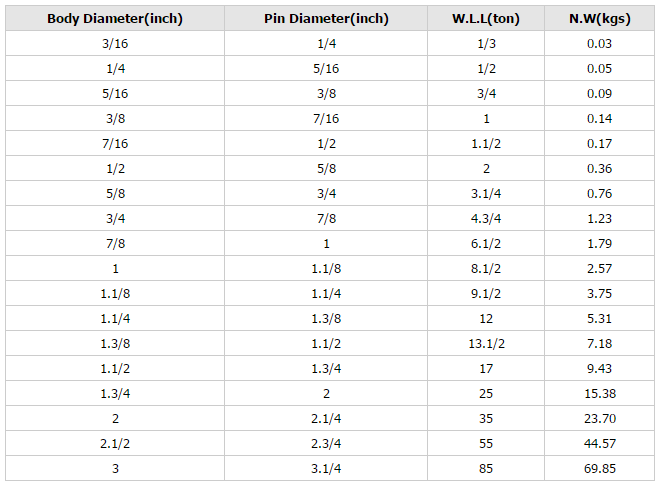

The table below shows standard sizes. Other sizes are available on request and can be manufactured to order.
1.Body Diameter: 3/16 inch - 3 inch
2.Pin Diameter: 1/4 inch - 3.1/4 inch
3.W.L.L: 1/3 ton - 85 ton

4.N.W: 0.03 kg - 69.85 kg

Product Features of Marine Shackle:

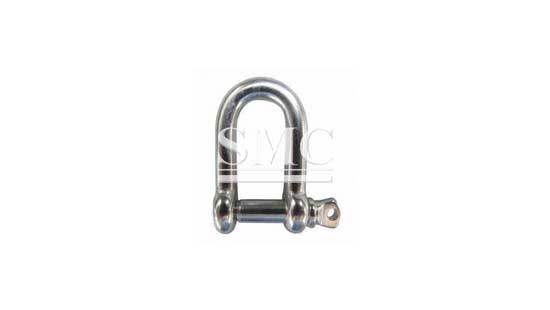

•Stainless steel D shackles manufactured from 17/4PH precipitation hardening martensitic stainless steel

•Excellent for general lifting applications - high tensile properties while avoiding work hardening

•Corrosion resistance similar to 18/8 grade steels (304)

•Factor of Safety 6:1

•Available with 4 pin types - Standard Screw Collar Pin (A Type), Extended Screw Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)

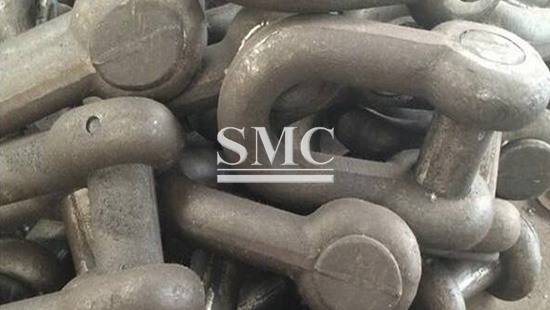

•Manufactured using the latest technology in electrical upset forging

Quality of Marine Shackle:

•All shackles are manufactured in accordance with the Machine Directive 2006/42/EC

•Inspection certificate BS EN 10204 3.1b available on request.

•High quality finish and excellent polish

Application of Marine Shackle:

•General lifting in off-shore applications

•General lifting and tethering in leisure marine applications

•General lifting purposes
