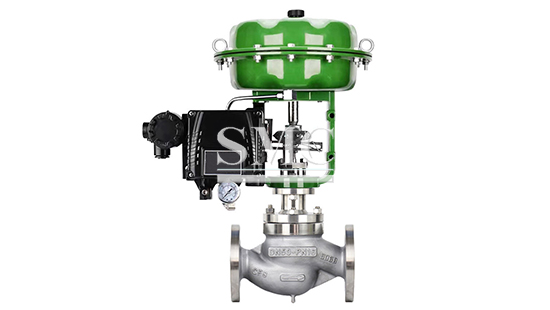

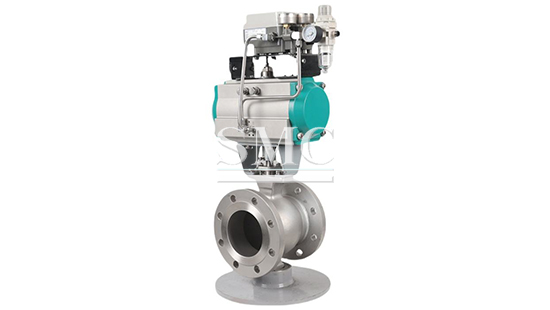

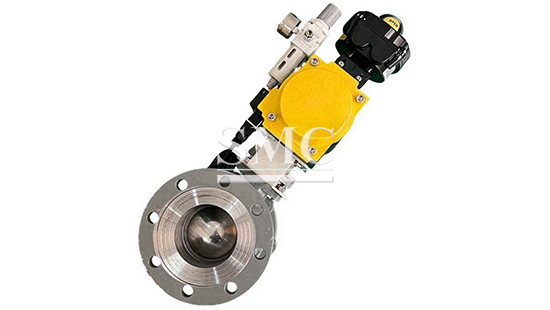

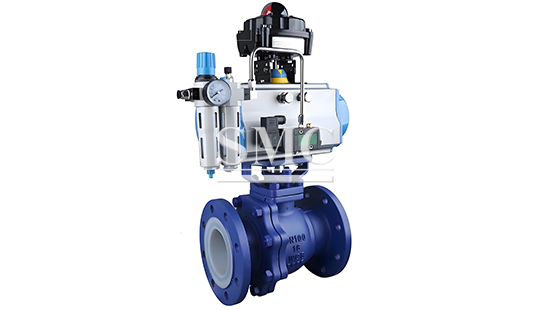

Pneumatic Valve

Valve body material:Carbon steel (C), SS304 (P), SS316 (R)

Size: DN15~DN200

Sealing material:PTFE (F), Polyphenylene (PPL)

Medium temperature:W2:-20~150℃, W3:-20~250℃, W4: -29~425℃

Product Detail | Technical Information | Packaging | More

Product Detail

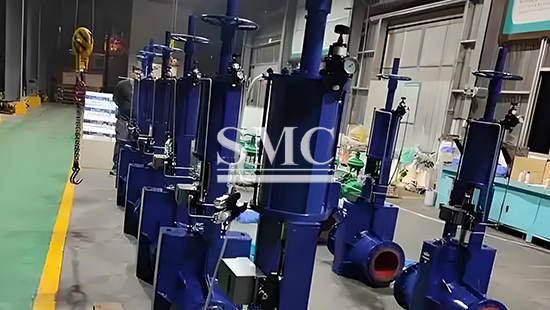

Shanghai Metal Corporation is experienced manufacturer of pneumatic valve in China since 1980s.

Pneumatic valve is a set of control components composed of pneumatic actuators, pneumatic accessories, and various types of valve bodies.Pneumatic valves have the characteristics of light weight, small volume, quick opening and closing, simple structure and easy maintenance, and long service life.It is widely used in automatic control systems in industries such as chemical, petroleum, metallurgy, and power plants.

If you want to know more about pneumatic valve price, please feel free to contact us, we will reply you within 24 hours.

Valve body material: Carbon steel (C), SS304 (P), SS316 (R)
Size: DN15~DN200
Normal pressure ：1.6~6.4Mpa (If you need other pressure standard, please specify when placing order)
Pneumatic actuator : JLAT Series, JLAW Series, Imported actuator series

1. Unique valve seat spring design for smoother opening and closing.
2.Sinking gland design, with adjustable compression amount for the packing part.
3. V-type packing design ensures packing sealing performance.
4. High mounting international standard, compatible with domestic and foreign electric/pneumatic actuators.

1.Petroleum refining
2.Chemical industry
3.Water conservancy
4. Pharmaceuticals

Technical Information of Pneumatic Valve:

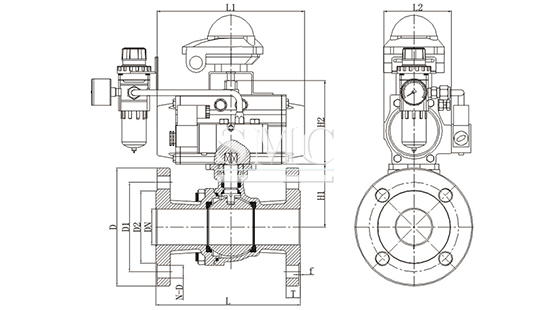

PNEUMATIC OVERALL DIMENSIONS CHART-PN16(16bar)
DN	Overall Dimension					Connection Dimension
DN	L	L1	L2	H1	H2	D	D1	D2	T	f	n-d
15	130	159/172	73/85	48	73	95	65	45	16	2	4-14
20	130	172/185	85/95	53	90	105	75	58	16	2	4-14
25	140	172/215	85/105	58.5	90	115	85	68	18	2	4-14
32	165	185/265	95/110	71	100	140	100	78	18	2	4-18
40	165	215/270	105/125	76	110	150	110	88	18	2	4-18
50	203	215/270	105/125	85	110	165	125	102	18	2	4-18
65	222	270/310	125/142	101.5	142	185	145	122	18	2	8-18
80	241	270/310	125/142	111.5	142	200	160	138	20	2	8-18
100	305	310/465	142/178	146	158	220	180	158	20	2	8-18
125	325	465/550	178/210	183	200	250	210	188	19	3	8-18
150	350	550/550	210/235	202	235	285	240	212	19	3	8-22
200	400	550/646	235/258	253	260	340	295	268	21	3	12-22

Packaging of Pneumatic Valve:

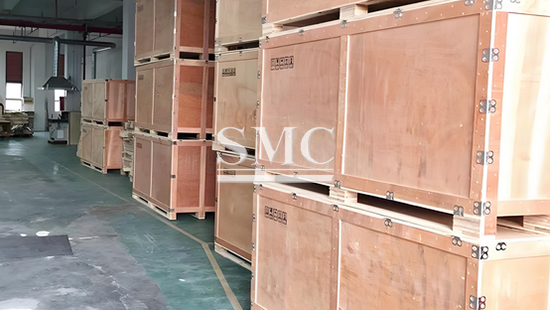

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

NOTICE:

1.The flanged ball valve body can be cast or forged, and can be divided into floating, fixed, and top mounted type.

2.Sealing is divided into soft seal and hard seal, with pressure resistance up to 2500 lb and temperature resistance down to -196℃ and up to 570℃.

3. Other special sealing material or special temperature can also be designed and selected according to customer requirements.
