Copper & Brass Sheet / Plate

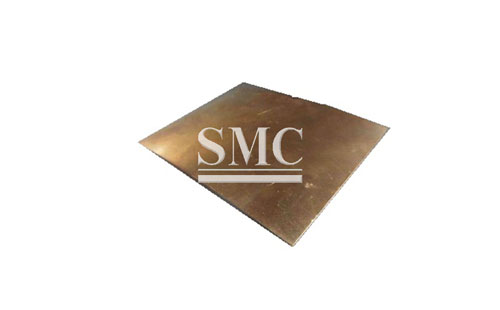

Silicon Bronze Sheet/Plate

    Thickness: 0.025mm - 4.0mm or custom



    Width: 36mm - 48mm or custom



    Length: 96mm - 120mm or custom

Specifications of Silicon Bronze Sheet/Plate:
1) Grade: C65100, C65500, QSi3-1,QSi1-3, C65800, etc.
2) Nominal Chemicals: Copper 95.8%, Silicon 3.1%, Manganese 1.1%
3) Thickness: 0.025mm - 4.0mm, or custom
4) Width: 36mm - 48mm, or custom
5) Length: 96mm - 120mm, or custom
6) Machinability: 30, Electrical Conductivity 17% IACS
7) Average Physical Properties: Tensile: 60000 psi; Yield: 25000 psi; Hardness: B60; Elongation: 50%

Chemical Composition:

(%max., unless shown as range or min.)



Features of Silicon Bronze Sheet/Plate:

1) Good to excellent corrosion resistance
2) Excellent hot and cold workability
3) Fabricated by blanking, drawing, forming and bending, heading and upsetting
4) Hot forging and pressing, roll threading and knurling, shearing, squeezing, and swaging

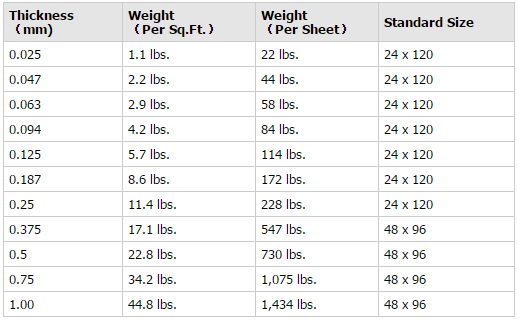

Parameters of Silicon Bronze Sheet/Plate:

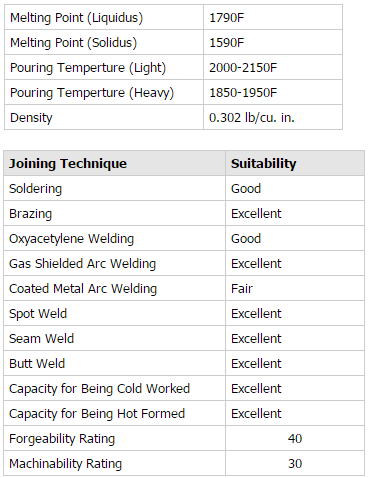

Physical Properties:

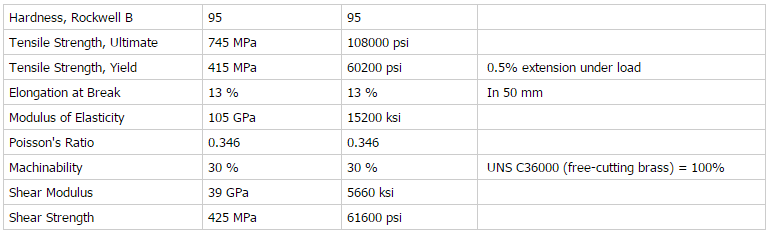

Mechanical Properties:

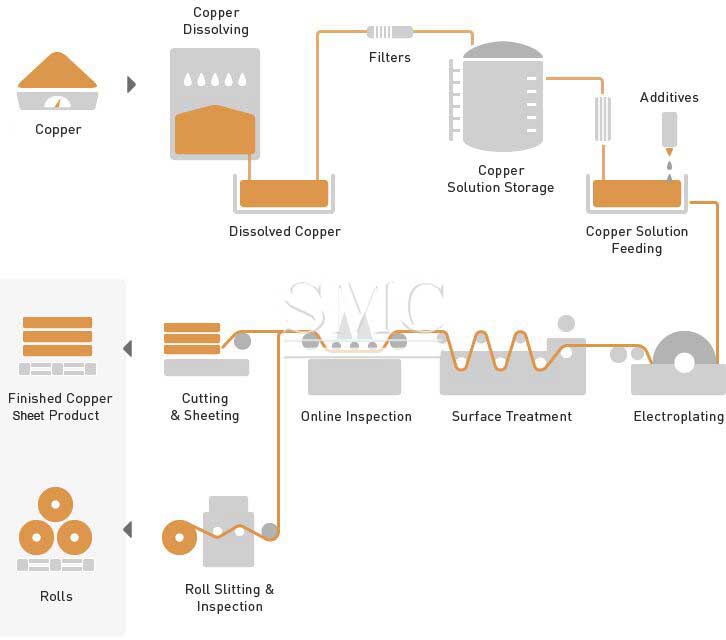

Manufacturing of Silicon Bronze Sheet/Plate

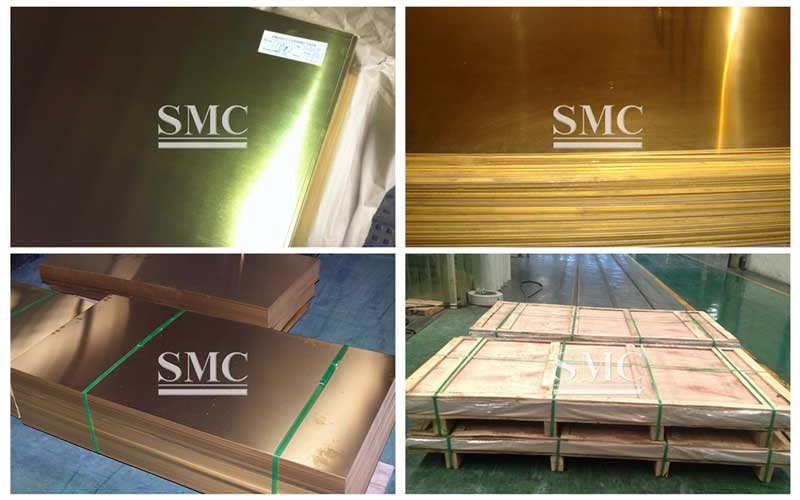

Packaging of Silicon Bronze Sheet/Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Applications of Silicon Bronze Sheet/Plate:

1) Consumer: Sculpture

2) Aircraft: Hydraulic pressure lines

3) Electrical: Pole line hardware, motors, rotor bar

4) Hardware: Bolts, burrs, butts, clamps, cotter pins, hinges, marine hardware,

nails, nuts, pole line hardware, screws

5) Industrial: Bearing plates, bushings, cable, channels, chemical equipment,

heat exchanger tubes, kettles, piston rings, tanks, rivets, screen cloth and wire, screen plates, shafting

6) Marine: Propeller shafts, hardware, propeller shafts, etc.
